11
C

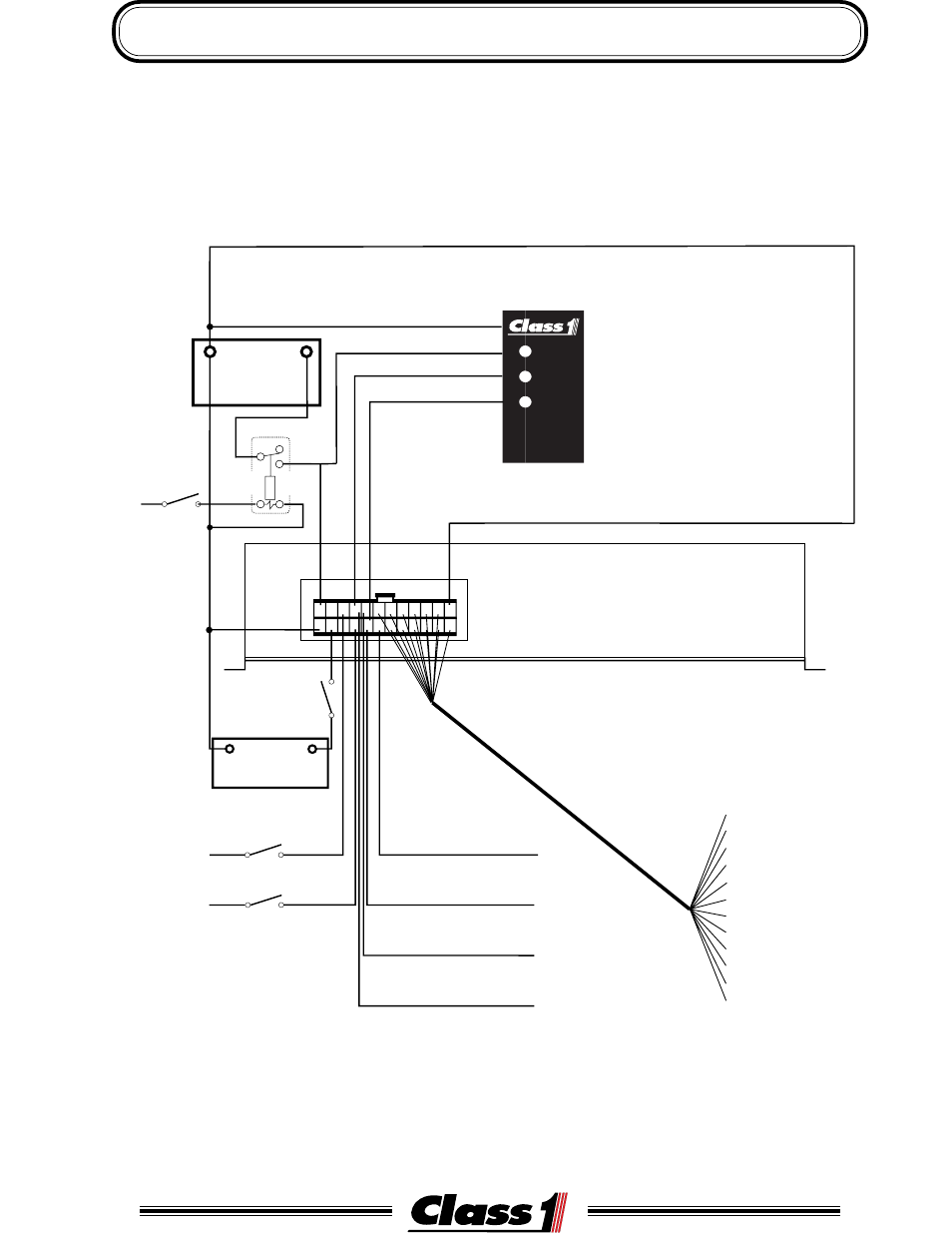

ONNECTIONS
TOTAL SYSTEM MANAGER
1 2 3 4 5 6 7 8 9 10 11 12
24 23 22 21 20 19 18 17 16 15 14 13
Low Voltage Alarm (GND)
Fast Idle (POS)
Variable Trip (POS)
Outputs
Load 1_____T-13
Load 2_____T- 2
Load 3_____T-14
Load 4_____T- 3
Load 5_____T-15
Load 6_____T- 4
Load 7_____T-16
Load 8_____T- 5
Load 9_____T-17
Load 10_____T- 6
Load 11_____T-18
Load 12_____T- 7
Master Switch
Load Manager Enable
Main Battery
Parking Brake
T-1 (GND)
T-10
T-21
NEG POS
T-24 T-12
POWER ON
FAST IDLE
LOW BATTERY
TOTAL
SYSTEM
MANAGER
Black Ground
Red Batt +
Yellow Alarm -
Brown Fast Idle +
Display Panel
Cutout size .85" x 1.5"
Overall size 1.0" x 1.75"
Aux Battery
NEG POS
T-23
Aux Battery Alarm (POS)
+ -
+ -
T-8
T-19
T-20
T-9
+
-
+
-
IGN SW
