System Configuration

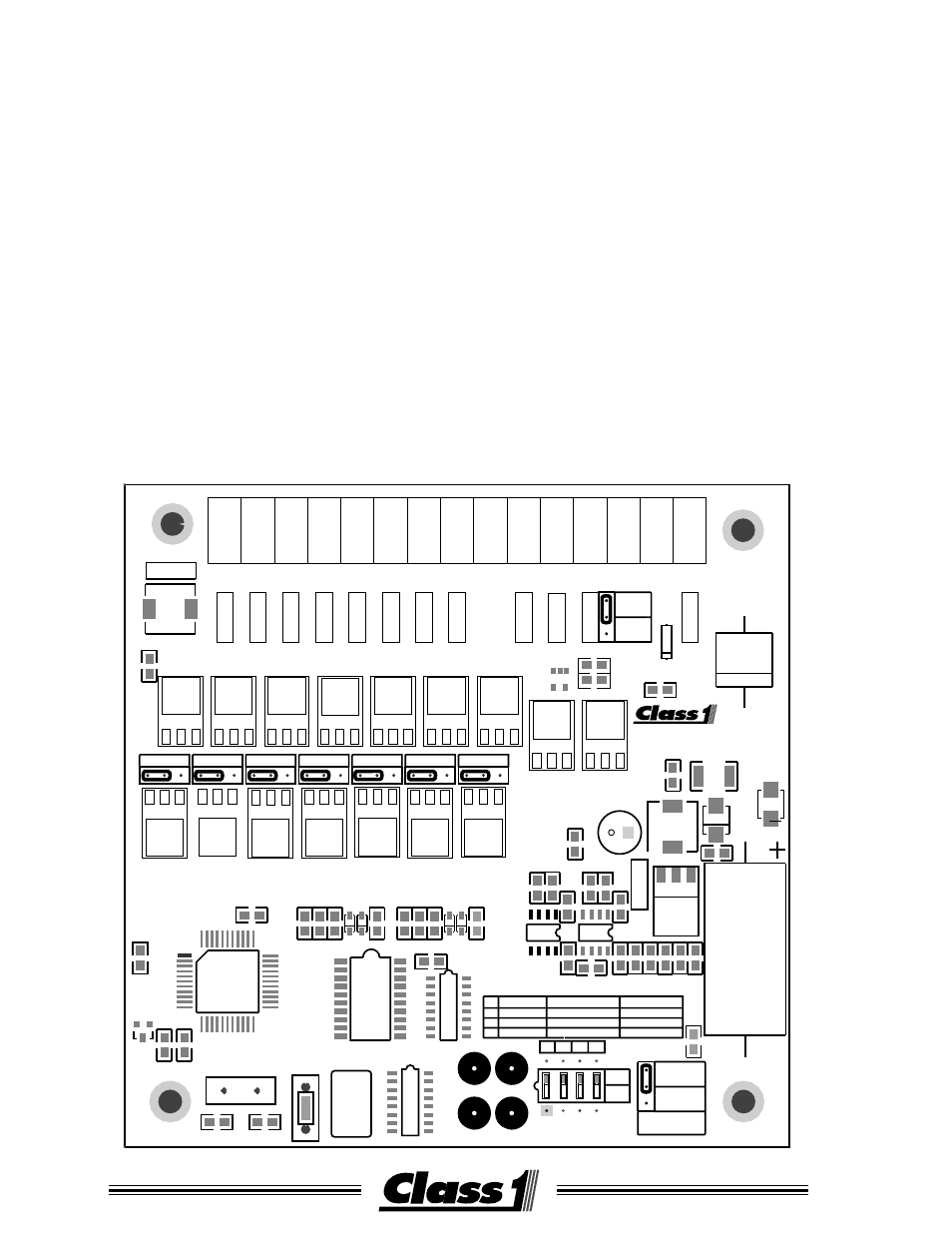

The Electrical System Manager is configured by the use of a 4 position DIP Switch SW1
and 9 shunts (jumpers) J1 - J9.
SW1
switch
OFF
ON
1
Main Battery
Main and Isolated Batteries
2
Shed T1-T7
Shed T7-T1
3
Fast Idle
Overvoltage
4
Shed all
Don’t shed T1 or T2
J1 controls polarity of the Master Switch input.
J2-J8 control the polarity of output T1 through T7
J9 controls whether T12 is tied to the Master Switch input T10 or independent for an
Isolated Battery Input.
<=-CAUTION-=>
When J9 is in the MASTER SWITCH position T12 is tied directly to T10. A direct short
circuit will occur if an Isolated Battery Input is at T12 and a ground Master Switch input
is at T10.
<=-CAUTION-=>
