AEM 30-6060 Series 2 Plug & Play EMS User Manual
Page 7
Page 7 of 12

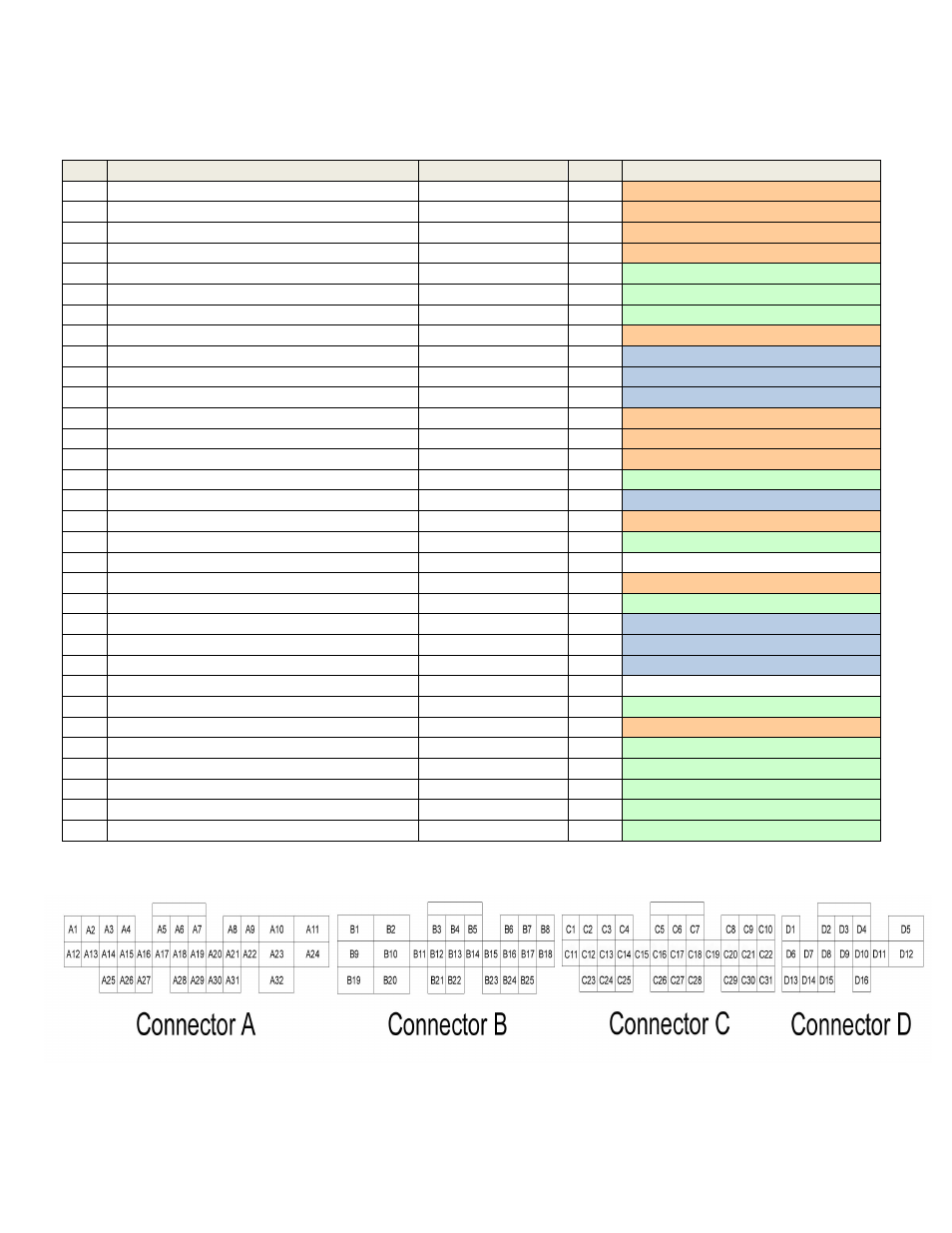

Connection Diagram for EMS P/N 30-6060
96-99 Integra, 97 2.2CL, 96-97 Accord,
96-98 Civic, 96-97 Del Sol, 96-01 Prelude
Pin #
OBD2A Honda/Acura
AEM EMS 30-6060
I/O
Availability
A1
Injector 4
Injector #4
Output
PnP for Injector 4 (1.5A max)
A2
Injector 3
Injector #3
Output
PnP for Injector 3 (1.5A max)
A3
Injector 2
Injector #2
Output
PnP for Injector 2 (1.5A max)
A4
Injector 1
Injector #1
Output
PnP for Injector 1 (1.5A max)
A5
Secondary 02 Heater Control
Low Side Driver 12
Output Available, Switched Ground, 1.5A Max
A6
Primary 02 Heater Control
Low Side Driver 2
Output Available, Switched Ground, 1.5A Max
A7
EGR Control Solenoid Valve
High Side Driver 2
Output
Avail, Switched +12V, 1.5A max
A8
VTEC Solenoid Valve
High Side Driver 1
Output
PnP for VTEC Solenoid
A9
Power Ground
Power Ground
Both
Dedicated
A10
Power Ground
Power Ground
Both
Dedicated
A11
Power Source 1
+12V Switched
Both
Dedicated
A12
Idle Air Control Valve (IACV)
PW 1
Output
PnP for Idle Air Control
A13
IACV N (D16Y7 Only)
PW 1i
Output
PnP for Idle Air Control (Rotary Type)
A14
IACV P (D16Y7 Only)
PW 1
Output
PnP for Idle Air Control (Rotary Type)
A15
EVAP Purge Control Solenoid
Low Side Driver 4
Output Available, Switched Ground, 1.5A Max
A16
Fuel Pump Relay
Low Side Driver 11
Output
Dedicated
A17
A/C Clutch Switch
Low Side Driver 6
Output
PnP for A/C Clutch Switch
A18
Malfunction Indicator Light
Low Side Driver 10
Output Available, Switched Ground, 1.5A Max
A19
Alternator Control
---
---
---
A20
Ignition Control Module
Coil 1
Output
PnP for Ignition Control Module
A21
---
Knock 2
Input
Avail, Knock Input
A22
Power Ground
Power Ground
Output
Dedicated
A23
Power Ground 2
Power Ground
Input
Dedicated
A24
Power Source 2
+12V Switched
Input
Dedicated
A25
---
---
---
---
A26
Intake Air Bypass Solenoid
High Side Driver 3
Output
Avail, Switched +12V, 1.5A max
A27
Radiator Fan Control
Low Side Driver 8
Output
PnP for Radiator Fan 1
A28
EVAP Bypass Solenoid Valve
Low Side Driver 3
Output Available, Switched Ground, 1.5A Max
A29
EVAP Control Canister Vent Shut
Low Side Driver 5
Output Available, Switched Ground, 1.5A Max
A30
Shift Up Indicator
Low Side Driver 1
Output Available, Switched Ground, 1.5A Max
A31
---
EGT 2
Input
Avail, jumper set for 0-5V Input
A32
---
Injector 9
Output
Available, Injector Ground, 1.5A Max
