Use the 5/8” Wrench on the bolt head and the 11/16” Deep Socket
to tighten the nut. It’s going to be a little tight, but is easy once
you’re positioned correctly.
Step 8 – Install the last two 7/16-20 Grade 8 bolts on each brackets with
Lock Washers & Flat Washers and the Weldnut Tabs. Weldnut Tabs
are placed up inside the square tube that is attached vertically to
the vehicles’ frame.
(See Figure 5)
Step 9 – Plug in factory fog lights again. Tighten all 7/16-20 Bolts to 78 ft/lb torque and recheck
other bolts for tightness.
Optional Winch Installation
Step 1 – Bolt on Fairlead supplied with winch, to the Winch Plate supplied with Bumper. Tighten
Bolts
Step 2 – Mount Winch and Winch Plate onto Bumper using supplied hardware with winch.
Step 4 – Tighten all Winch Bolts to manufacturers torque specifications.
Now you’re ready for the ROCKS!!

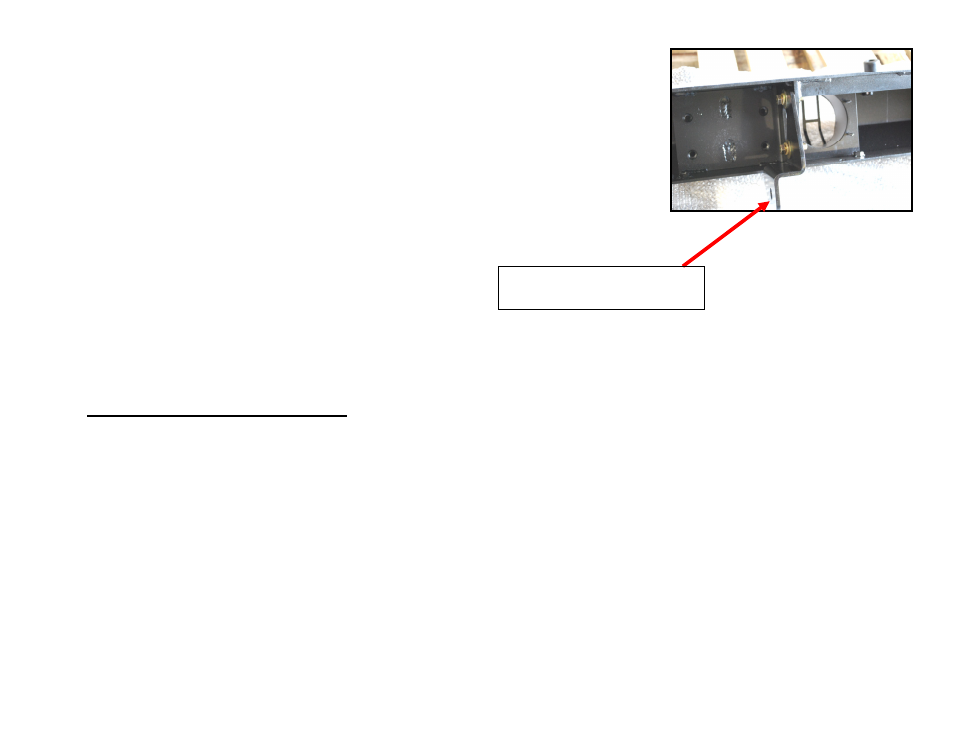

Figure
4
Figure 5
7/16-20 Bolt is inserted through
opposite side of this hole.
