GrimmSpeed Mazdaspeed Electronic Boost Controller User Manual
Page 6
G
rimm
s
peed
6

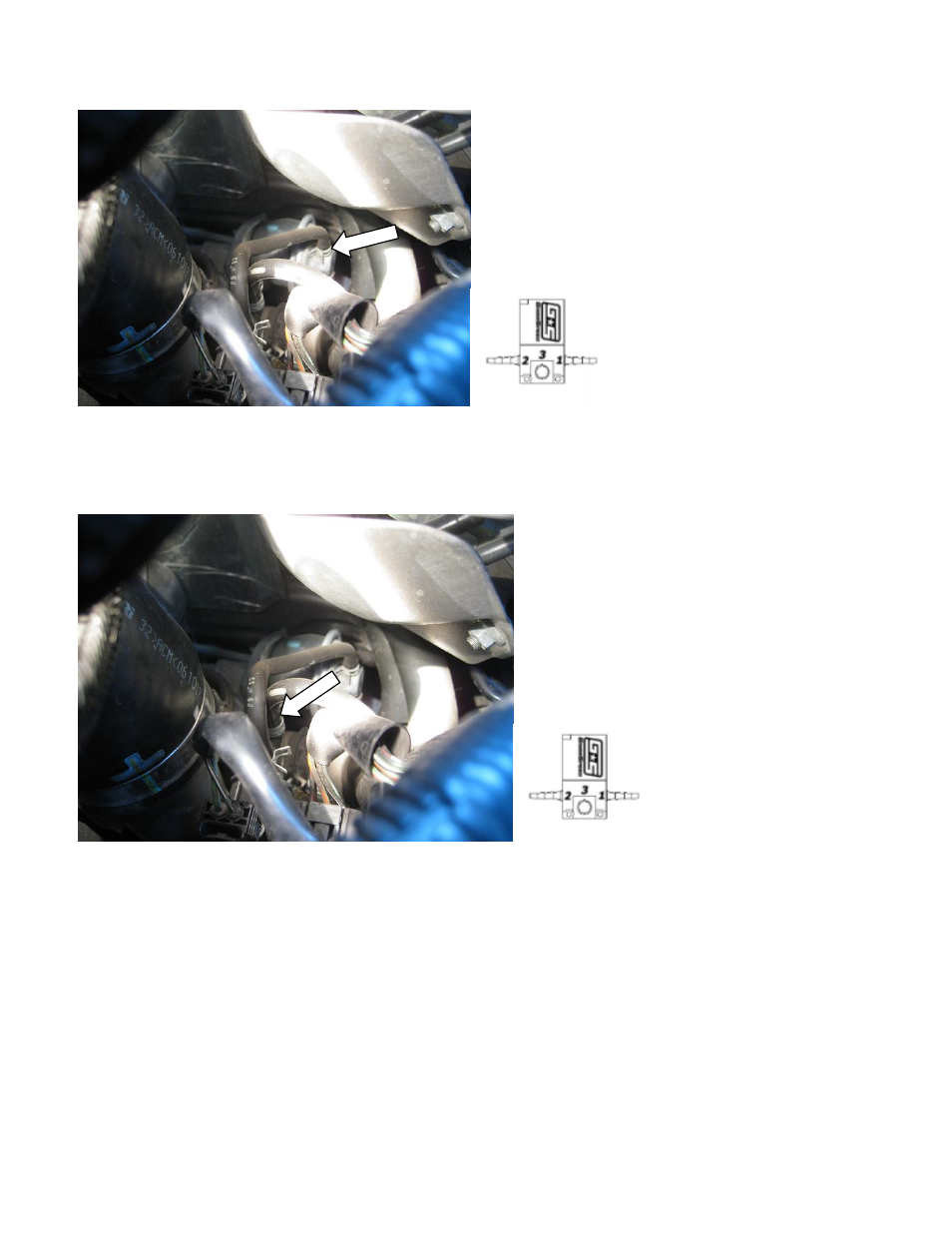

10. Hook up vacuum lines. Port 1 on the GrimmSpeed BCS will connect to a high pressure
boost source. Connect the 4mm (smaller) vacuum line from the wastegate to Port 1 of the
BCS.
11. Port 2 on the BCS connects to the turbo inlet. If you prefer, use the included vacuum line
to run a new 4mm line from the inlet to Port 2 on the BCS. It is recommended that a plastic
zip tie is used to secure vacuum lines.
