GrimmSpeed Alternator Cover User Manual
Page 3
Short Bolt Small Washer Cover Short Standoff Large Washer Factory Bracket Nut
Get the nut started, but do not tighten all the way, you’ll want to be able to
move it around. If your vehicle doesn’t have this bracket, you’ll need to install
it at this time!

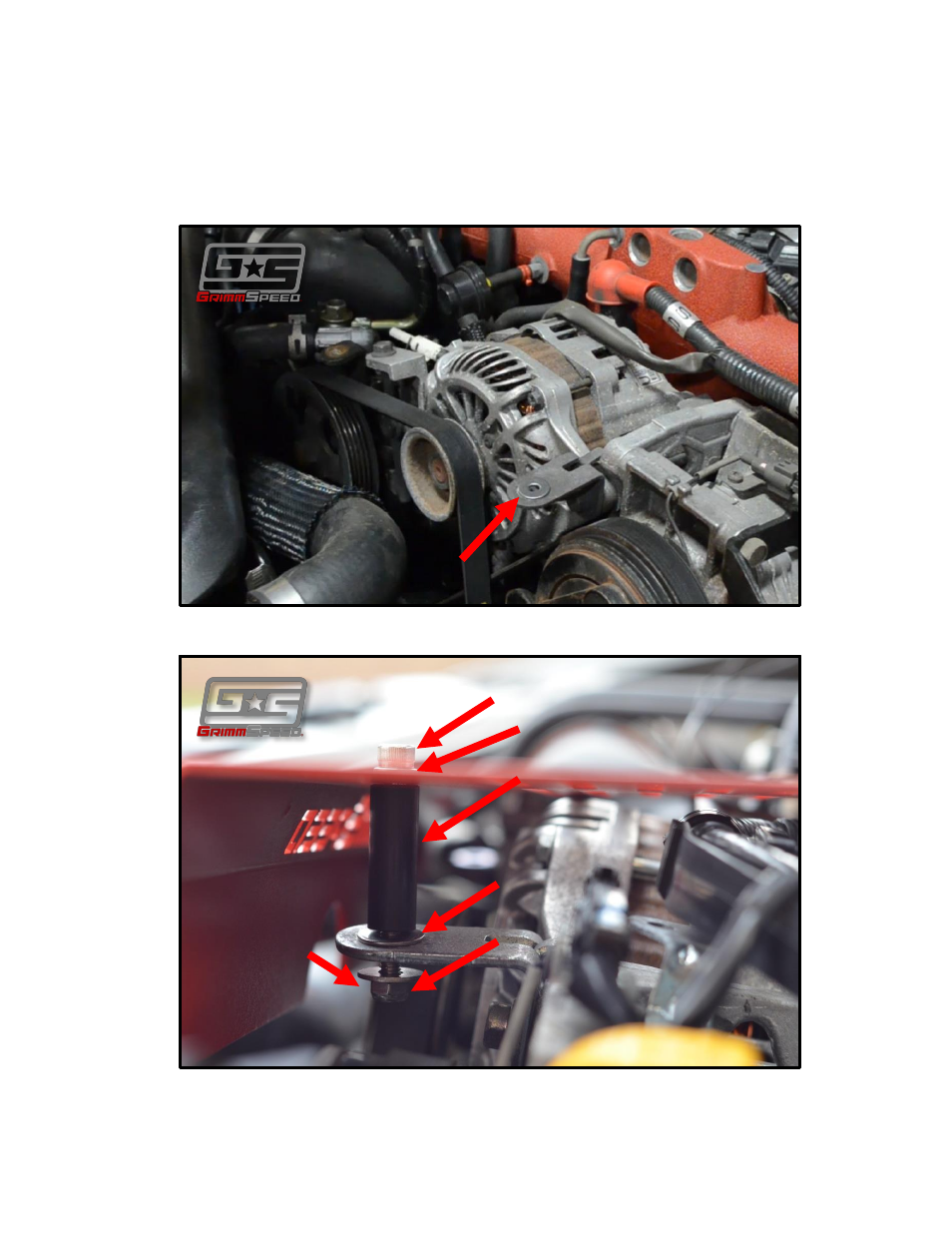

Figure 4: Place larger washer
Figure 5: Assemble Driver’s Side
Place Large Washer
Short Standoff
Short Bolt
Large Washer
10mm Nut
Large Washer
Small Washer
