Remove 12mm fender bolt ½ in ball studs – GrimmSpeed 02-07 WRX/STi/Impreza Hood Struts User Manual
Page 3

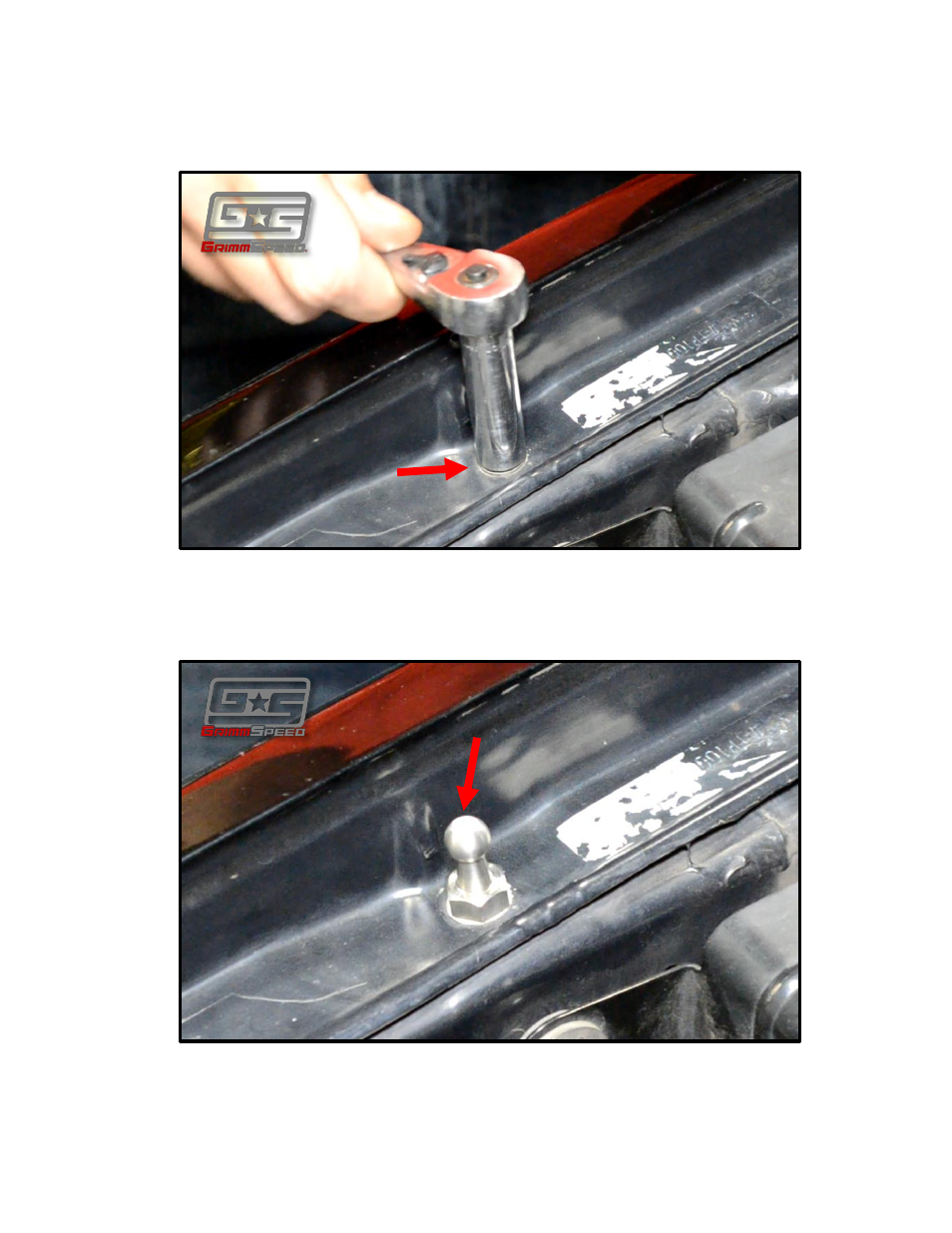

5. Now we’ll begin remove the 12mm fender bolt that’s just forward of the strut
tower on each side. We won’t be reusing this bolt, so put it someplace safe.
Figure 4: Remove fender bolts
6. Next, install the stainless steel ball studs into these holes. Tighten them snug
with a 1/2in wrench, but do not over-tighten.
Figure 5: Install ball studs
Remove 12mm
Fender Bolt
½ in ball studs
