6. The final step is installation of the assembled shroud. Set the shroud in place,
making sure that the bushings are properly capturing the posts on your
radiator. Reinstall the two (2) 12mm bolts, using the slotted holes to both
make sure that your radiator is spaced to your liking and also to ensure that
your shroud is straight. NOTE: Depending on how you have your radiator
hose clamp oriented, some adjustment may be necessary for tool tray
clearance. Simply loosen the clamp and spin it out of the way before
tightening it again.

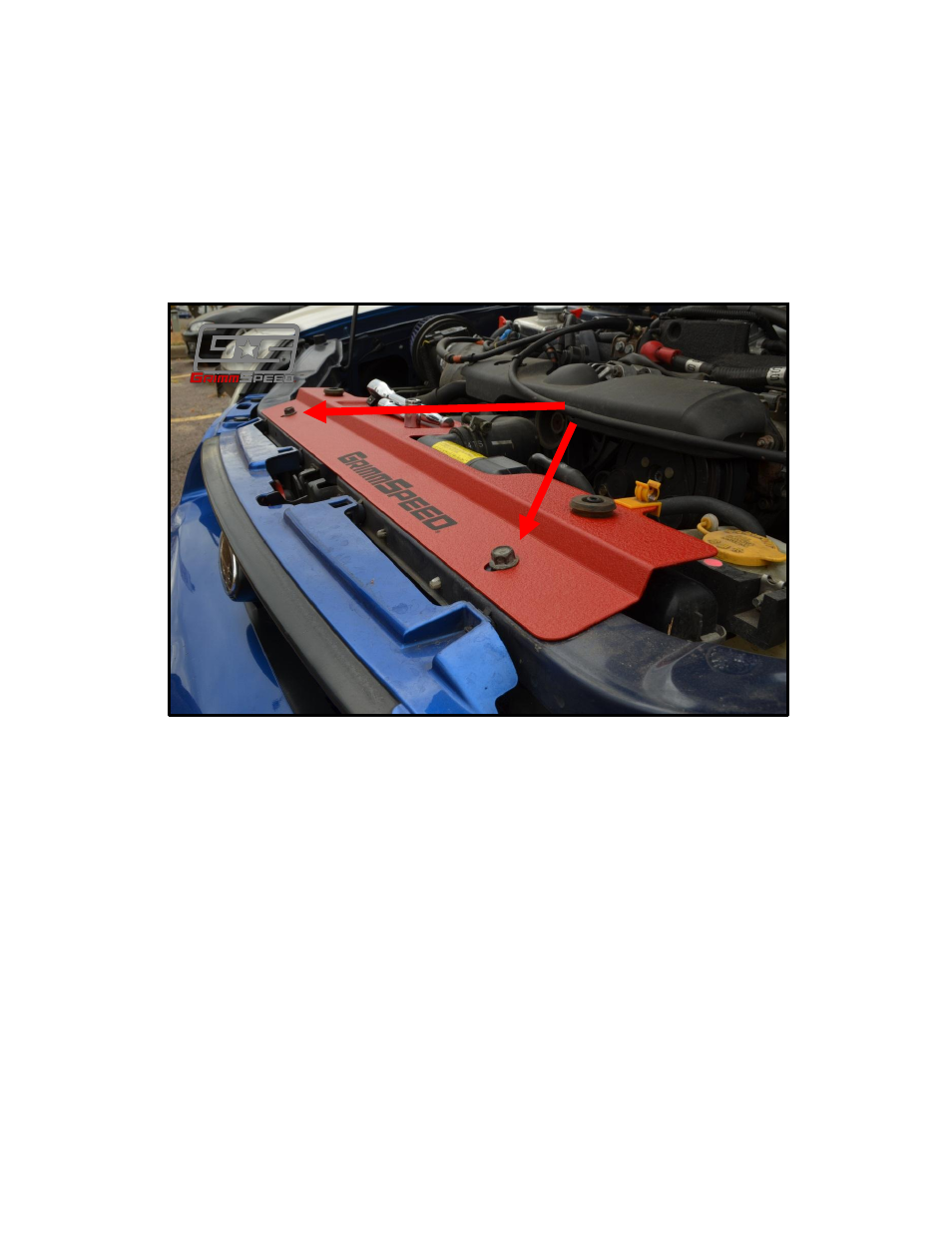

Figure 9: Installing radiator shroud
That’s it! Now find something fun to put in your tool tray and send us photos! We’ll
share our favorites on Facebook!
Reinstall 12mm
bolts
