Remove rubber bushing remove this bolt – GrimmSpeed 02-07 WRX Radiator Shroud User Manual
Page 4

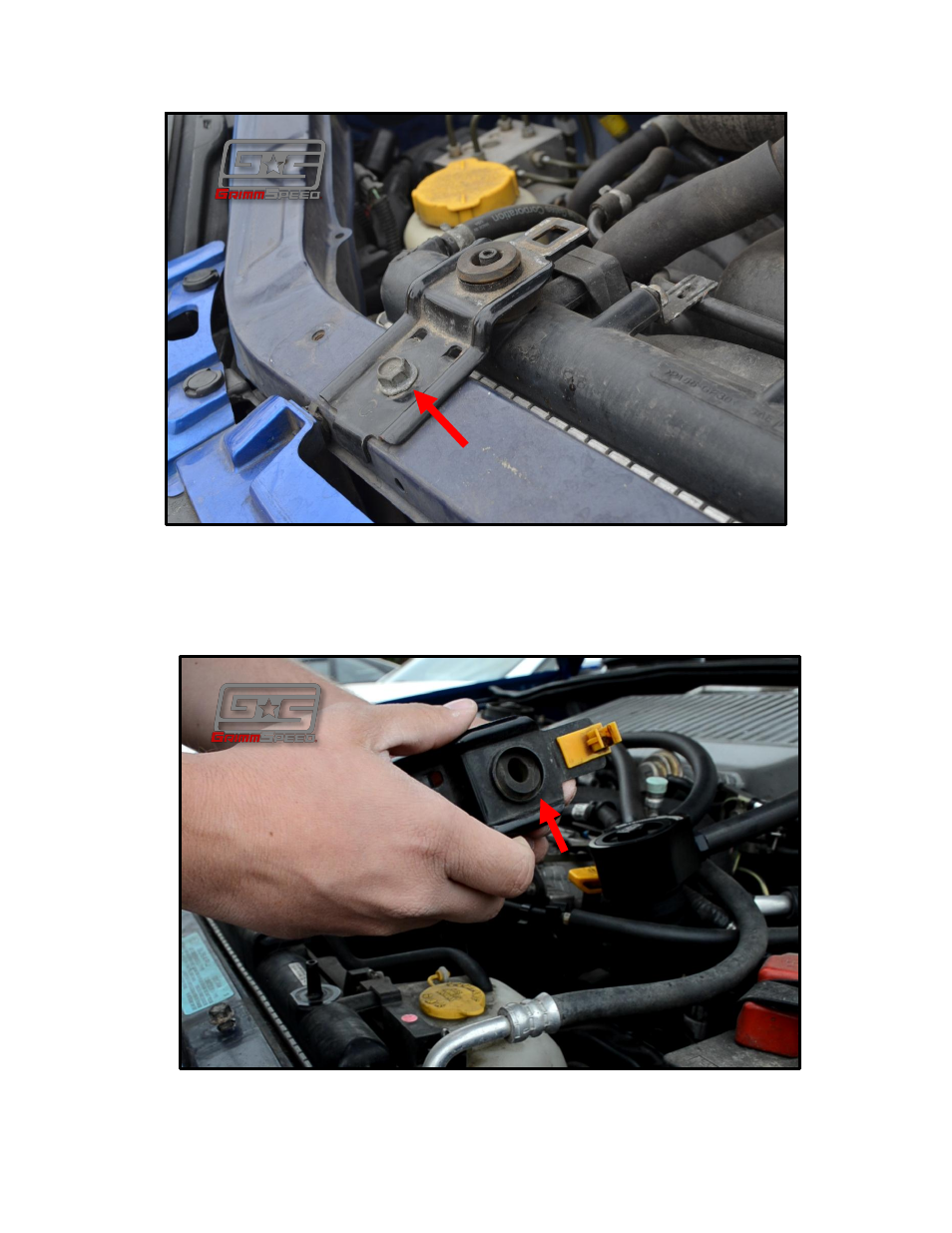

Figure 4: Remove OEM radiator stay brackets
4. Next, pop the black rubber bushings out of each of the brackets that you just
removed. Also remove the hood prop holder (02-07 only). You will reuse
each of these three (3) parts in the installation of your new radiator shroud.
Figure 5: Removing rubber bushings
Remove rubber
bushing
Remove this bolt
