184 Model 10042 Rev. 11/03
Specifications
With Standard 17.5 - 25 Tires:
(A) Length (less forks) ...................................... 225.25 inches (5.721 mm)
(B) Width (outriggers up) ....................................... 102 inches (2.591 mm)
(C) Width (outriggers down) ............................. 156.75 inches (3.981 mm)
(D) Height ........................................................... 100.1 inches (2.543 mm)
(E) Wheelbase.................................................... 119.5 inches (3.035 mm)
(F) Ground Clearance ................................................ 18 inches (457 mm)
(G) Tread Center ................................................ 84.25 inches (2.140 mm)
(H) Turning Clearance .......................................... 182 inches (4,6 meters)
(J) Maximum Lift Height ..........................42 feet 1.5 inches (12,8 meters)
(K) Max. Forward Reach ..............................26 feet 6 inches (8,1 meters)

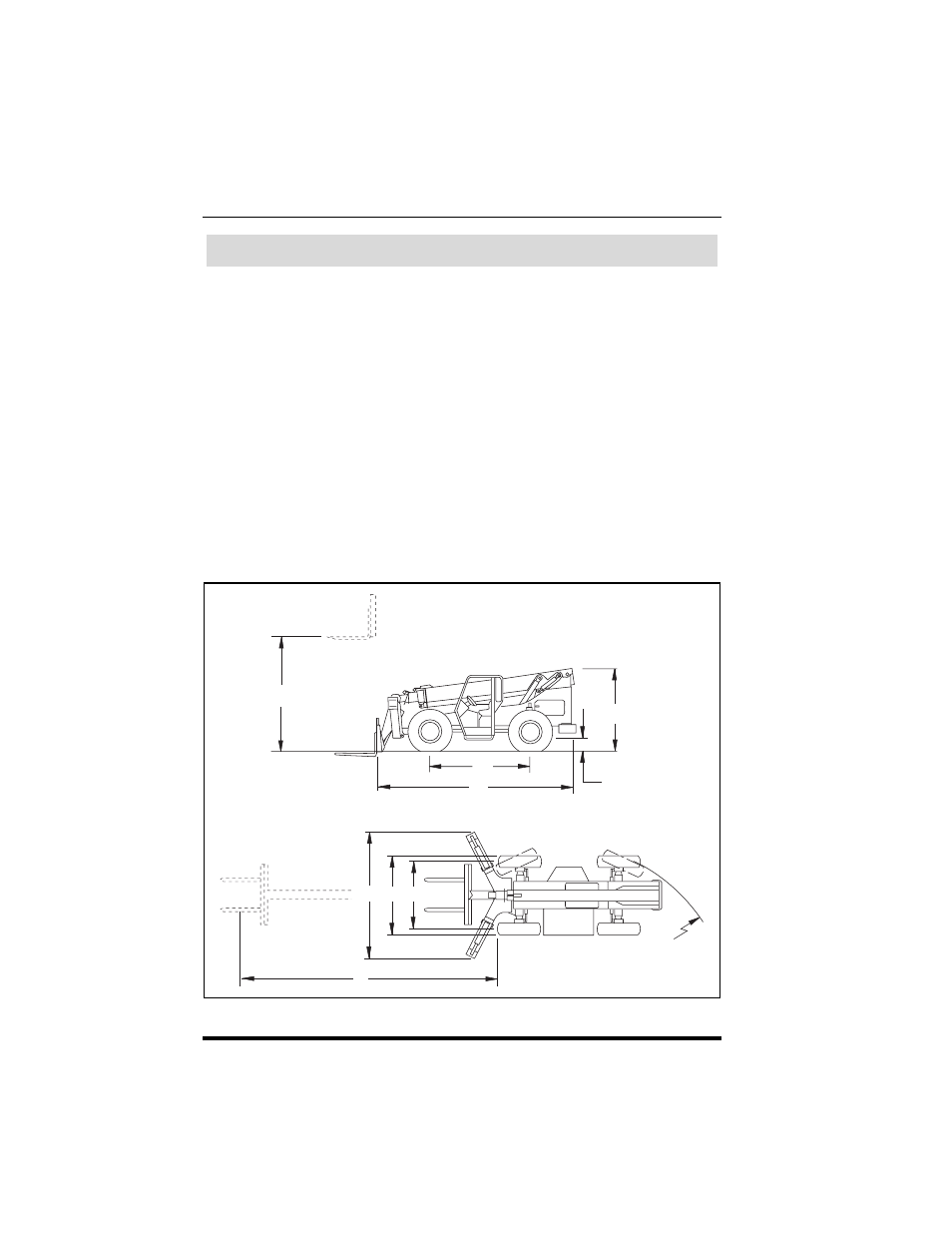

Vehicle Dimensions
OH3510
F
G
H
J
K
B C
D
E
A
