lubrication points, A. carriage pivot pins (2 points), B. attachment tilt cylinder pins (2 points) – SkyTrak 10042 Operation Manual User Manual

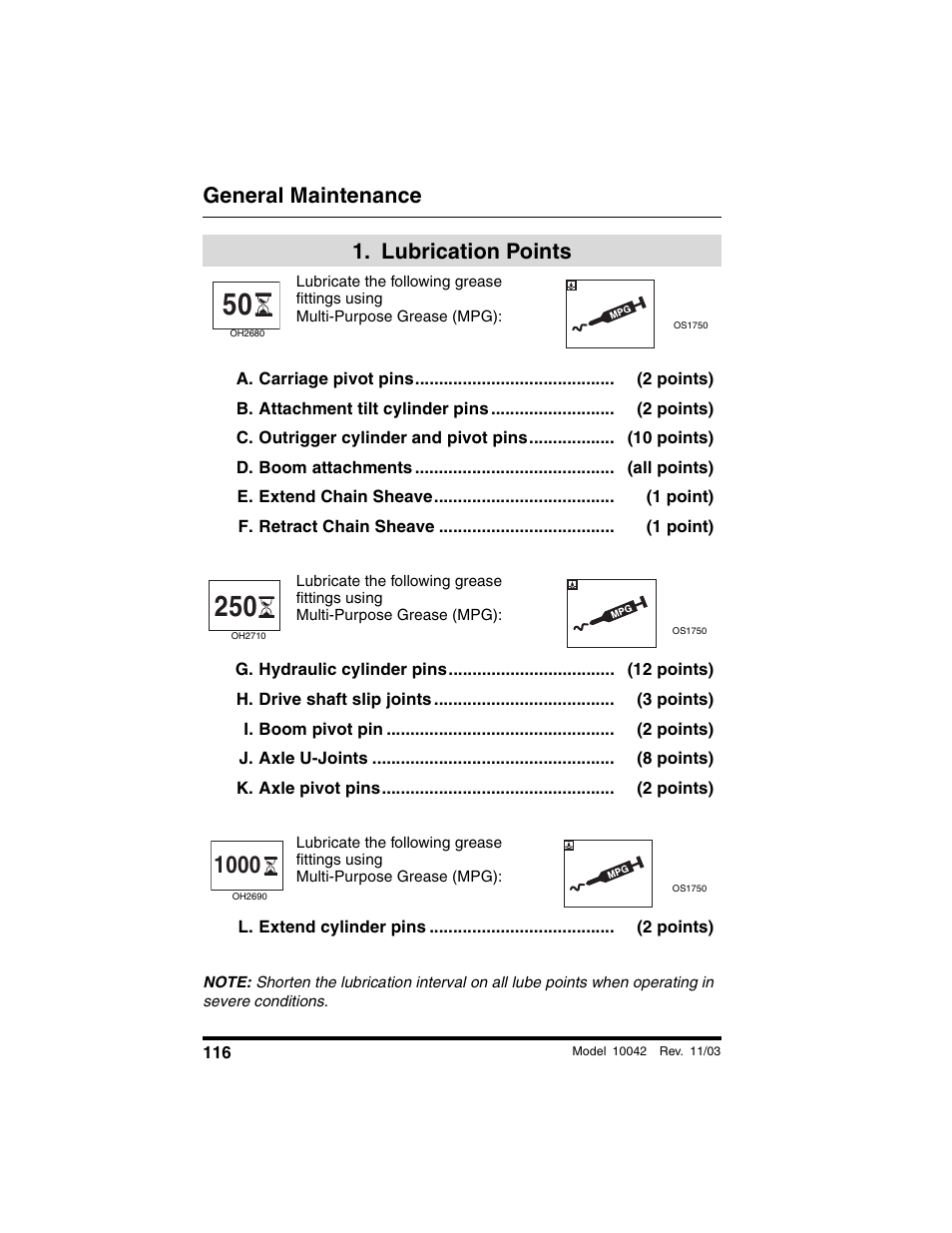

Page 118: C. outrigger cylinder and pivot pins (10 points), D. boom attachments (all points), E. extend chain sheave (1 point), F. retract chain sheave (1 point), G. hydraulic cylinder pins (12 points), H. drive shaft slip joints (3 points), I. boom pivot pin (2 points)
lubrication points, A. carriage pivot pins (2 points), B. attachment tilt cylinder pins (2 points) | C. outrigger cylinder and pivot pins (10 points), D. boom attachments (all points), E. extend chain sheave (1 point), F. retract chain sheave (1 point), G. hydraulic cylinder pins (12 points), H. drive shaft slip joints (3 points), I. boom pivot pin (2 points) | SkyTrak 10042 Operation Manual User Manual | Page 118 / 196
