12.3 AT45 SCPI Command Extension Summary

Keyword

Parameter

Comments

:PULSe [1 / 2 / n]

Subsystem. Contains commands to control the output pulse
generation. Valid suffix range depends on the number of
channels (ChA = 1, ChB = 2, etc.). Command without suffix
refers to the currently selected logical instrument. See
INSTrument subsystem.

:OUTPut

Subsystem. Contains command to control output mode.

:MODe

HIZ / LOZ

Selects output Amplitude mode: High Impedance or Low
Impedance

:AMP

4 V to 45 V

Sets adjustable output level.

:MERRor

Command clears the last module error to allow the unit to
generate pulses again. Query returns the last displayed error.

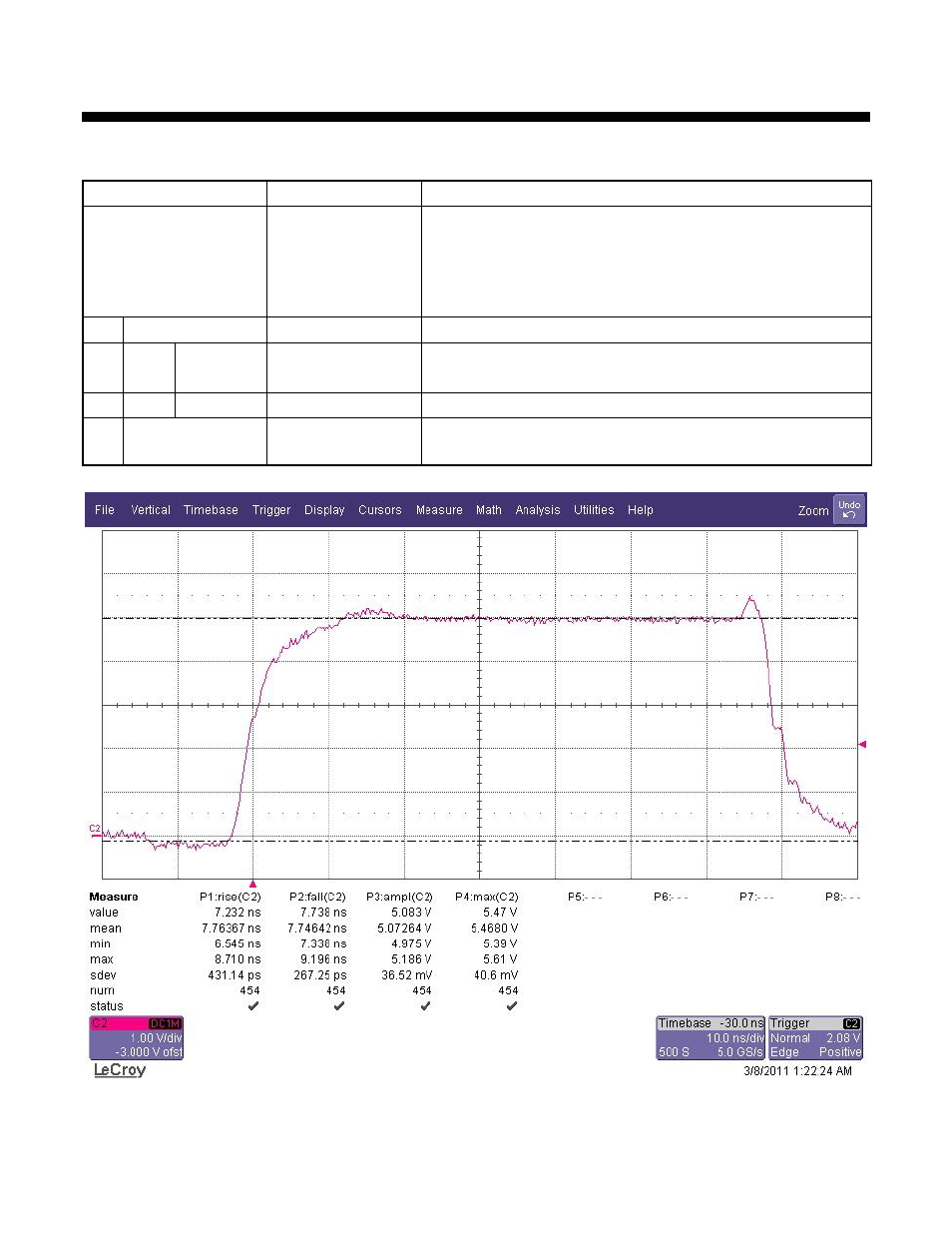

High Z Load at 5 V
