14
1154915C-it,en,fr.doc - 15/10/2003

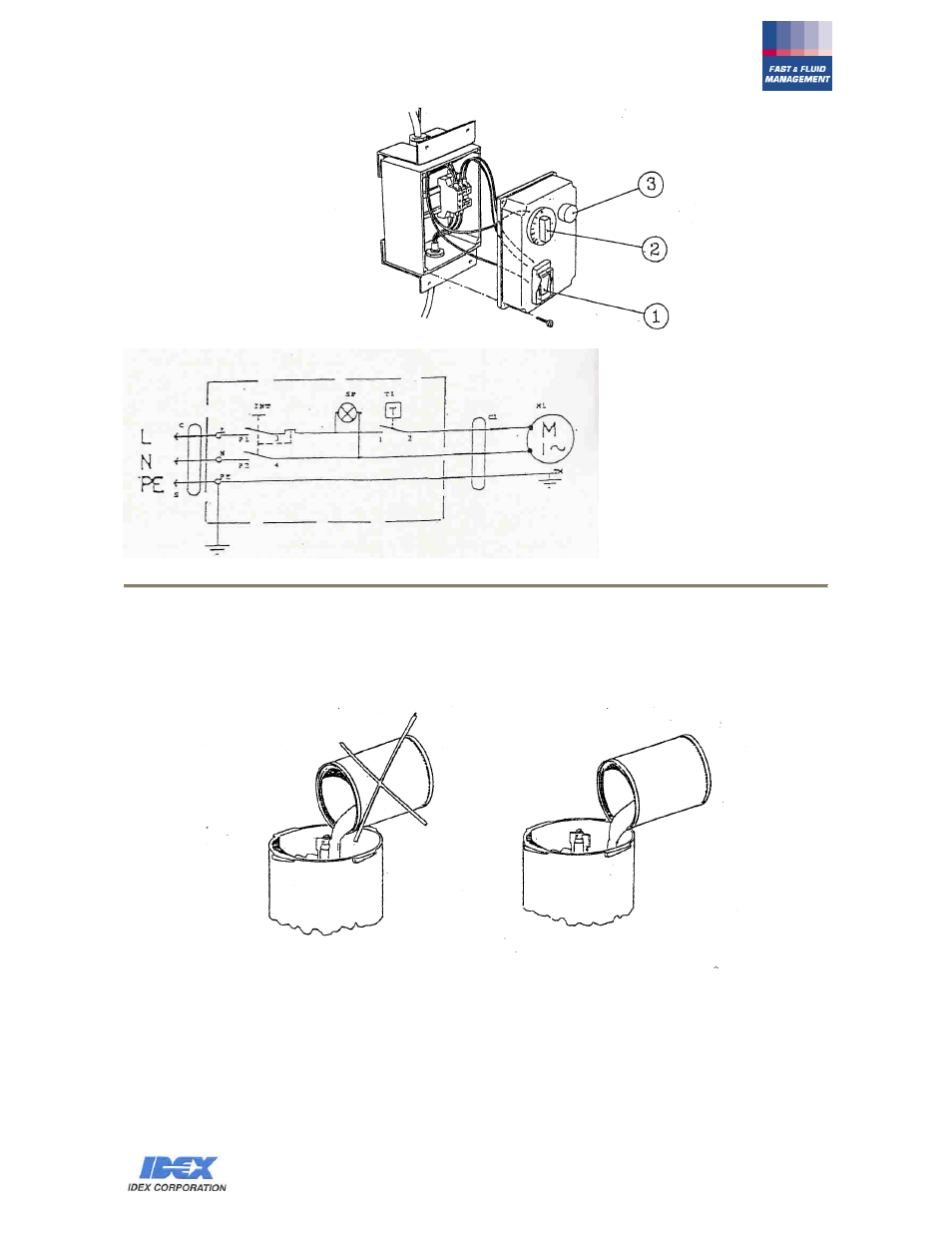

DIAGRAM 4
6.- LOADING AND WORKING
Fill the canisters with the paint, following the instructions of the producers (formula).
During this phase pay particular attention, not to dirty the stirring shaft and the external parts of the
machine. (DIAGRAM 5).
DIAGRAM 5
Put the lids (1) onto the canisters (2), twist clockwise to fit and tighten the locking screw (3) with the
allen key provided (4). (DIAGRAM 6)
