1.- INTRODUCTION
Giotto manual dispenser is a product particularly developed for dosing the colourants for building
paints, some of its parts are particularly precise to guarantee dosing results in compliance with the
standard of the most important producers.
The base unit is the fluid ounce Y = 29.58 cc or the hybrid system Y = 31.23 cc.
The single dosing unit is composed of two coaxial indipendent pumps, the external one is able to
dose 5/6 ounces with a complete stroke, the internal one is able to dose 1 ounce if the division is 1/48
or 1/4 of ounce if the division is 1/192 or 1/64.
It is important to follow the installation, user and maintenance instructions mentioned in this manual
to obtain constantly excellent dosing results.
2.- PACKAGING

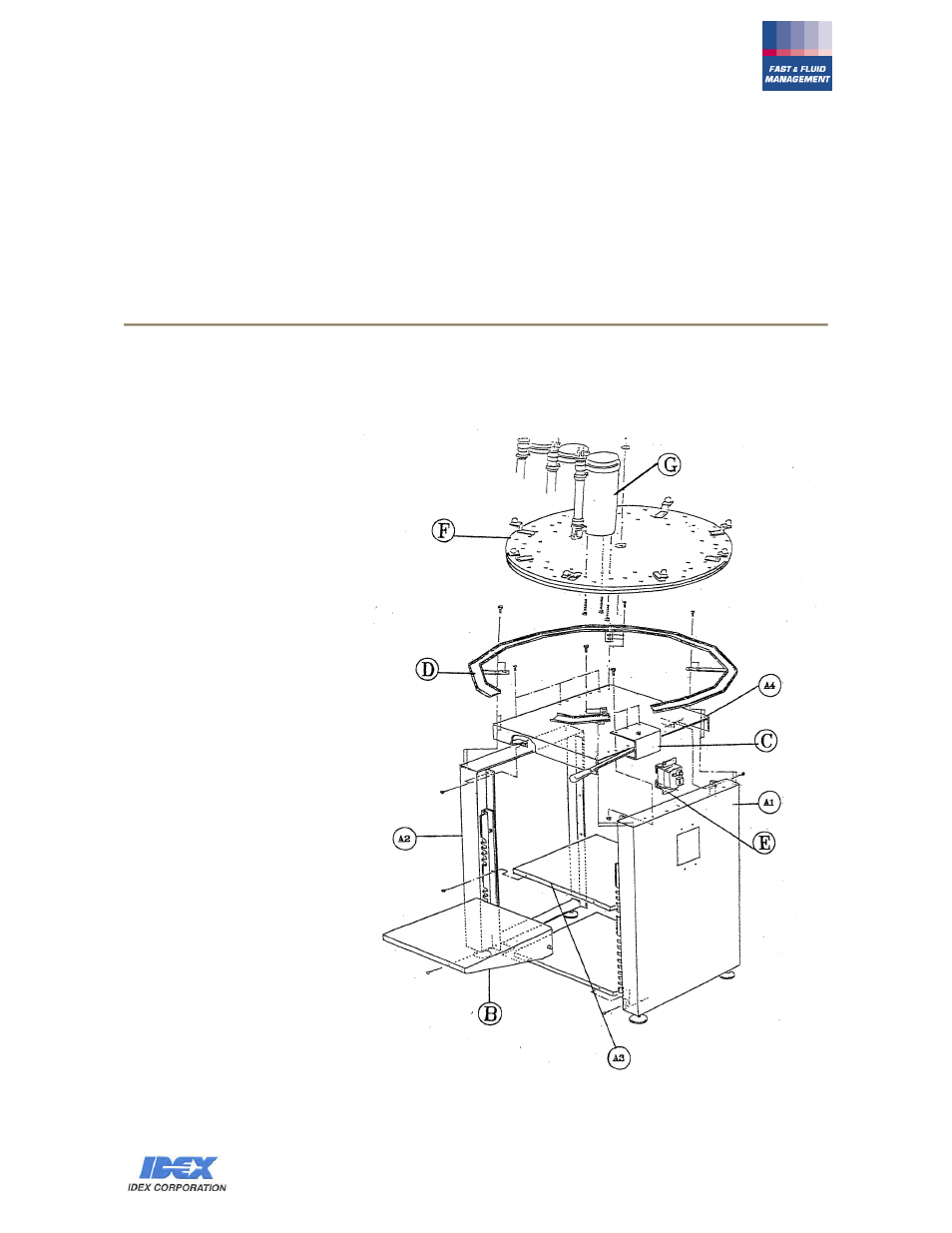

In the pakaging of the " GIOTTO MANUAL DOSING SYSTEM" you will find the following components
(DIAGRAM 1)
A) Body (5 pieces)
A1) -right side
A2) - left side
A3) - N. 2 shelves
A4) -intermediate shelf
B) Shelf
C) Blocking device to
assemble on the shelf
D) Drip tray to assemble on
the shelf
E) Electrical device to
assemble on the side
panel
F) Turning table
G) Boxes containing
canisters
(*) Packet containing
screws and small parts
(*) Installation manual
DIAGRAM 1
