Fitting instructions# 3781218

FITTING BULL BAR TO VEHICLE

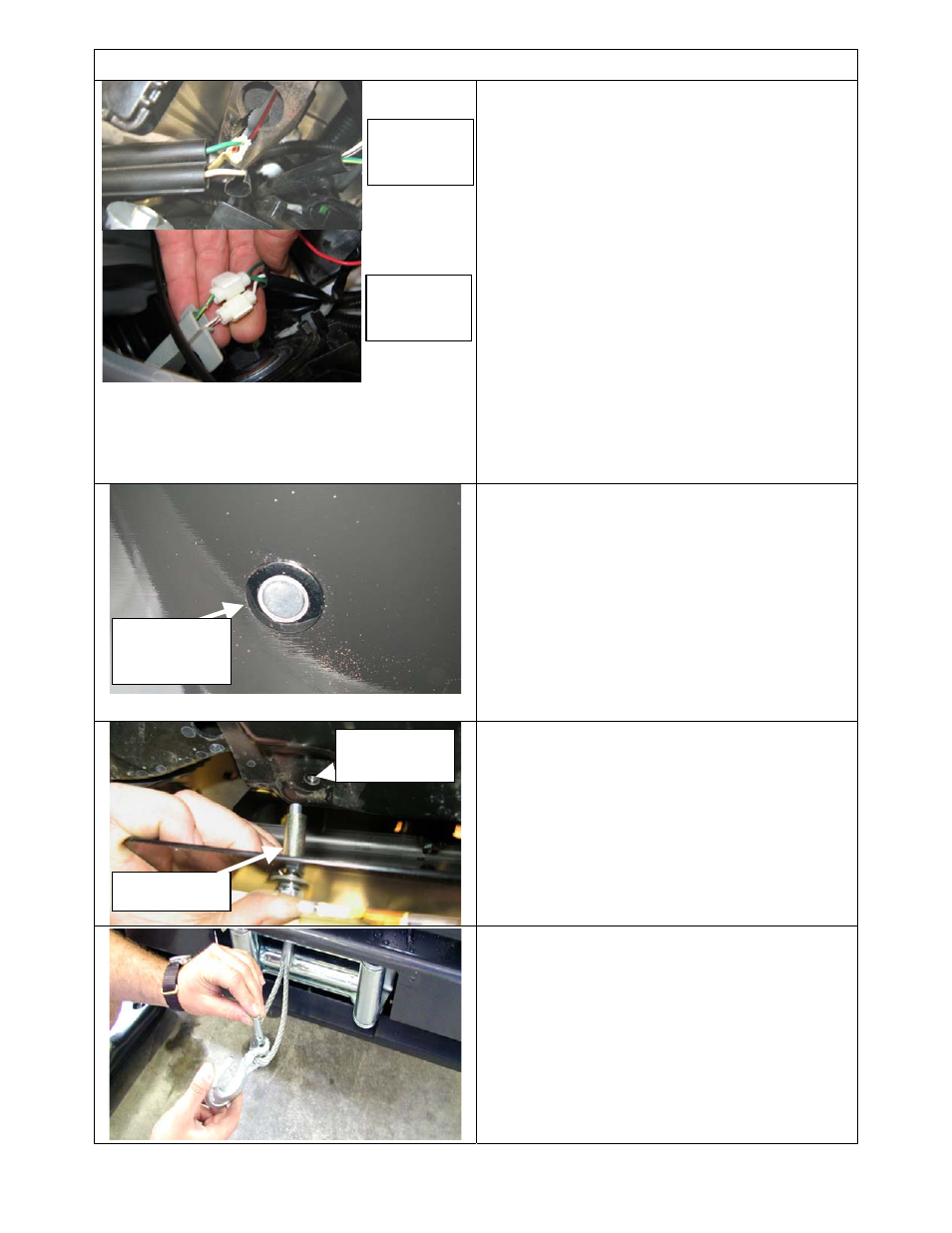

92. Wire up indicators and parking lamps.

93. Connect red wire from supplied loom to

green wire from running (parker) lamp.
Connect black wire from supplied loom to
green/yellow indicator wire. Connect
green loom wire to white/black indicator
wire.

94. Use supplied scotch locks for the

electrical connections then secure wiring
with cable ties when complete.

HINT: Temporarily undo the battery clamps and
move batteries sideways to gain better access.

95. Wire up P# 6821201 ARB fog lamps if

fitted.

NOTE: For GXL use ARB Loom MD02 plus
switch, for VX and Sahara no extra loom or
switching is required. Supplied tails can be joined
to OE loom which is run through bull bar.

96. If parking sensors to be fitted, insert

sleeves first noting that they must be in
the same orientation as in the original
bumper (tab to top RHS down on LHS).

97. Fit sensors checking that they are not too

tight, otherwise correct operation may be
affected (if tight check hole size and
rectify as necessary)

98. Connect to main loom and cable tie wiring

securely

99. Fit stone tray using 4 x M6 bolts and

washer sets at front under bull bar and 2 x
M6 x 40 bolts, washers and 18mm long
tube spacers at two locations into existing
sump guard front section as shown.

100. Fit off winch hook.

Spacer tube

Running
lamp wiring

Indicator
lamp wiring

M6 thread in
vehicle tray

Check that
sensor fits
flush
