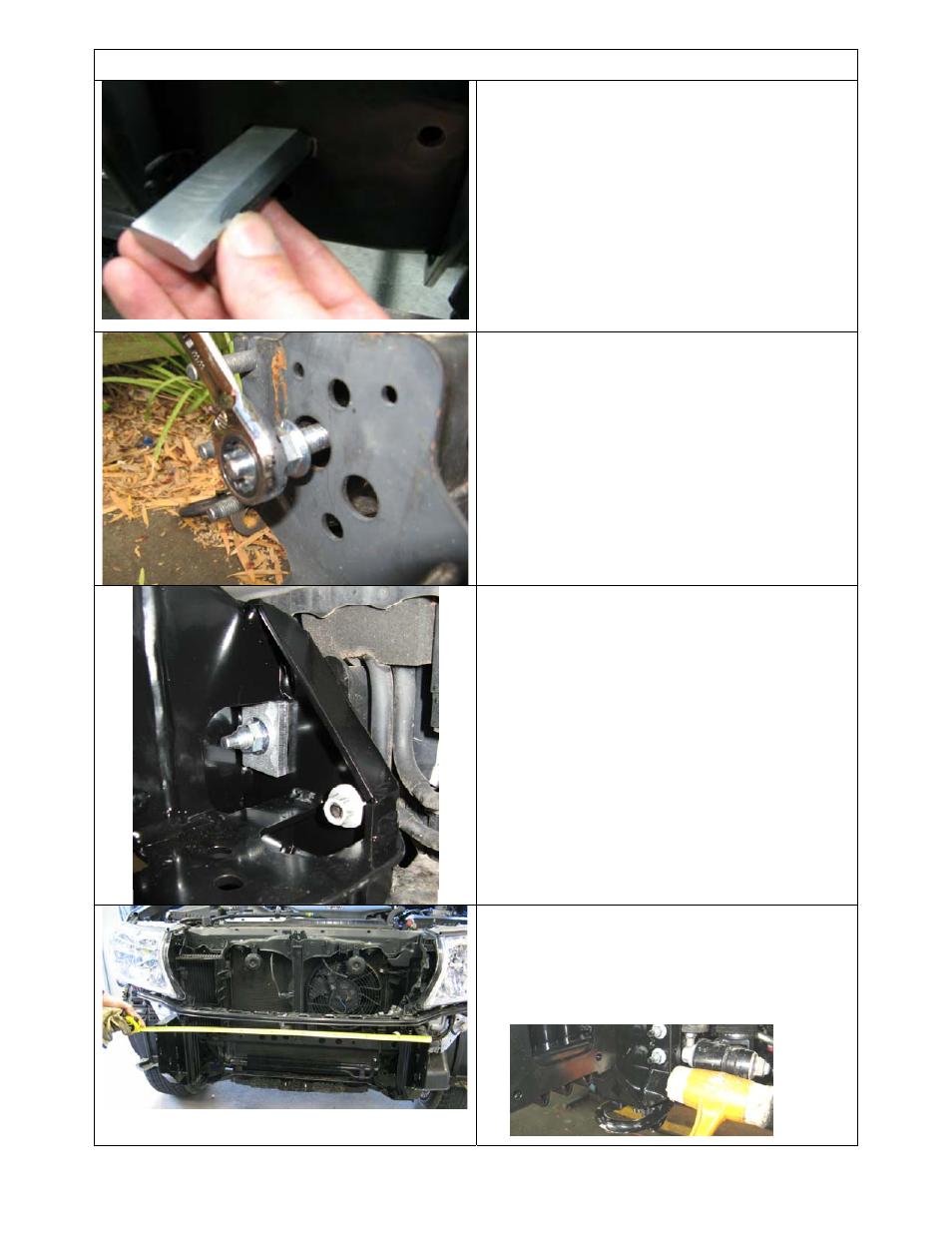

FITTING MOUNT BRACKETS
Packers are supplied to compensate for
body to chassis variation if required
71. Insert clevis nut into rectangular hole in
the inboard face of chassis, ensuring the
threaded end is inserted first.
The nut when fitted correctly should fit
square and locate into the chassis rail.
72. Install the clevis stud by fitting 2 nuts to
the end of the stud and tightening until
thread bottoms out.
73. Remove nuts and repeat for the LHS.
74. Loosely fit the mounting brackets to the
chassis securing with the 8mm packers
and flange nuts.
75. Secure using existing OE M10 flange
nuts, but do not do up tight
.
76. Tap the outer flange of the mount
brackets until they are hard up against the
tow hook mount area. Nip up the lowest
outboard nut on each bracket. Brackets
should be about 935mm apart
