Fitting instructions# 3781218

IF FITTING BUFFERS ONLY

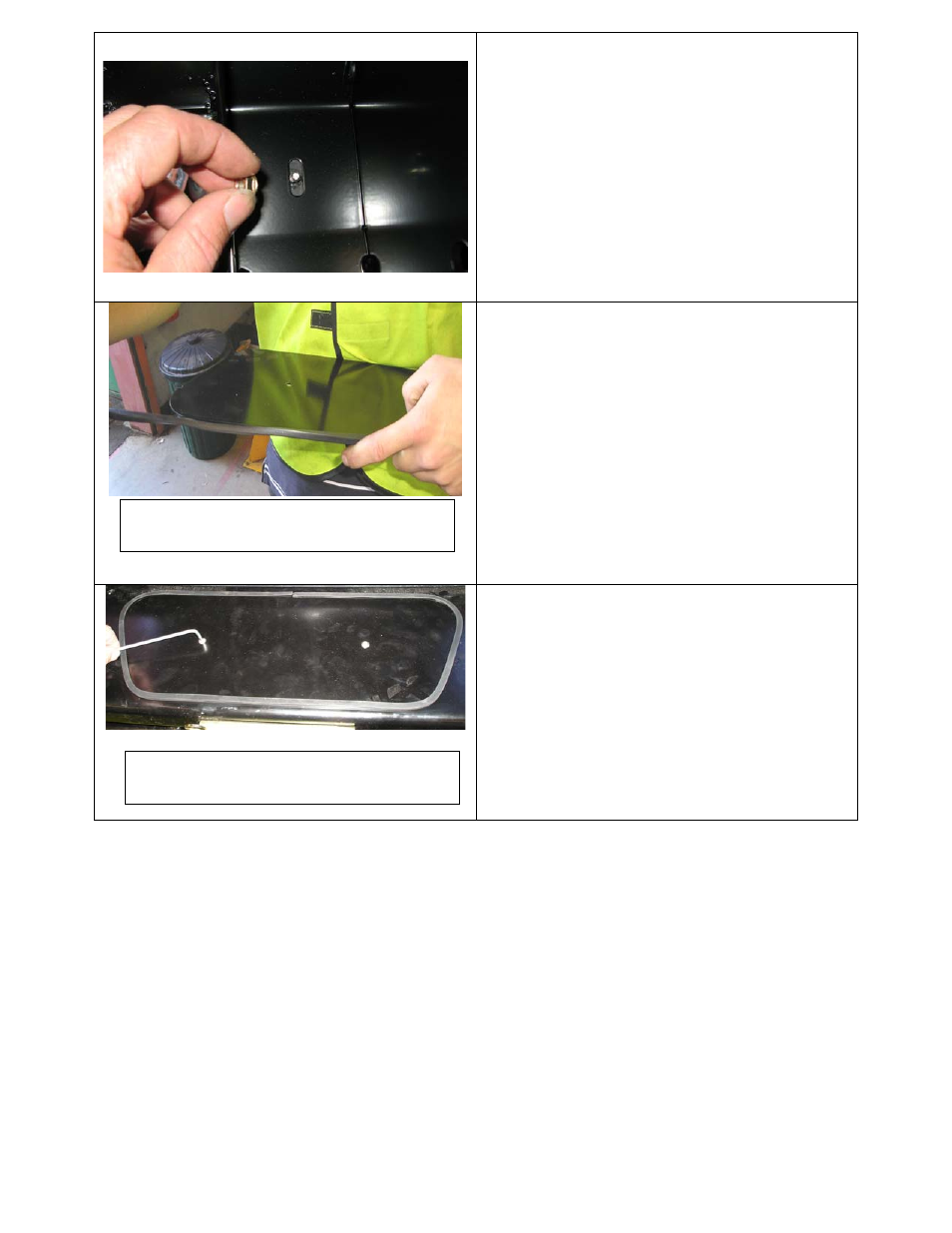

67. If fitting buffers only, fit the

P#31631016R&L buffers, noting that they
are handed and ref the part numbers on
the buffers

68. Fasten with 6 x M6 flange nuts per buffer

once buffers are carefully pushed home
against the profile of the bull bar, be
careful not to over tighten the flange nuts
as damage to buffer can result.

IF NOT FITTING WINCH

69. Fit rubber extrusion to cover panel as

shown starting and finishing at the centre
of the large radius side which is the back
then trim to length

70. Fit the panel to the top of the bull bar as

shown using M6 pan head stainless steel
screws, M6 flat st stl washers and M6
flange nuts. Use 2 x M6 st stl flat washers
as packers in between the panel and the
top of the bull bar to stop the panel from
dishing.

Applying trim rubber, note the join is at
middle of the rear of the plate or long side

The narrower section of the plate is to front
of bull bar
