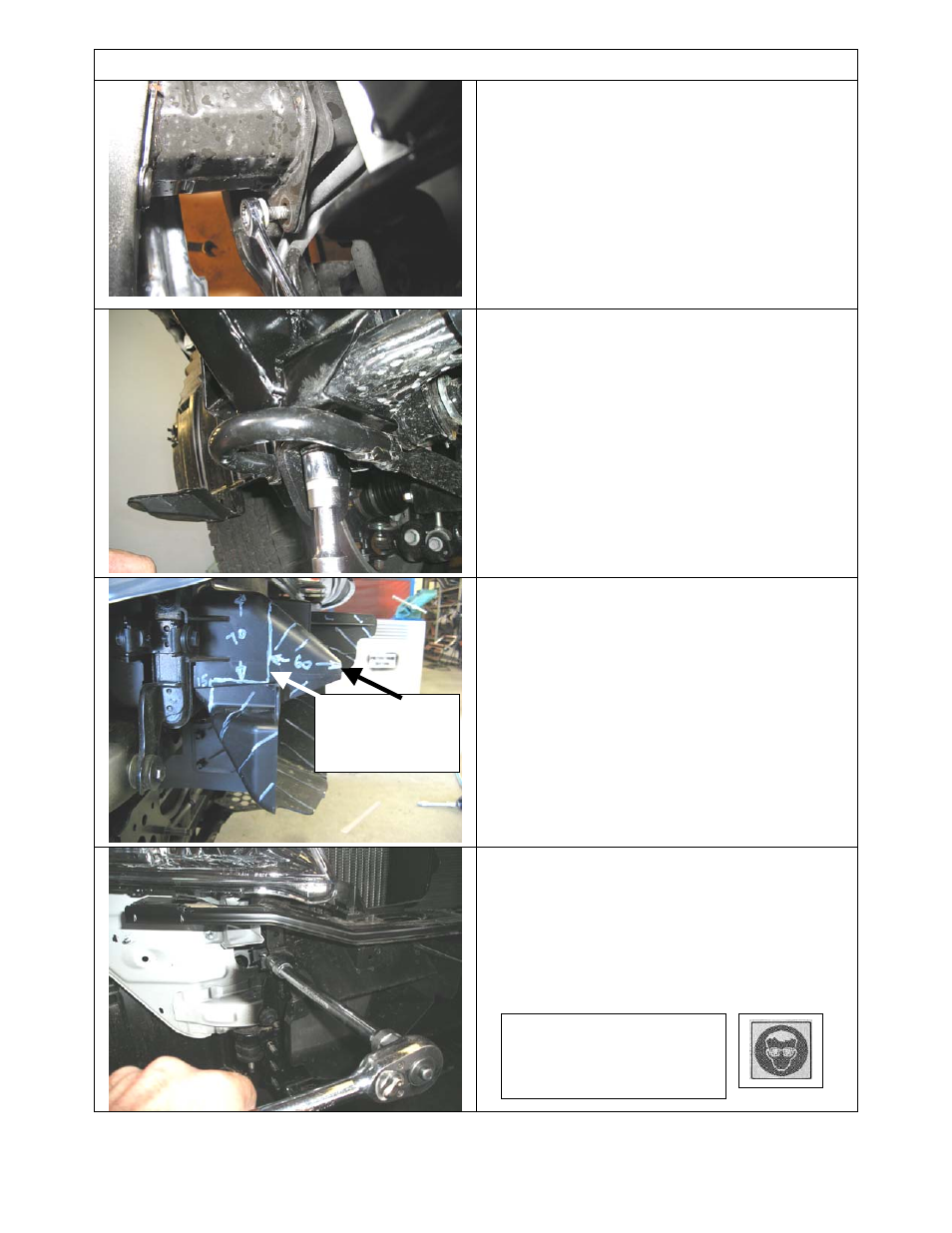

PREPARATION FOR MOUNT BRACKETS
33. Remove foam absorber bar and set
aside, this will not be reused
34. Remove crash bar then beam mount
brackets and set aside, retain only M10
flange nuts for reuse.
35. Remove tow hooks and set aside, these
will be reused.
36. Mark the lower section of the air scoop
for the power steering radiator as shown.
This is for trimming to clear the mount
brackets.
Note: The 60 mm line from front as indicated
goes right over the top of the scoop and down
the other side, then steps back in the same at
70mm from top, then back to 15mm and down
as shown this side.
37. Remove scoop and cut using jigsaw or
similar and remove burrs.
Mark line 60mm
from front face,
other lines as
indicated
Warning: Cutting
operations can result in
flying debris, safety glasses
should be worn.
