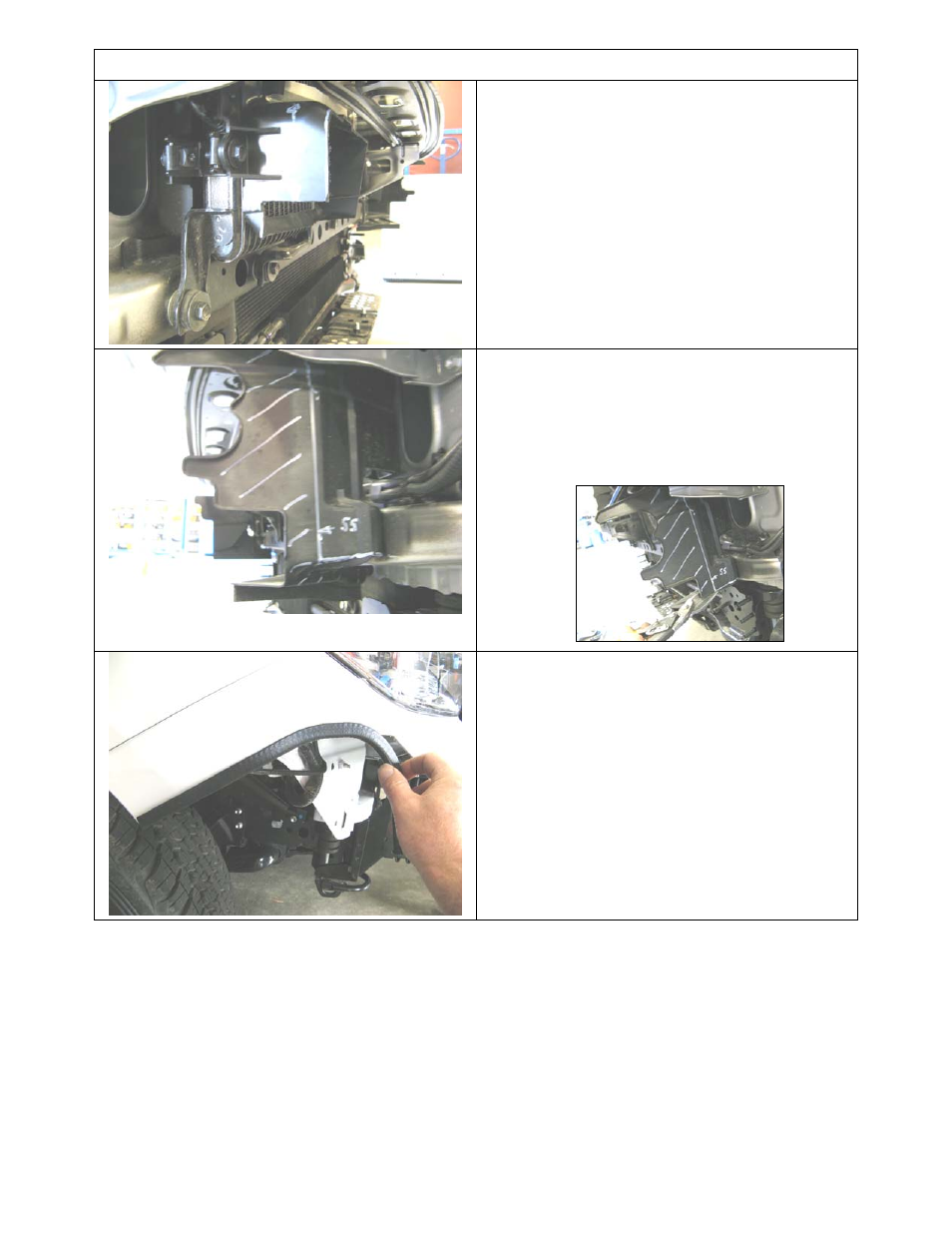

PREPARATION FOR MOUNT BRACKETS
38. Refit to vehicle, it should now look like
this.
39. Mark out and trim the air deflector on the
LHS of the vehicle using a pair of tin snips
or similar.
Hint: You can do this on the vehicle as shown
below.
40. Fit the cut bumper and secure.
41. Fit the grille
42. Fit pinch weld to each end of the bumper
as shown
43. Secure the wing return with one of the
original dome head screws each side.
