ARB 3915040 - Manual (Page 19)

Last Rev Date: 28 OCTOBER 2008 Page 19 of 22 Fitting instructions# 3781218
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
FITTING BULL BAR TO VEHICLE

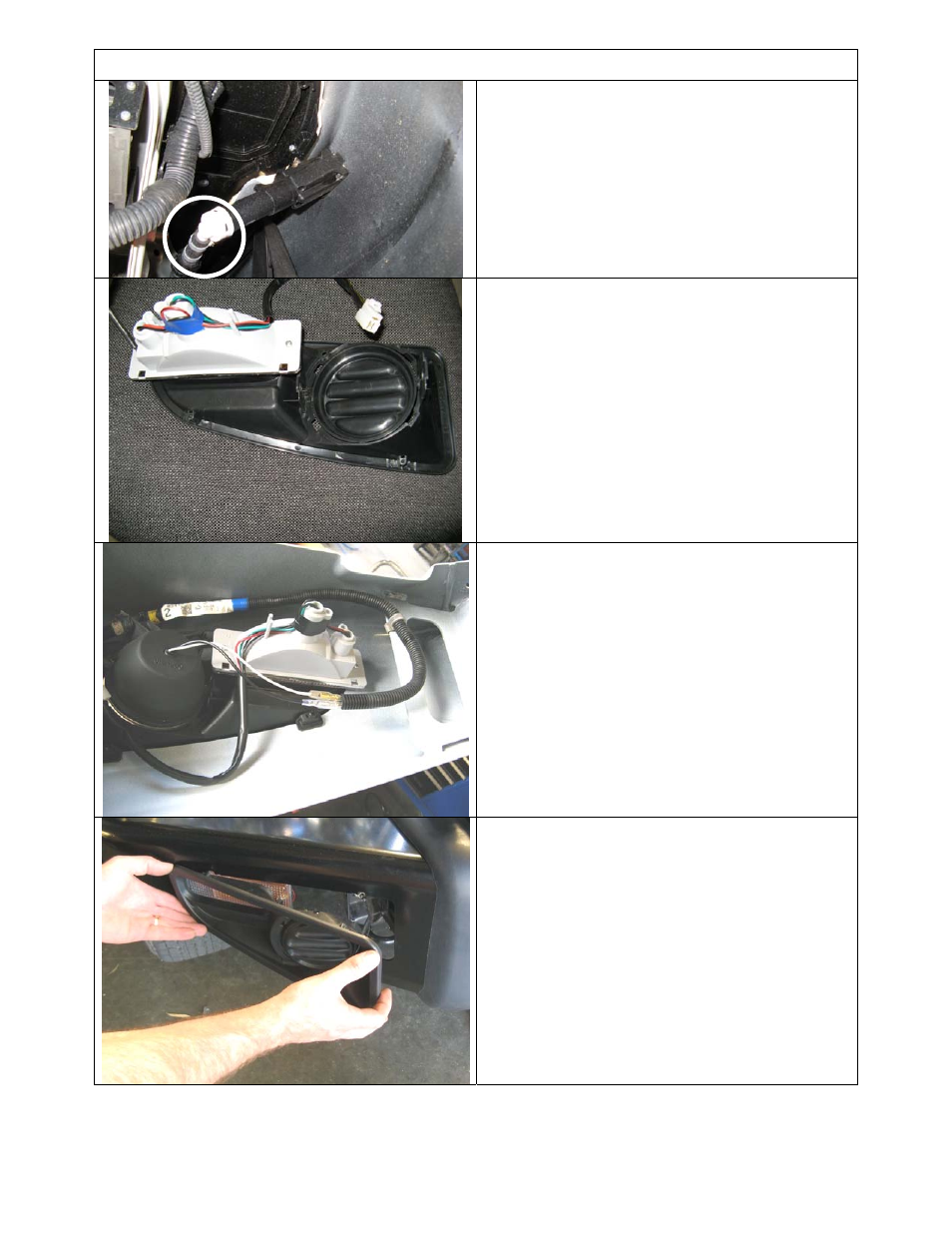

86. If headlight cleaner system to be fitted,
reconnect circuit at main joint to vehicle
and also hoses to tails of spray heads
87. Remove and discard screws and speed
nuts on supplied indicators.
88. Using the 25mm long pan head screws in
the light surround fitting kit, fit indicators to
light surrounds, note that the indicators
are handed and drain holes must be on
the lowest edge.
NOTE: These indicators may also be fitted
once the fog light surround is fitted into the
wing for ease of access to the clamp screws,
after step 93.
89. If fitting fog lamps, refer to instructions
supplied with kit.
Fog lamp wiring to factory loom shown for
reference.
90. Fit insert assemblies into the wings as
shown
91. Fit the 4 x clamps to secure light
assembly in position.
HINT: You can loose fit the top two screw
and clamp sets before loading the assembly
into the wing to make fit up easier.
