PREPARATION OF BULL BAR

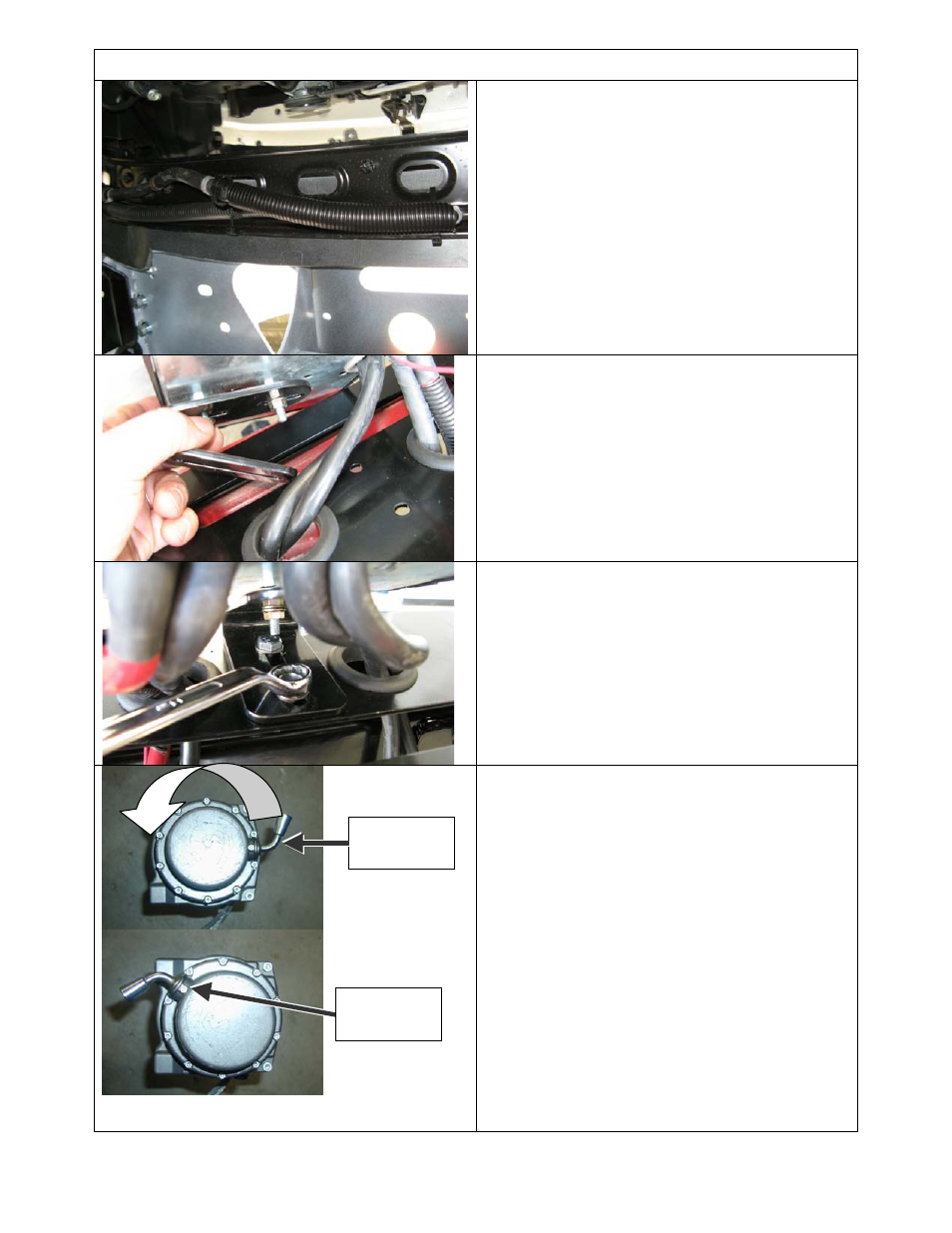

44. Fit 2 x large rubber grommets to holes in
uprights inside the upper area of the bull
bar.
45. If fitting fog lamps, factory loom can be
reused and routed through the grommets
in uprights and along inside the lower lip
of the top pan.
46. If headlight cleaner circuit is to be refitted,
run hosing along the underside of the
grille cross member, cable tie in position
as shown
IF FITTING WINCH
47. Fit large grommets to holes in top pan
48. Fit control box bracket to control box
studs as shown. Picture also shows
routing of leads through grommets in pan.
49. Using M8 fasteners fit control box
mounting bracket to pan
50. Prepare winch for fitting by undoing the
cap screws on the gearbox end.
51. Then rotate the end cap and gearbox in a
counter clockwise direction 144° ( four
hole pitches) while looking down at the
gearbox, as shown (for 12000lb winches
rotate clockwise 144°)
52. Tighten the cap screws ensuring the
gearbox handle operates freely.
53. Rotate the motor end 90° clockwise (elec.
terminals will be up, see step 58)
NOTE: Be careful not to lift the gearbox more
than a few millimetres. Before doing up cap
screws, ensure that the flange faces engage
properly and gaskets are not damaged.
NEW
POSITION
ORIGINAL
POSITION
