Last Rev Date: 26/6/2009 Page 9 of 18 Fitting instructions# 3787027
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

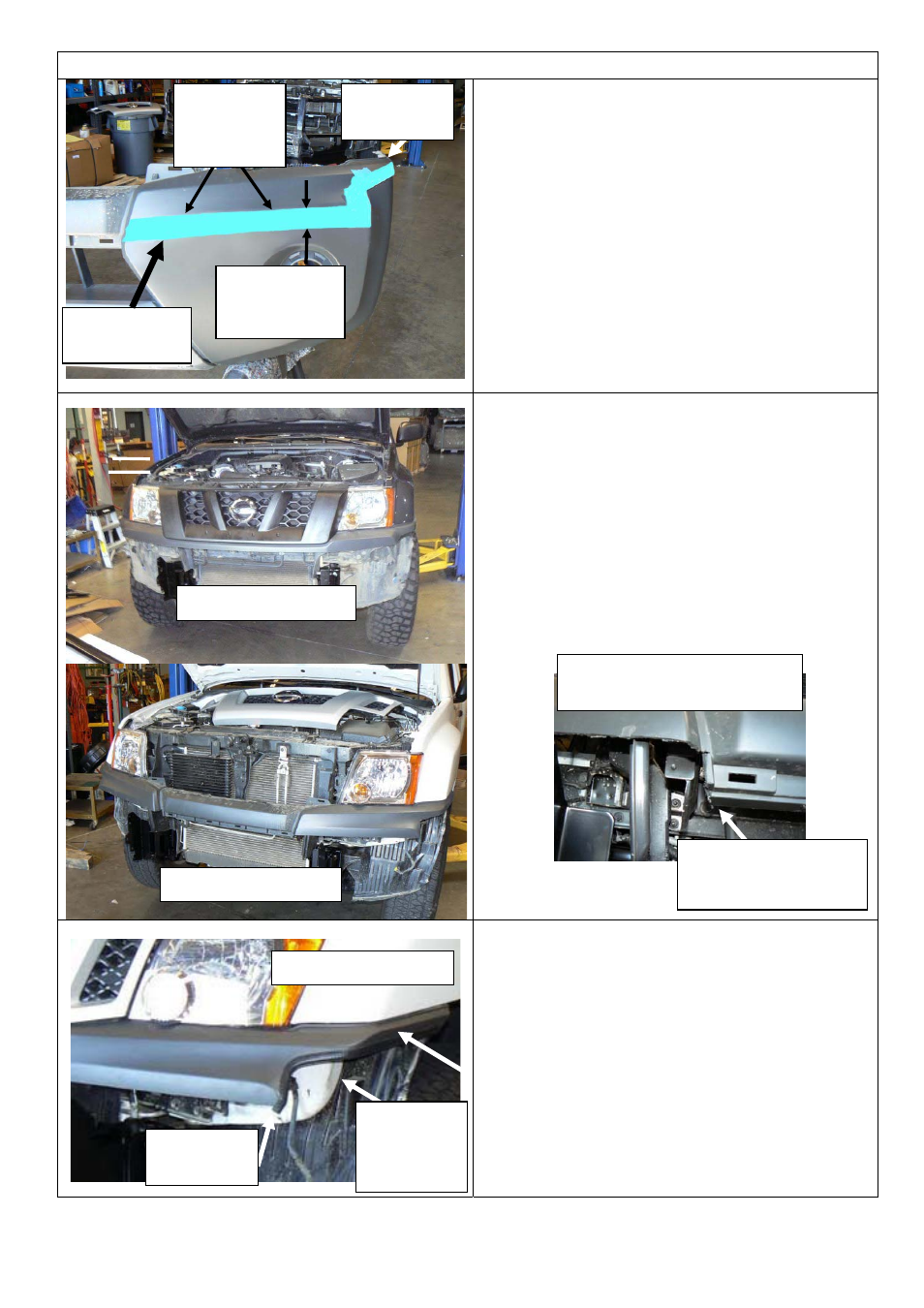

PREPARATION TO VEHICLE
09 ON Xterra only
27. Apply tape across the front of the bumper as
shown
28. Remove the template then mask the area
above the cut with minimum of 30 mm
masking tape to protect the surrounding
surfaces.
29. Cut along the cutting line with an electric jig
saw, or similar cutting device.
30. Clean up the cut edges of the bumper bar
with a file or fine sand paper.
NOTE: Final bumper cut shown
31. Fit the 400mm/14” long pinch weld trims to
each of the areas from the wheel arch
forward as shown
Tape
Thickness
40mm (1 5/8”)
Top edge of
bumper Measure
down from
bumper
feature line
Trim off
excess
Fit 400mm/
14” long
pinch weld
to this edge
05 - 08 Model shown
09 ON Model Shown
09 ON Model shown
09 ON Model showing cut up
to edge of grille
Cut line
Cut through ribs
across centre section
along area below
