BULL BAR FITMENT TO VEHICLE

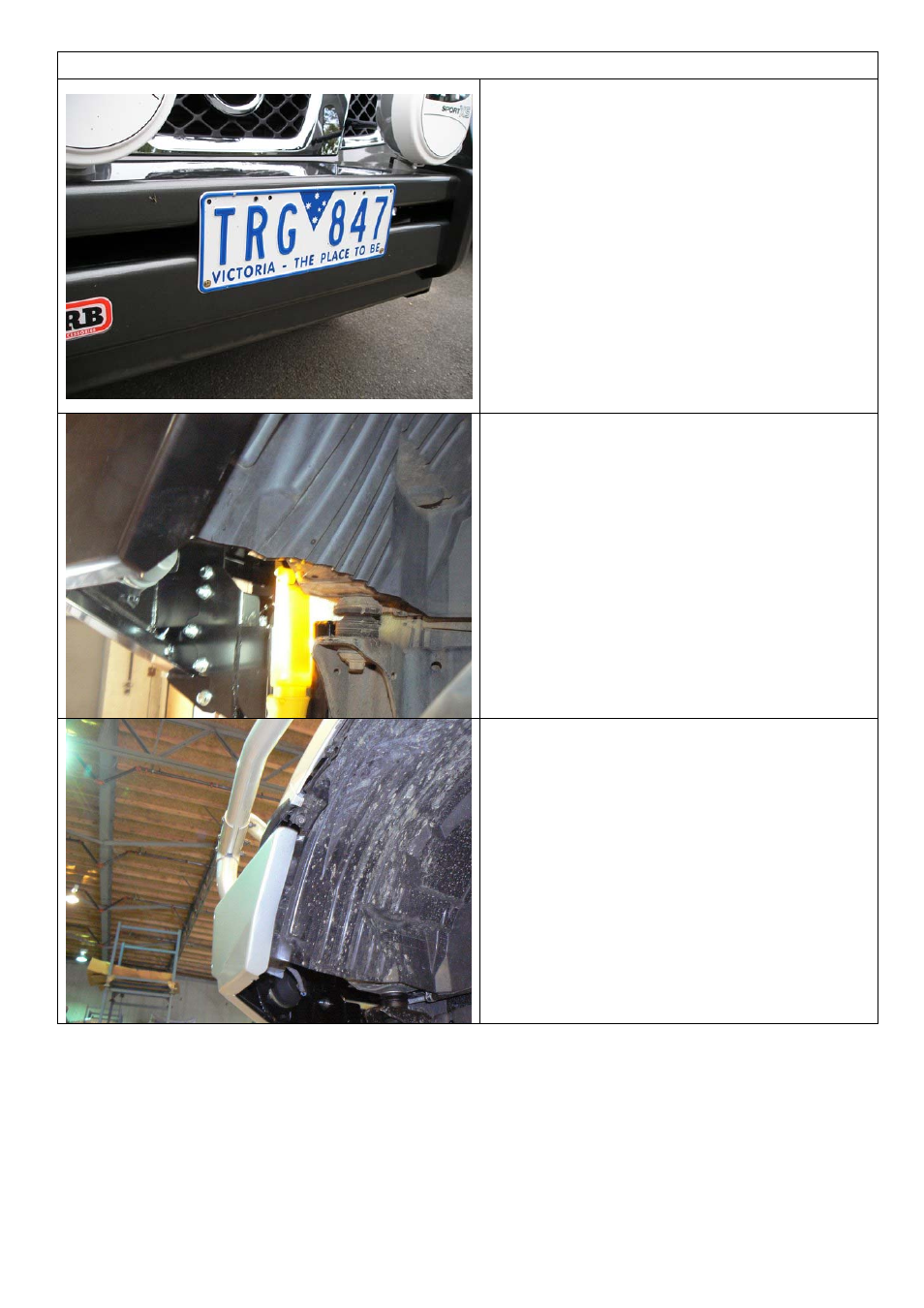

70. The licence plate can now be attached to
the bull bar. Insert the two plastic square
plugs supplied into the two square holes in
the face of the bull bar.
71. If winch fitted, position the licence plate as
shown fastening using lower holes. If winch
not fitted use the top row of holes, licence
plate is positioned lower and covers RFL
opening in front of bull bar
72. Using the two dome head screws supplied
screw into position firmly.
73. Trim the lower edge of the fender liner as
shown
74. Push the outer edge of the liner forward
past the wing return edge so that it snaps in
against the wing brace as shown.
