PREPARATION TO VEHICLE

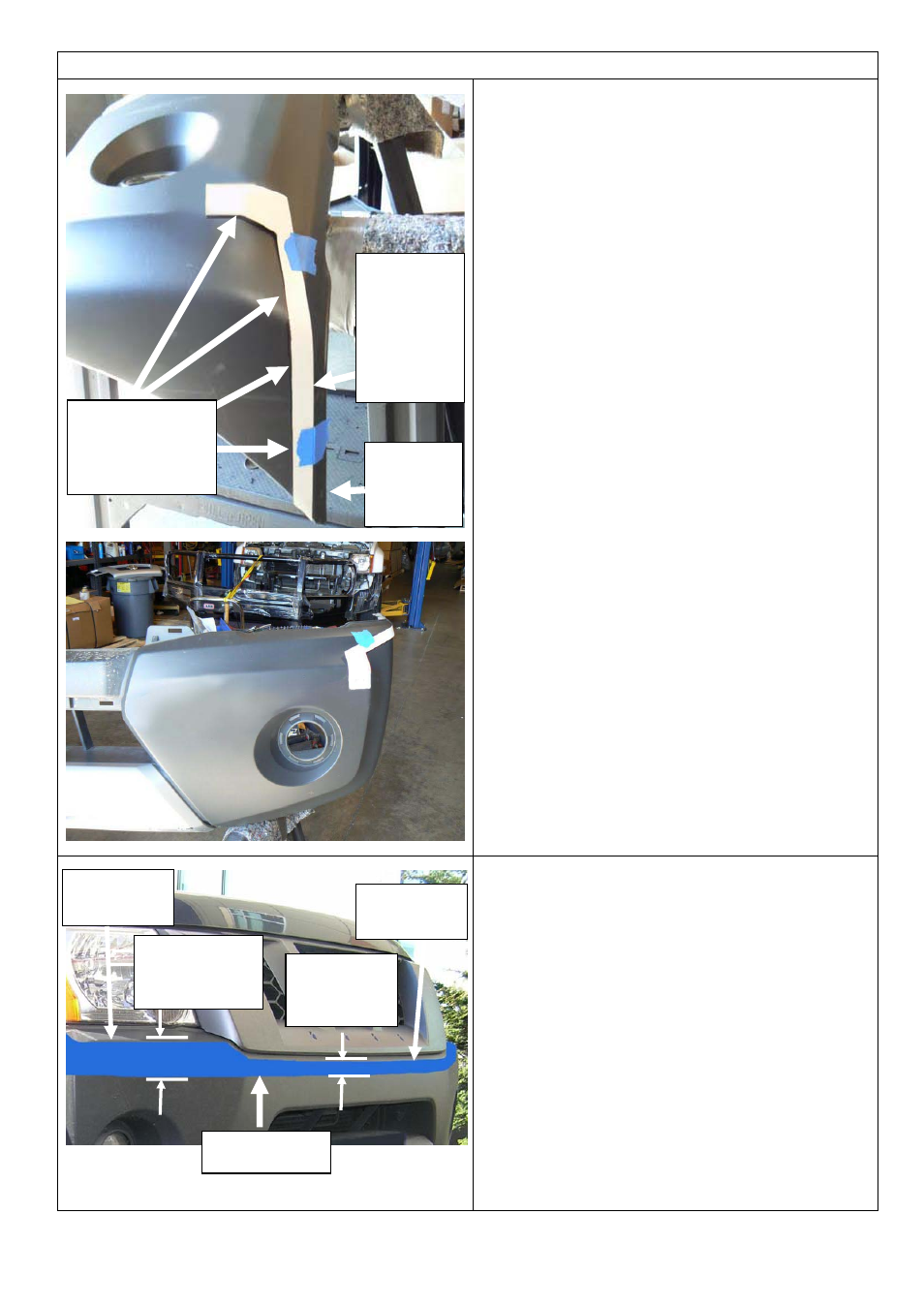

22. For marking out cut line, you may either
temporarily refit bumper or mark out resting
on saw stools or similar as shown.
23. You can begin marking out for the side cut
on the bumper.
24. Starting on the LH side first, tape the
template into position, aligning the edge
along the top horizontal outward edge of the
bumper and to the rear top corner as shown,
then mark the cut line with a felt tip pen.
25. Repeat for the RHS
05-08 Xterra only
26. Apply tape across the front of the bumper as
shown
Mark along
this edge for
cutting line
Align
template
with this
feature
line on
bumper
Top
face of
bumper
Tape
Thickness
40mm (1 5/8”)
Tape
Thickness
25mm (1”)
Top edge of
bumper
Top edge of
bumper
Cut line
