PREPARATION TO VEHICLE
If you are fitting a winch in an 09ON model
you must make this cut in the grille lower
front area as shown

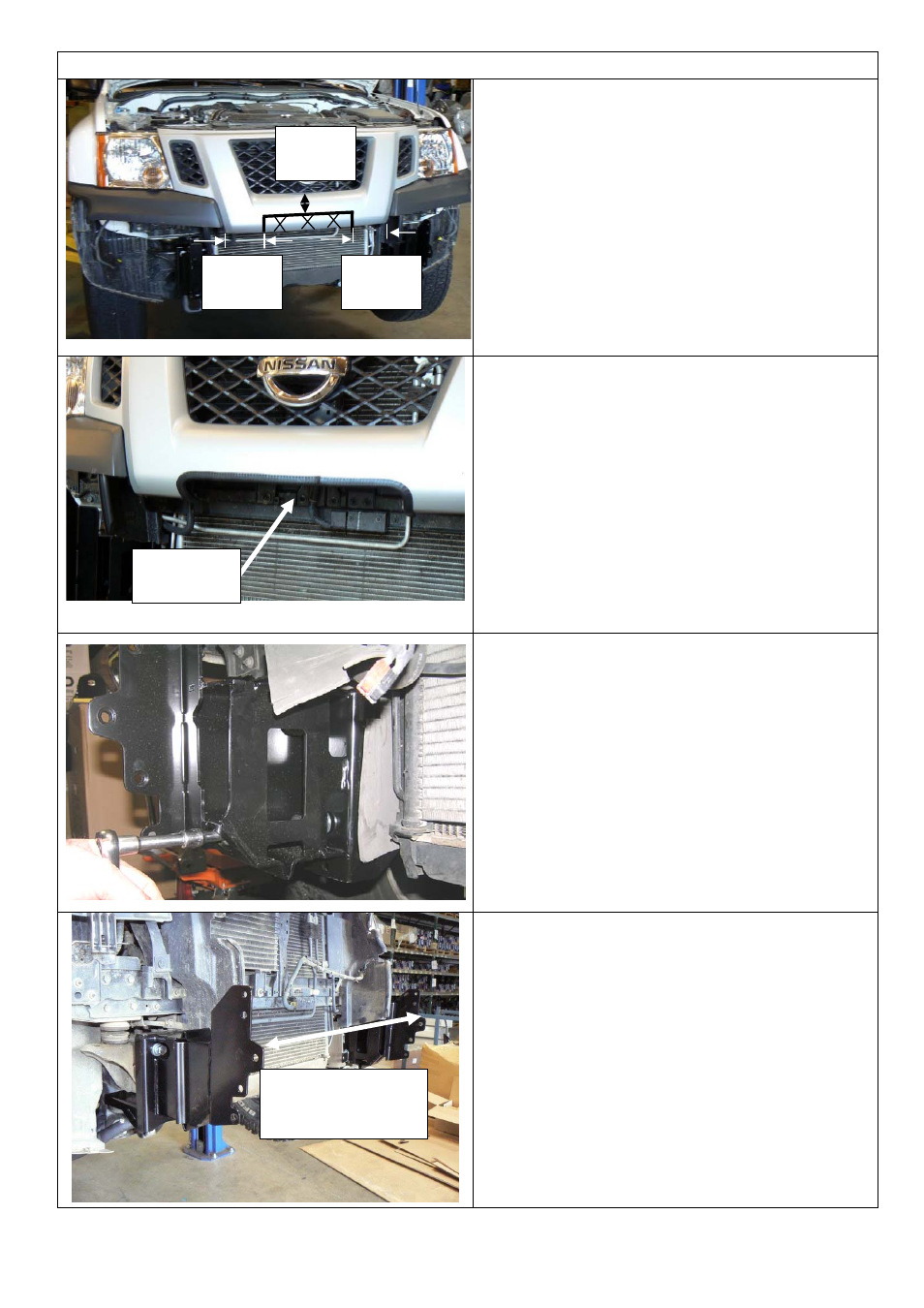

32. Mark out grille centre as shown
33. Make the cut, applying masking tape up to
the cut line providing protection from
scratching the good surface
NOTE: If fitting 9.5XP WARN winch check
clearance when fitting and trim to clear
34. Apply the 600mm/26” piece of pinch weld to
the edge and then trim any excess
35. Install the impact absorber set as shown
36. Secure hand tight only, using M12 x1.25 X
35 bolt, washer and flange nut sets.
37. Use the original bolts to secure the tow hook
if it is to be refitted
38. Check the overall width of the mount
brackets by measuring the distance inside
the faces. The two inside vertical faces
should be parallel to each other.
39. For reference, the ideal width is 910mm. If
the width is over this or well under, adjust the
brackets to achieve approximately this width
then do all the bolts up to specified torque.
Measure 910mm
(35 13/16”) outside
overall
120mm
4 3/4”
120mm
4 3/4”
125mm
5”
Pinch weld
fitted
