Fitting instructions# 3787027

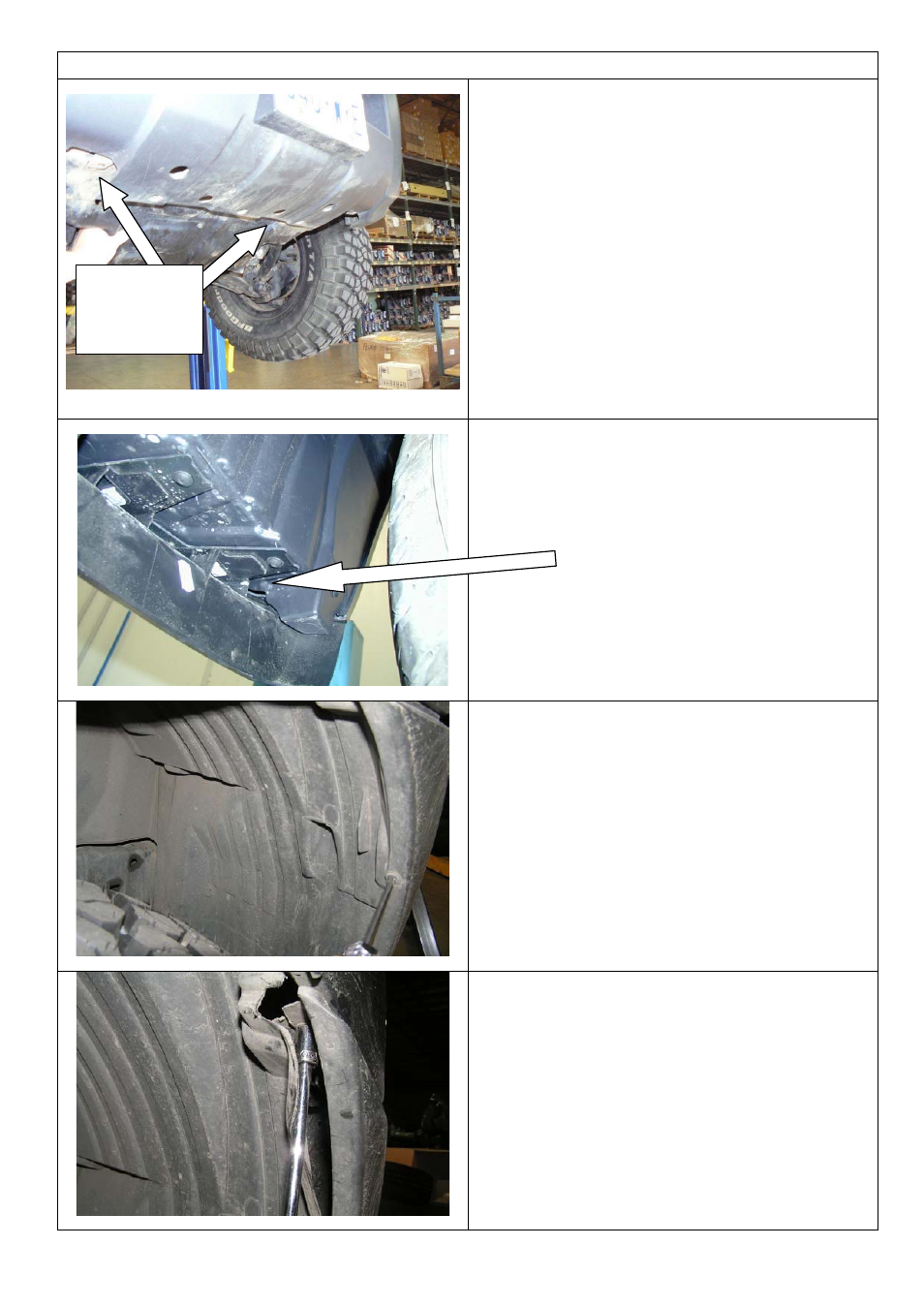

PREPARATION TO VEHICLE

1. Remove licence plate from the vehicle and

set aside

2. Remove the three plastic scrivets securing

the bumper in the intake area behind the
licence plate location

3. Remove the bolts between the lower bumper

and sump guard

4. Remove the four lower bolts that attach the

lower bumper tabs to the vehicle (refer to
attached photo). There are also another two
self tapping screws in each side, located in a
recess in the lower bumper face – these need
to be removed.

5. Remove the two bolts and screw from the

fender opening area each side that attaches
the bumper bar to the plastic inner guard liner
as shown.

6. Remove the screws securing the fender liners

to bumper in the forward wheel arch areas

7. Remove the screws from the bumper on each

side in the wheel arch area

Remove bolts
securing
bumper to
sump guard
