Fitting instructions# 3787027
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

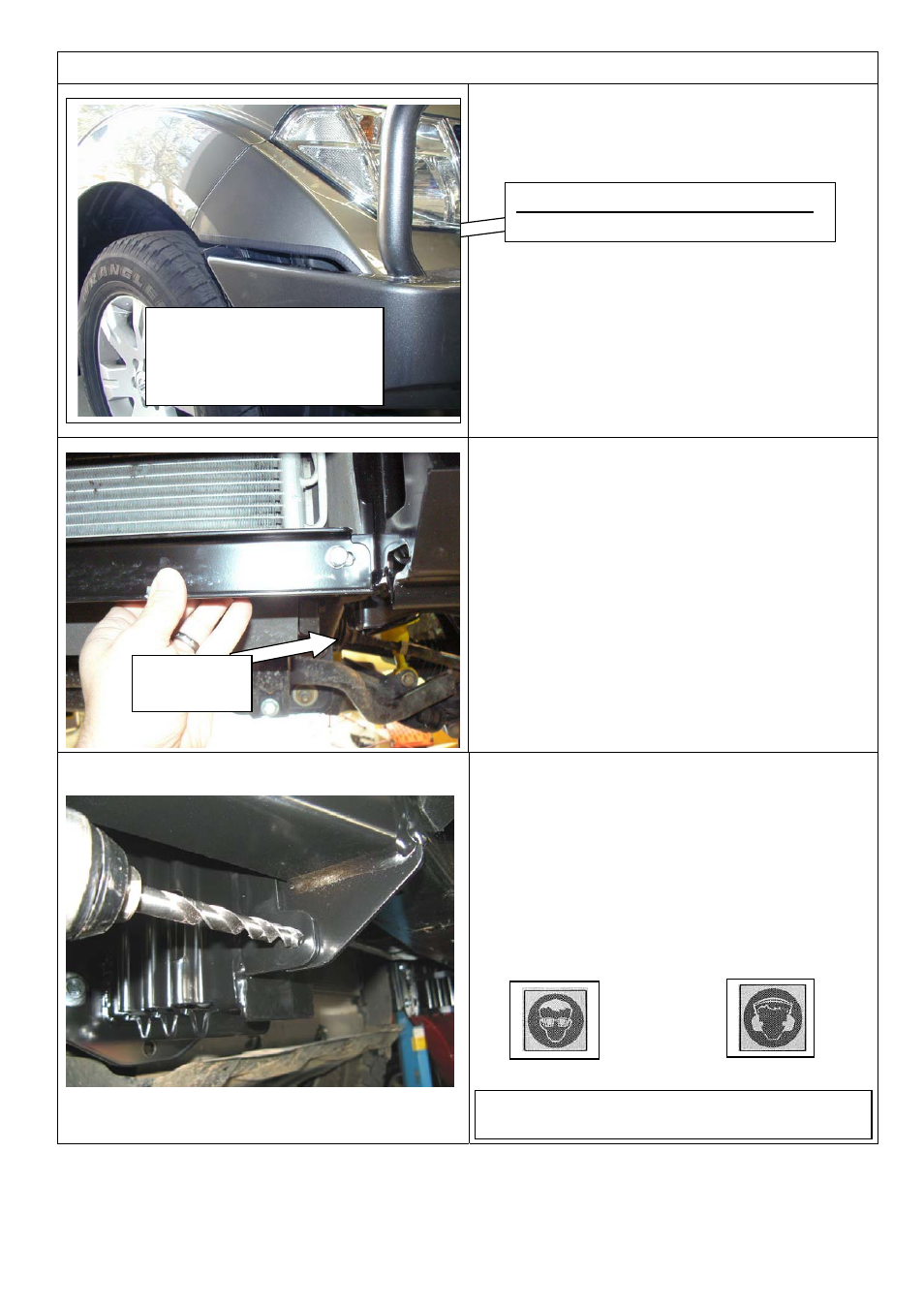

BULL BAR FITMENT TO VEHICLE
58. Ensure the bull bar is sitting on the vehicle
level and the gap between the bumper bar
and the bull bar wing is parallel.
59. If the bull bar is not centred on the vehicle,
tap the mount brackets sideways with a soft
hammer until the bar is central
60. Once happy with the position of the bull bar
and the clearance gap is 15mm, tighten all
the mount bolts to specified torque
61. The stone shield cross brace can now be
fitted to the flange attached to the impact
absorber using an M8 bolt, spring washer, flat
washer and M8 flange nut set per side.
62. Tighten both sides.
63. Install the two M6 cage nuts (long leg) with
the body of the nut facing upward.
64. Using an electric drill and a 10.0 mm drill bit,
drill two pinning bolt holes through the bull
bar upright each side using the holes in the
mount bracket flanges as a guide. One hole
is located in the lower lug of the mount face
and one up above the welded nuts. Use
access through the light surround opening for
the top hole.
15 mm (5/8”) GAP REQUIRED
Flanges face
forward
Warning: Drilling operations can result in flying
metal debris, safety glasses should be worn.
Need new photo
with 15mm gap
