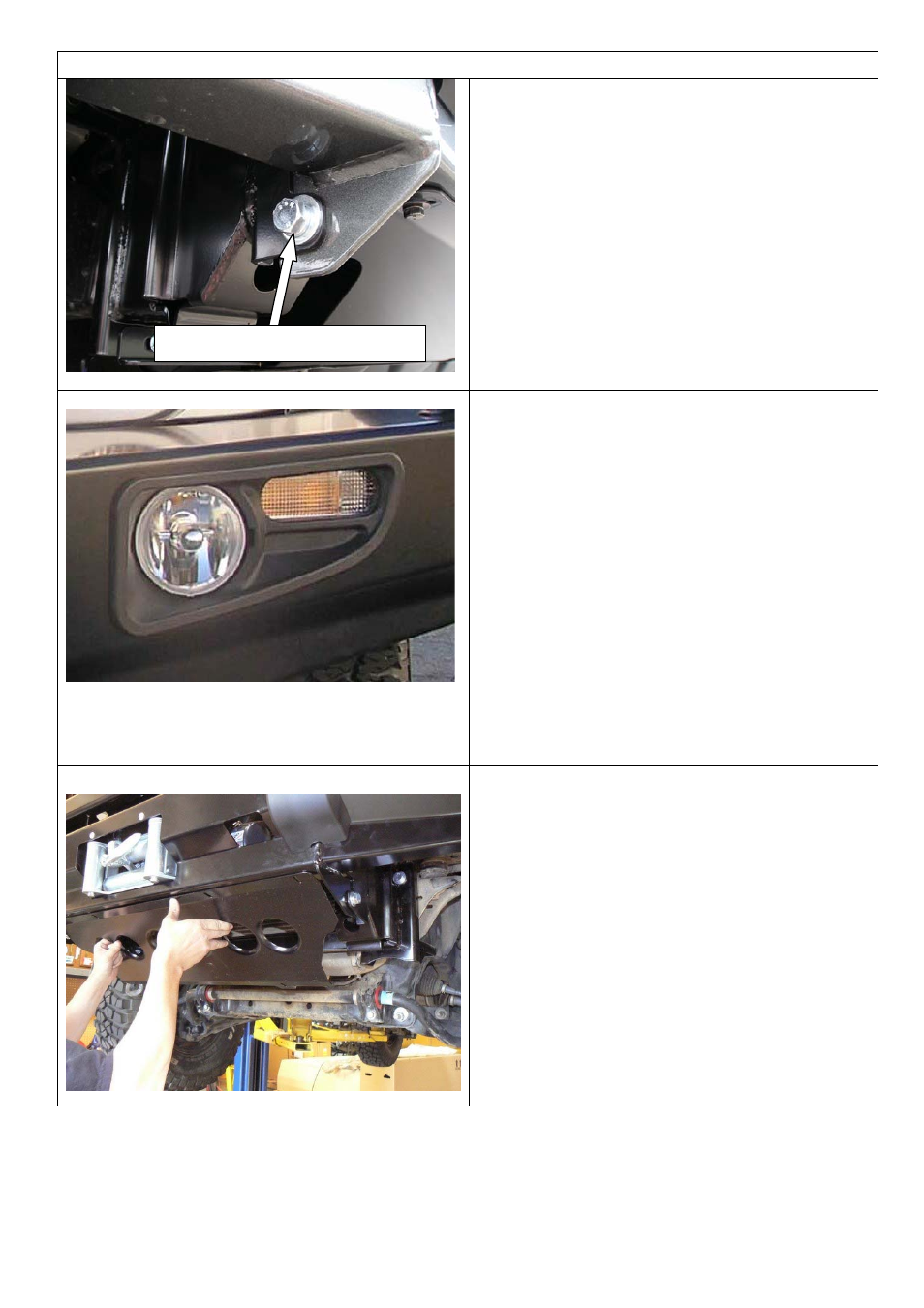

BULL BAR FITMENT TO VEHICLE
65. Fit the pinning bolts to the bull bar in the
drilled positions using 4 x M10 SEMS bolt and
washer sets and M10 flange nuts.
66. Assemble and install combination light
surrounds (p/n 3163015) as per instructions
no. 3786421 supplied with surround kit. Note:
Optional fog lamps can be installed at this
point as per fitting instruction no. 3783315
supplied with fog lamp kit no. 6821201.
67. Wire the combination lamp to the vehicles
indicator and clearance lamp wiring.
Caution: Cable tie all cables together and
keep all cables clear of sharp edges and
moving parts.
Wiring:
Green wire is Turn signal + (pos)
Red is running lamp + (pos)
Black is – (neg)
68. Refit the vehicle sump guard, leave the
front bolts out at this stage
69. Attach the stone tray to the under side of
the bull bar with the black M6 bolts, flat
washers & spring washers. The back
edge fits over the lip of the sump guard.
There are four bolts in the front edge
and two in the back edge.
M10 PINNING BOLT
