PREPARATION TO VEHICLE

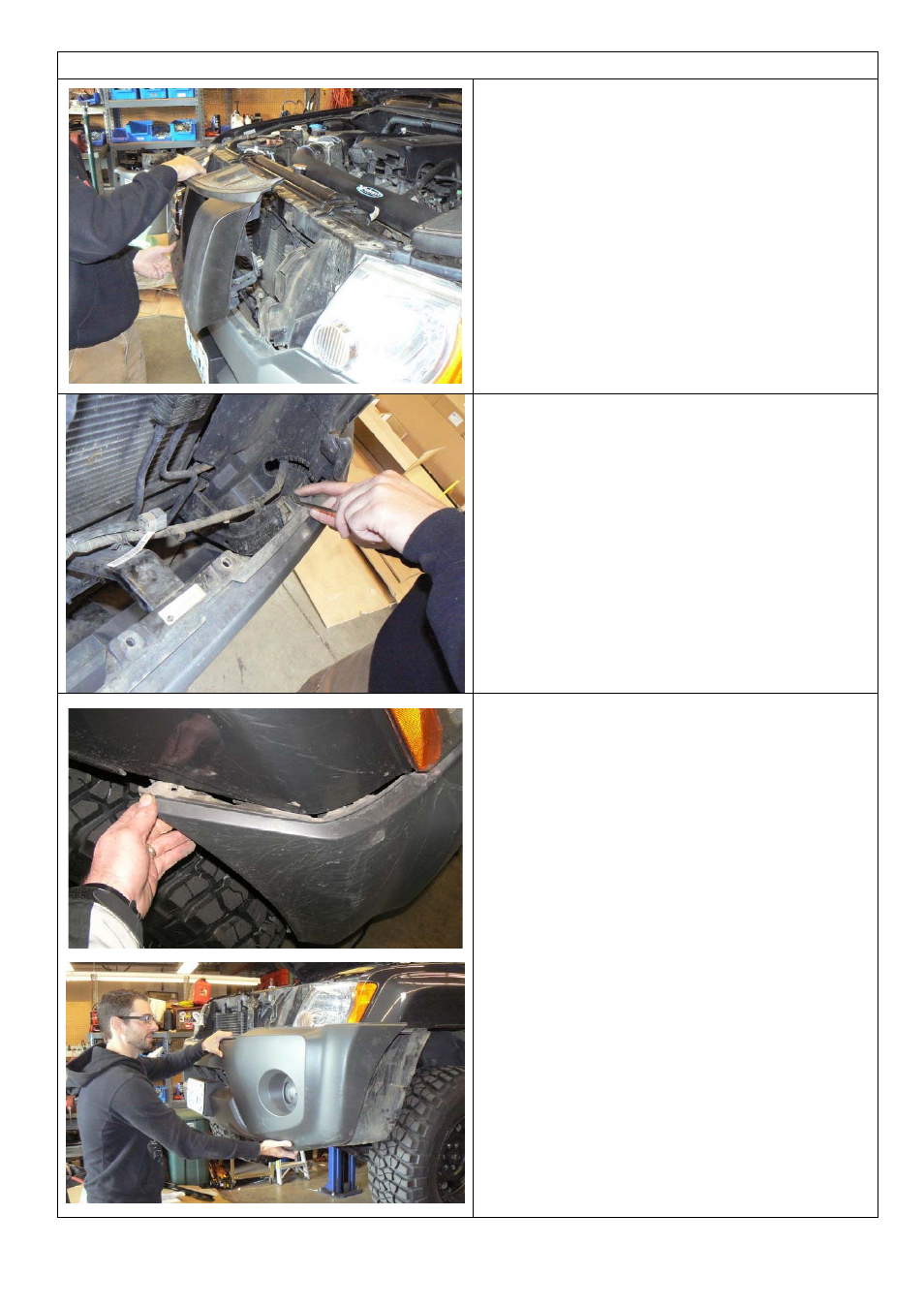

8. Remove the grille – prise out scrivets along
the top first, then release lower clips in
behind grille attaching to top flange of the
bumper
9. Remove scrivets securing bumper to cross
member.
10. Remove bumper.
11. Disconnect fog lamps if fitted
NOTE: The outer end of the bumper where it
clips into the fender, is released by pulling out
and forward as shown
