ARB 3450110 User Manual
Page 8
31 10 02
Page 8 of 16
3783013

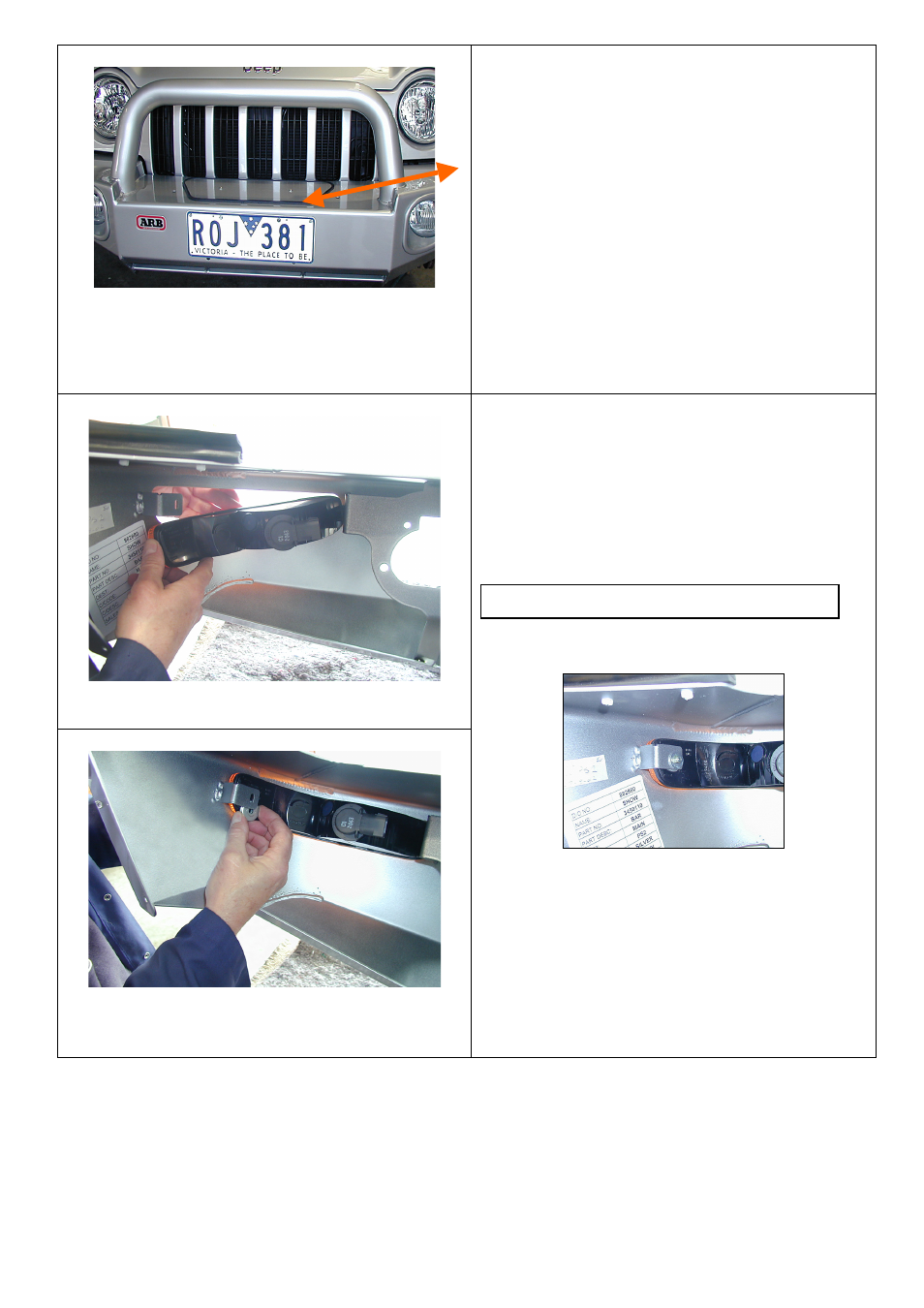

20. If bar is going to be a non winch bar, fit
number plate directly to front of bar using
6mm hardware.
21. To fit cover plate on top of bar winch cutout,
fit rubber extrusion around top cover panel,
trim to size and bolt to top of bar using M6
button head stainless steel screws and M6
flange nuts.
22. Indicator installation to bar , fit indicator
tang into slot of fog light bracket and under
outer bracket. Slide plastic packer between
bracket and indicator and fasten using 4mm
screw ,flat washer and 4mm nyloc nut.
PHOTO VEIWED FROM INSIDE OF BAR LHS
