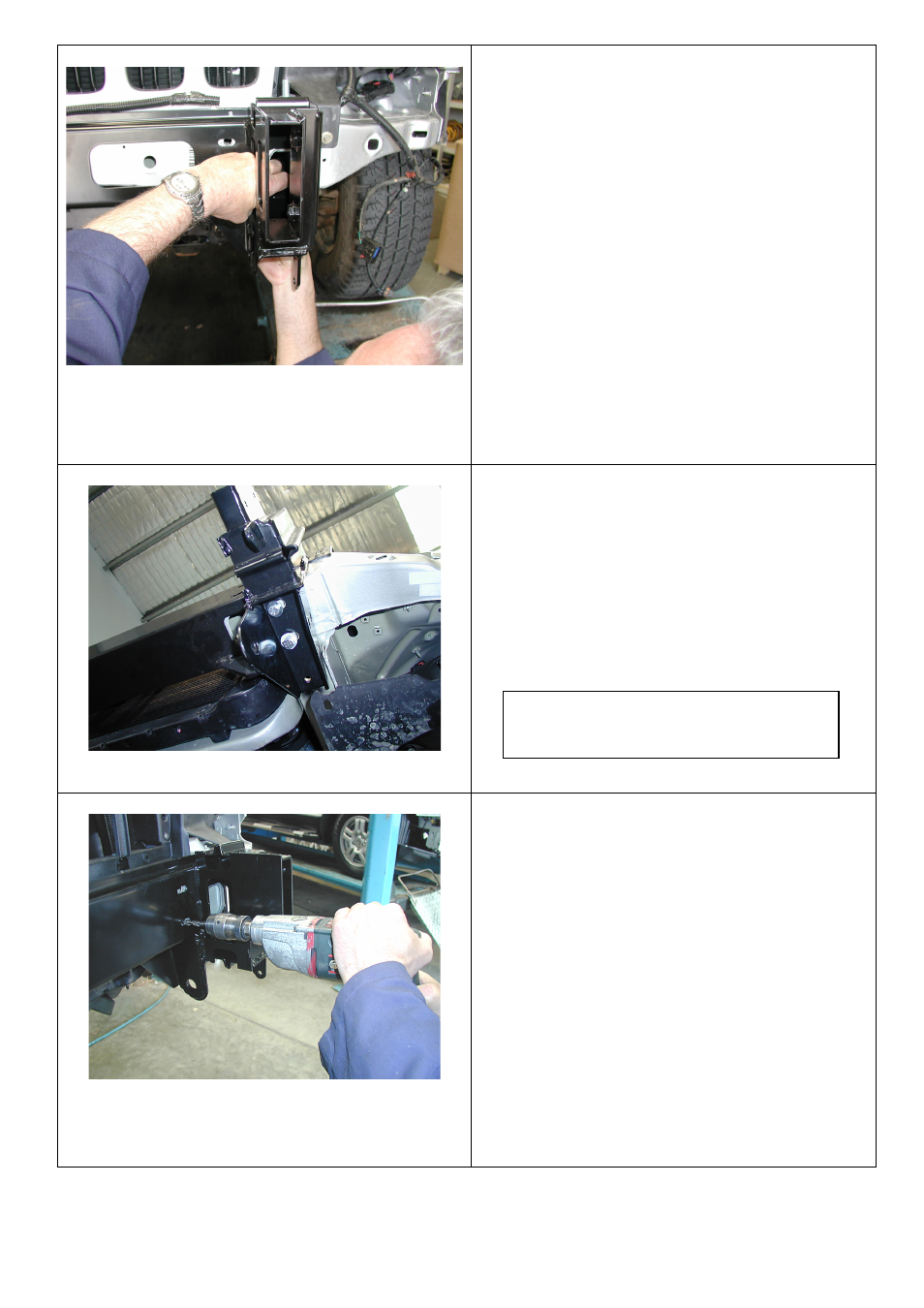

13. When both channels are inside of
crossmember, using your finger, align with
holes underneath of chassis rails.
14. Fit mounting system to front crossmember of
vehicle and centralized sideways.
15. Fit 10mm hardware to the two most forward
holes in lower brackets, to both sides of
vehicle, making sure mounting system is
hard up against vehicle crossmember,
tighten firmly.
16. Using 10mm drill bit, drill out holes in centre
of slots in front of crossmember.
Photo shows underside of mounting
system on LHS of vehicle.
