31 10 02 Page 14 of 16 3783013

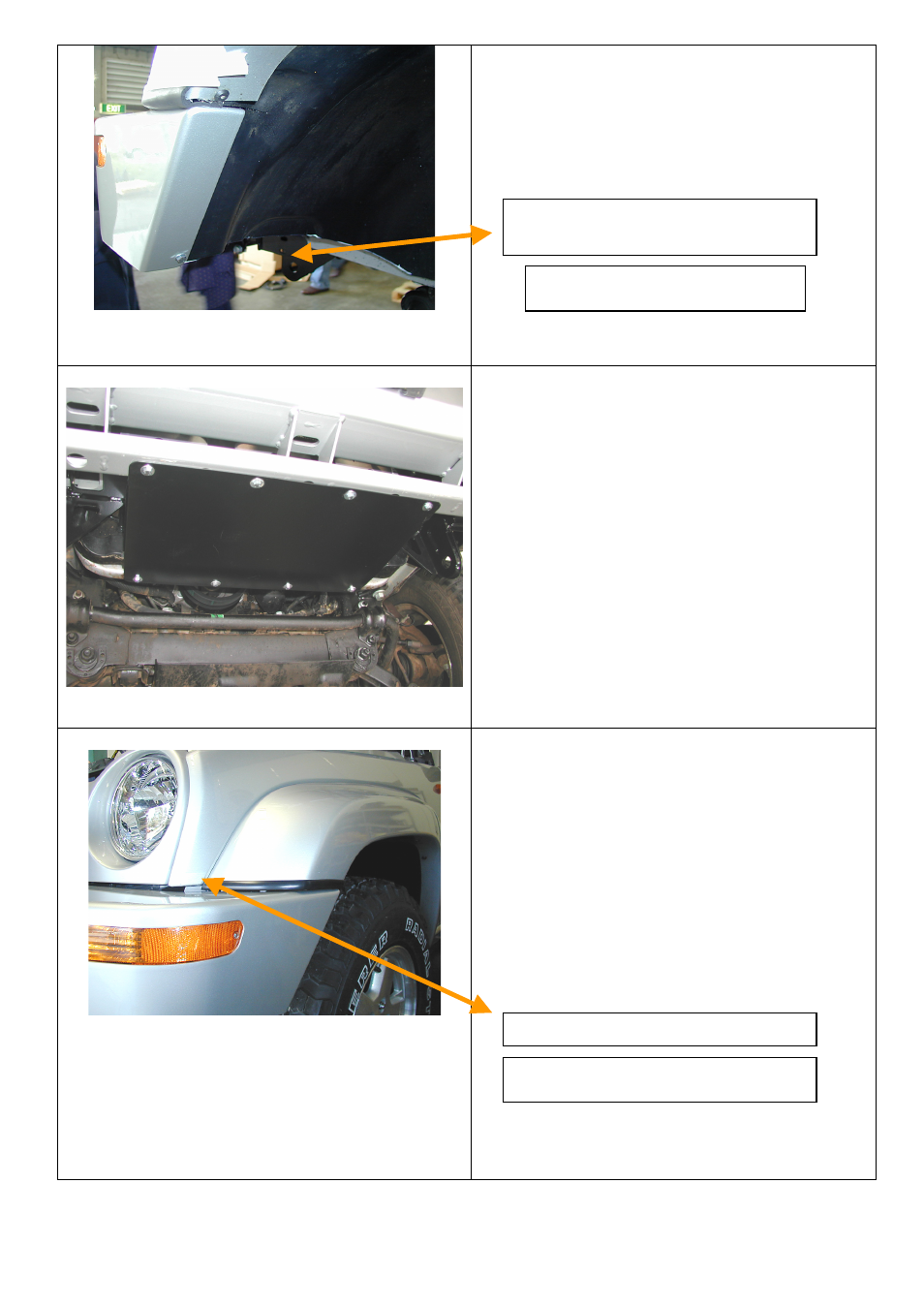

43. On the LHS of vehicle cut plastic inner
guard as per photo, tuck in behind bar wing,
secure to bar wing section using 6mm
hardware.
44. Fitting of AIR DEFLECTOR to underside of
bar.
45. Fit rear of air deflector to vehicle lower
crossmember using original screws and front
to bar using 6mm hardware. When all
hardware is fitted, tighten firmly.
46. When everything on bar is fitted and tighten,
the last part to fit if so desired, is the stick on
plastic molding that covers up where the
vehicle flare has been cut.
47. Molding in bolt kit is for both sides of
vehicle.
48. To fit molding to flare, cut molding on
matching angle of where flare meets guard,
remove backing tape and adhere to vehicle
about 3mm above the wing section of bar.
49. Cut off molding flush with wheel arch.
Photo of inside of LHS guard
New cut line of plastic inner guard
Photo of LHS of vehicle
Matching angle for molding
