31 10 02 Page 13 of 16 3783013

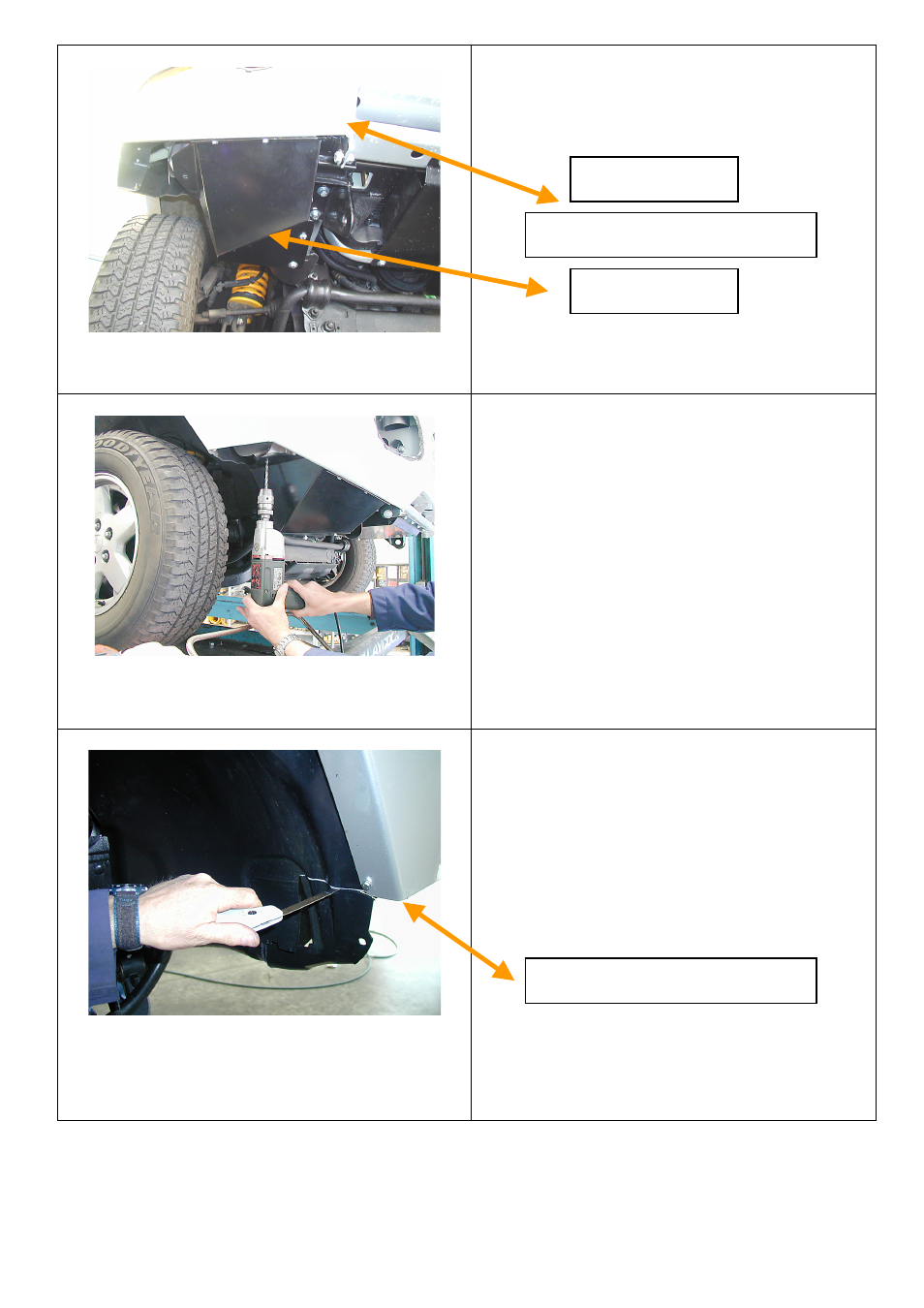

39. Bolt washer bottle guard to lower bar wing
section using 6mm hardware. ( finger tighten
only )
40. On RHS of vehicle, using vice grips to hold
in place, drill a 6mm hole through washer
guard into under side of vehicle
crossmember and secure using 6mm
hardware. When all bolts are fitted, tighten
firmly. Cut plastic upward so you can tuck
plastic inner guard in behind washer
bottle guard.
41. Next step is to trim the plastic inner guards
that hang down passed the bar.
42. On the RHS of vehicle, tuck plastic inner
guard in behind bar wing section and secure
using 6mm hardware. Cut plastic level with
the bottom of bar wing section to washer
bottle guard.
Washer guard
Wing section
Bar wing section
Viewed from under vehicle
