ASSEMBLY SEQUENCE FOR BULL BAR INSTALLATION.
PLEASE READ AND UNDERSTAND FITTING INSTRUCTIONS BEFORE
ATTEMPTING TO FIT BAR TO VEHICLE

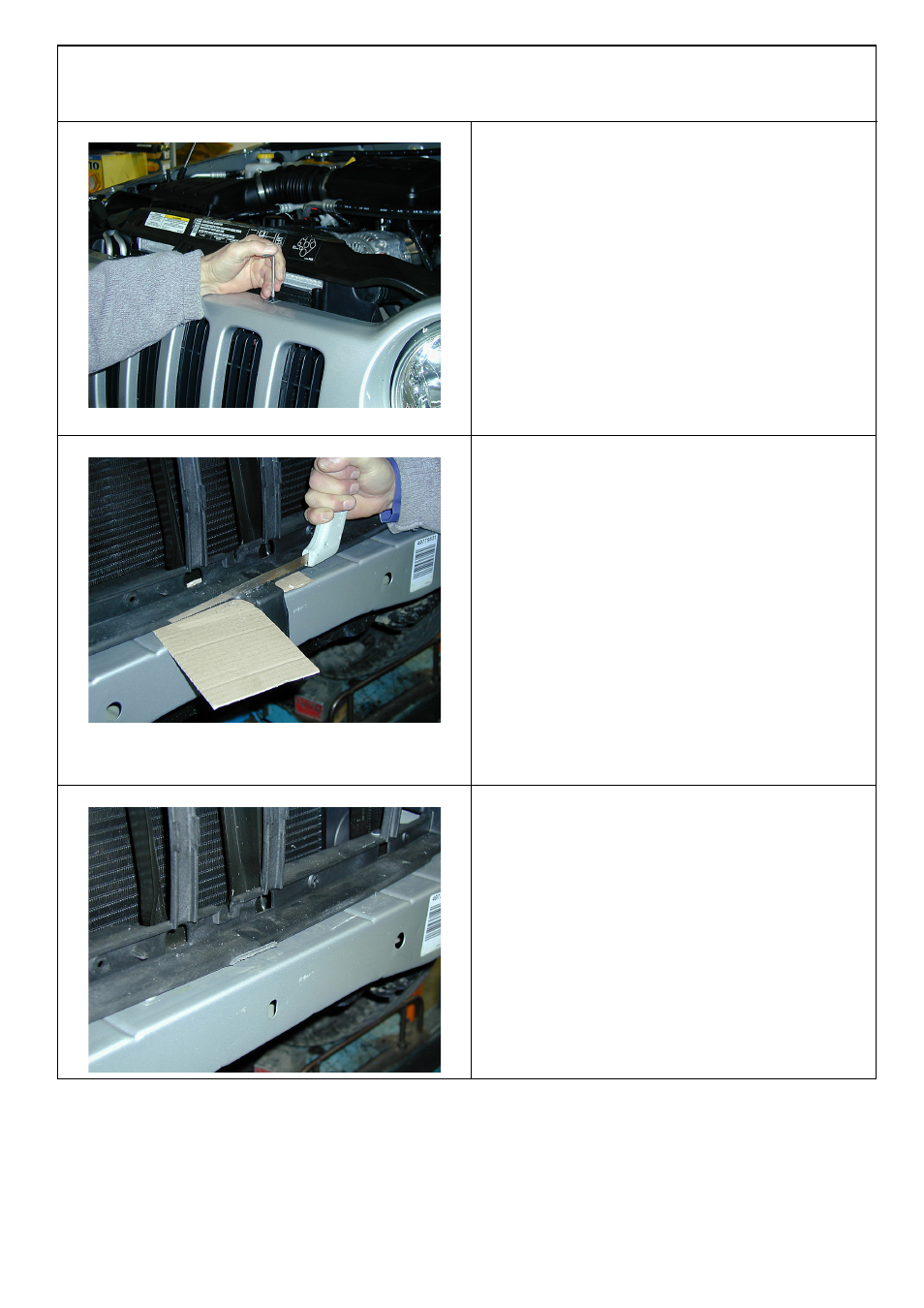

1. Remove grille from vehicle using torx
keys.
2. Remove bumper from vehicle and
remove all lights and the wiring loom
from bumper.
3. Be careful when removing bumper from
the flares as the plastic clips are
awkward to undo.
4. When bumper is removed, cut the lower
plastic lug from grille panel to enable
bull bar mounting system to bolt up
against vehicle crossmember. Place either
thick cardboard or plywood either side of
lug to prevent paint damage.
Remove tow hook and crush cans
from vehicle
5. This is how it must look when it has been
cut.
