PREPARATION TO VEHICLE
.

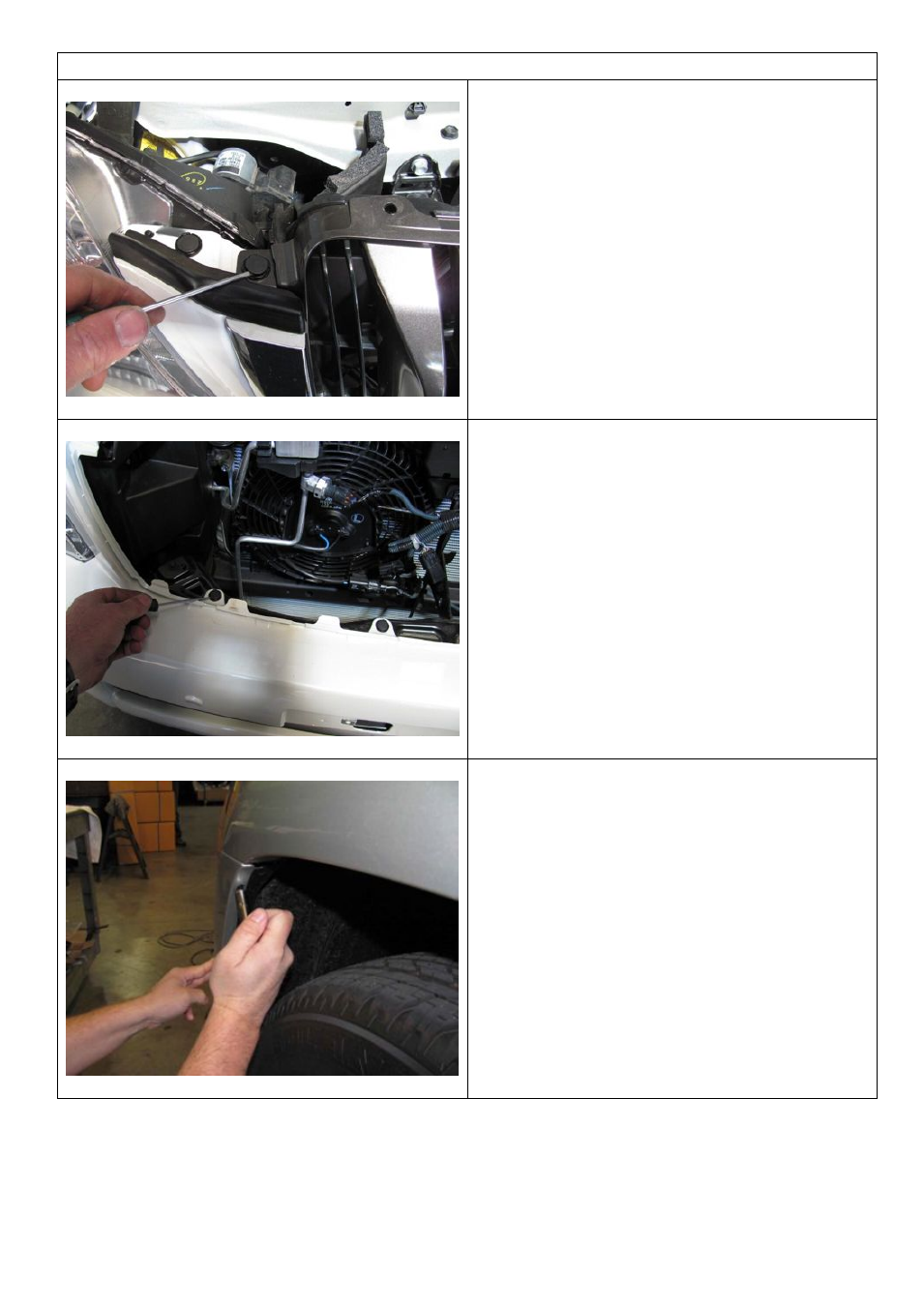

12. Remove the plastic scrivets securing the top
of the grille
13. Release the clip positions along the lower
edge of the grille to the bumper then remove
grille
.
14. Remove the plastic rivets securing the top of
the bumper
.
15. Remove the screws securing the bumper to
wheel arch area and across the lower section
across the front so that there are no more
fasteners securing the bumper
16. Remove the lower joining panel from the
bumper to the sump guard
17. Work the inner guard liners away from the
bumper and reaching in behind, undo the
connections to the following if fitted:- fog
lamps, parking sensors (connection is on LHS
of vehicle), headlamp washers (use a cable
tie to crimp off the hose to prevent washer
bottle leaking).
