PREPARATION TO VEHICLE

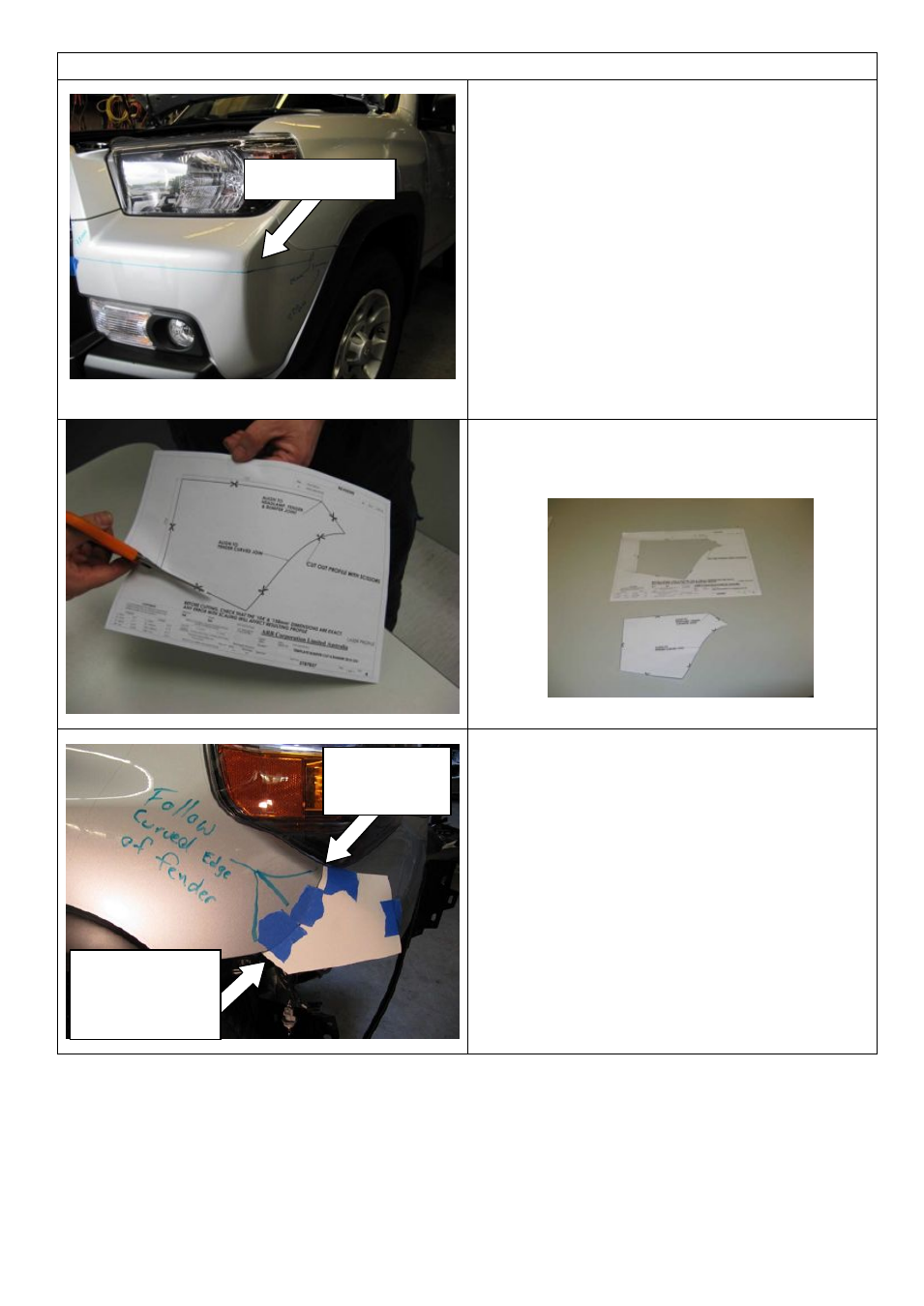

4. Mark a straight, horizontal line joining the
marked cutting points on each end of the
bumper
5. Using scissors accurately cut out the bumper
cutting template along designated bumper
cutting line as shown.
6. Carefully and accurately fit the template to the
RHS of the bumper using the identified
reference points aligning with the join of
bumper, guard and the head lamp outer lower
corner and tape in position. Make sure the
template sits as flat as possible on the
bumper as any misalignment could affect
the final cut profile accuracy on the
vehicle.
7. Repeat for other side of vehicle
Mark cutting line
Headlamp,
bumper and
fender join
Mark cutting line
on this edge,
down to marked
horizontal line
