Last Rev Date: 14/10/2010 Page 14 of 22 Fitting instructions# 3787836
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
PREPARATION TO VEHICLE

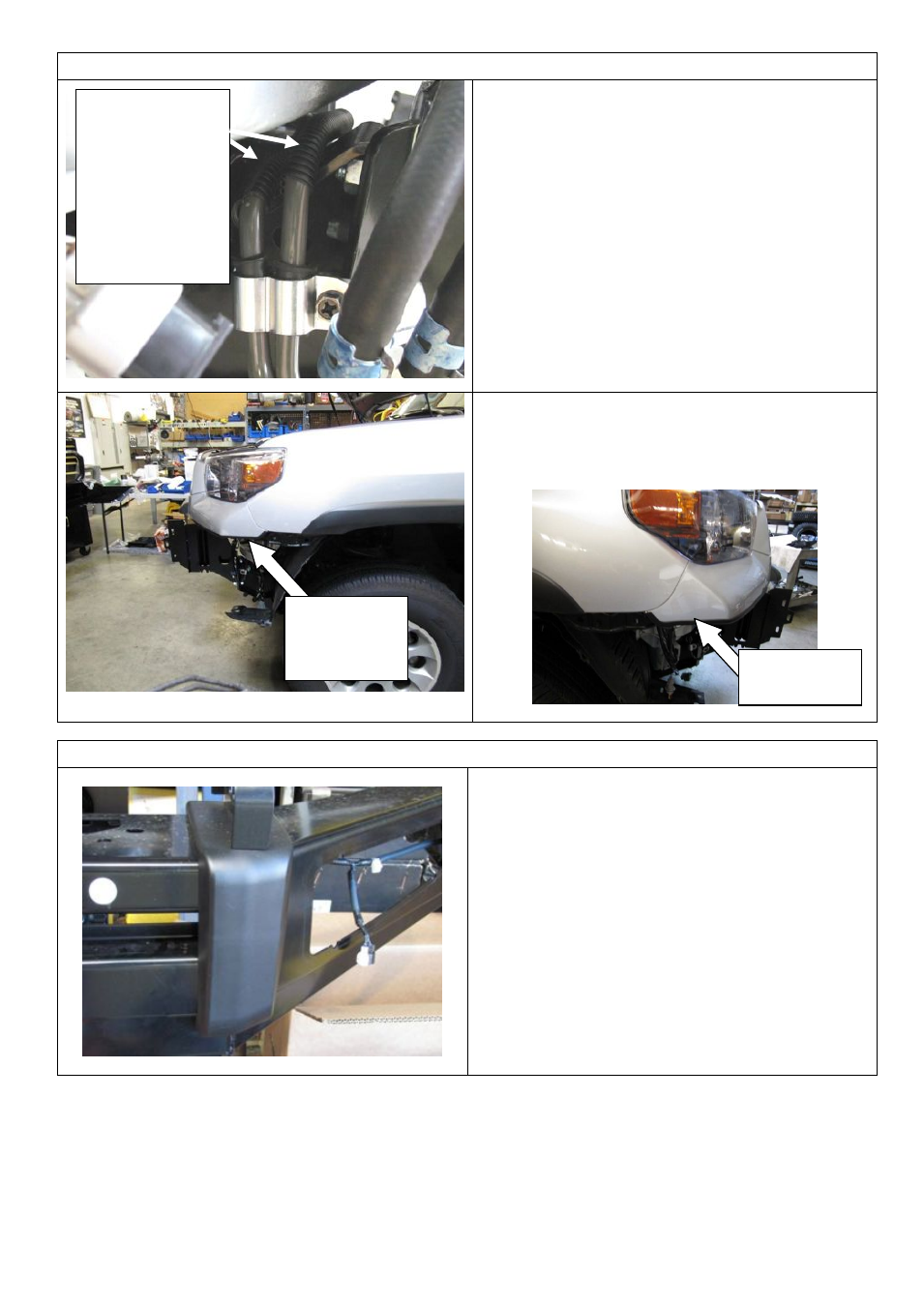

51. Fit the clamps back into position, and bolt to
the vertical flange on the bull bar mount
bracket using a 6mm bolt washer and nut
set. If there is no hole in flange, drill a Dia
8.5 hole 70mm down and 8mm in from the
edge of the flange
52. CRITICAL: Adjust the piping so it clears all
fixed objects and then apply the conduit
over the pipe where it runs above the
mount bracket as shown
53. Fit bumper back onto vehicle and apply pinch
weld to edges as shown
BULL BAR PREPARATION
54. Fit the buffers to either side of the bull bar
using 6 x M6 flange nuts. Do not over tighten.
55. Fit M6 cage nuts for stone tray fixing to lower
pan to the four holes in underside of pan.
NOTE: The nut bodies are inside the bull
bar, MUST BE COMPLETED BEFORE
WINCH RFL IS FITTED.
Side view of
cut bumper
CRITICAL: Fit
conduit along the
pipes as shown,
ensuring piping
is adjusted so it
clears all fixed
objects and
cannot come into
contact with
them in service
Apply pinch
weld on the
outboard cut
line as
shown
Side view of
cut bumper
