WINCH FITMENT ONLY
IF FITTING A WINCH

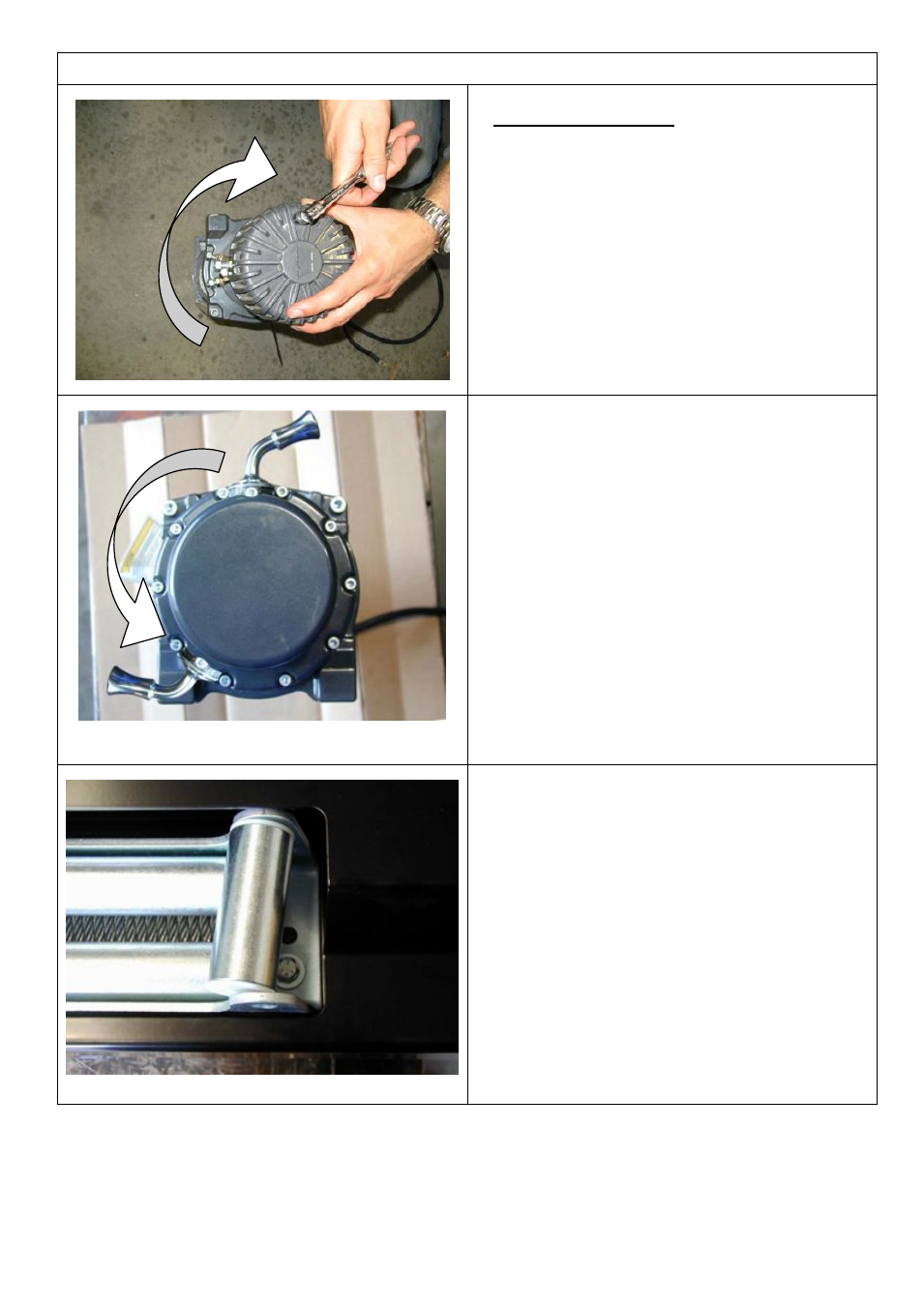

56. Rotate the winch motor 90 degrees as shown
NOTE: Follow the winch manufacturers
instructions regards motor rotation and
drainage requirements
57. Remove the cap head screws retaining the
gearbox to the winch drum. Carefully lift the
gearbox a small amount (5 mm ) and
rotate144 degrees counter clockwise (four
hole spacings) and re-fit the cap screws . This
places the winch handle in the correct
orientation.
58. Lay the winch on a suitable flat surface and
place the bull bar on top so that the wire rope
will feed through from the bottom.
59. 8VLQJWKHWZR´[´ORQJEROWV0IODW
and spring washers, attach the bull bar to the
winch through the top two bolt holes
60. Remove the cir clips from the bottom of the
vertical rollers of the fairlead and push the pin
upwards. Push the vertical rollers inwards on
WKHORZHUHGJHVDVVKRZQDQGXVLQJWZR´
[ô´EROWV0IODWDQGVSULQJZDVKHUV
attach the lower section of the roller fairlead
to the bull bar and winch.
61. Replace the cir clips on the vertical rollers
on both sides.
