BULL BAR FITMENT TO VEHICLE

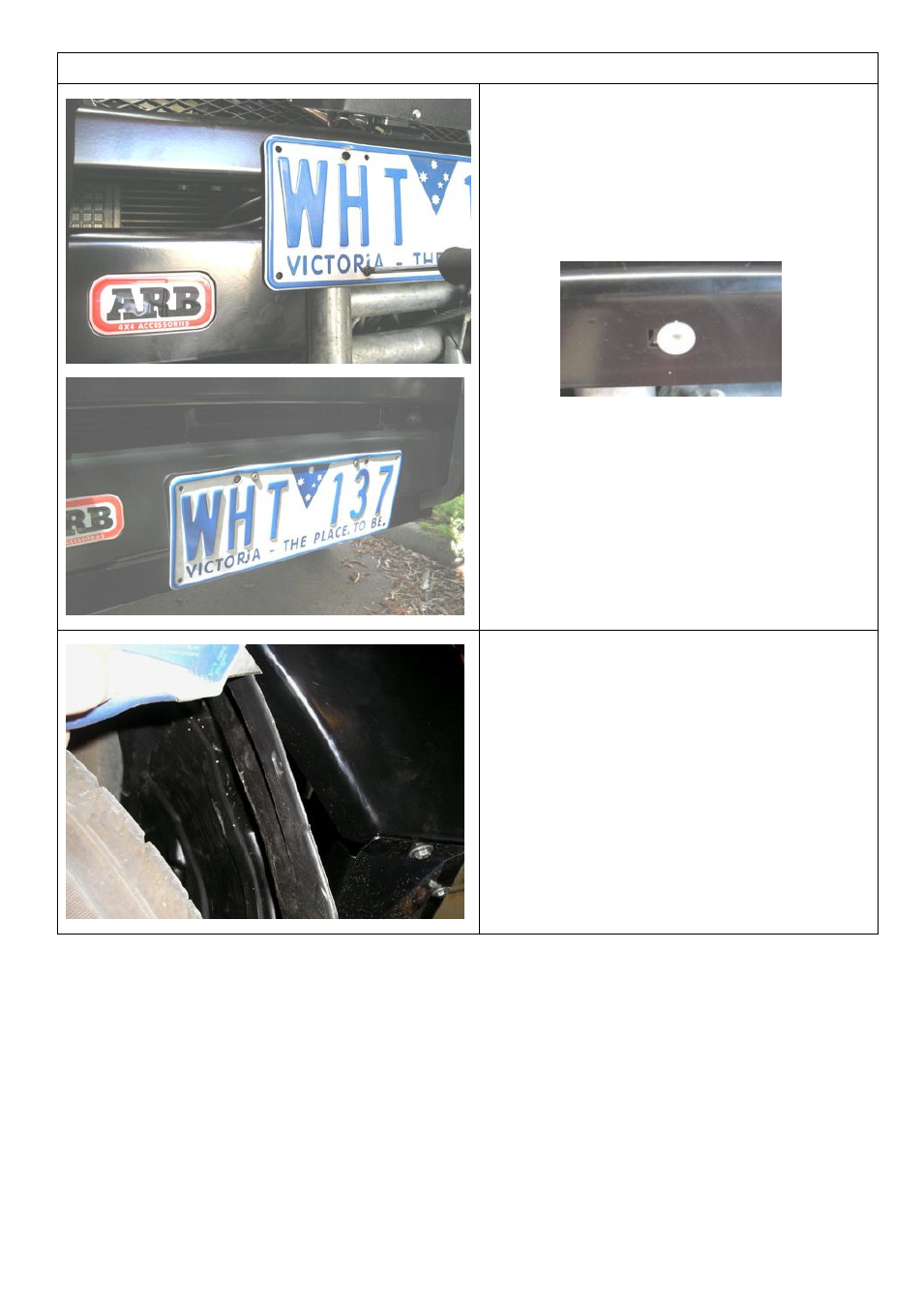

87. The licence plate can now be attached to
the bull bar. Insert the two plastic square
plugs supplied into the two square holes in
the face of the bull bar (note slot allows for
adjustable number plate hole pitch, ensure
grommet flanges fit over the narrow width of
the slot to engage correctly).
88. If winch fitted, position the licence plate as
shown fastening top picture using lower
holes. If winch not fitted use the top row of
holes, licence plate is positioned lower and
covers RFL opening in front of bull bar,
lower picture.
89. Using the two dome head screws supplied
screw into position firmly.
90. If required, trim the outer edge of the fender
liner as shown so that it will clip in behind
the wing with the maximum grab
