ARB 3421520 - Manual (Page 4)

Last Rev Date: 14/10/2010 Page 4 of 22 Fitting instructions# 3787836
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd
MISCELLANEOUS
180302
6191020
3787837
6151234
4581307
4581047
6151132
6821231
16
2
1
2
2
2
2
1
CABLE TIES
PINCH WELD NARROW 400mm LONG
TEMPLATE BUMPER CUT
BOLT M8 x 25 LONG BZ
WASHER FLAT PANEL M8 BZ
WASHER SPRING M8 BZ
NUT FLANGE M8
CONDUIT ID10 @ 500mm

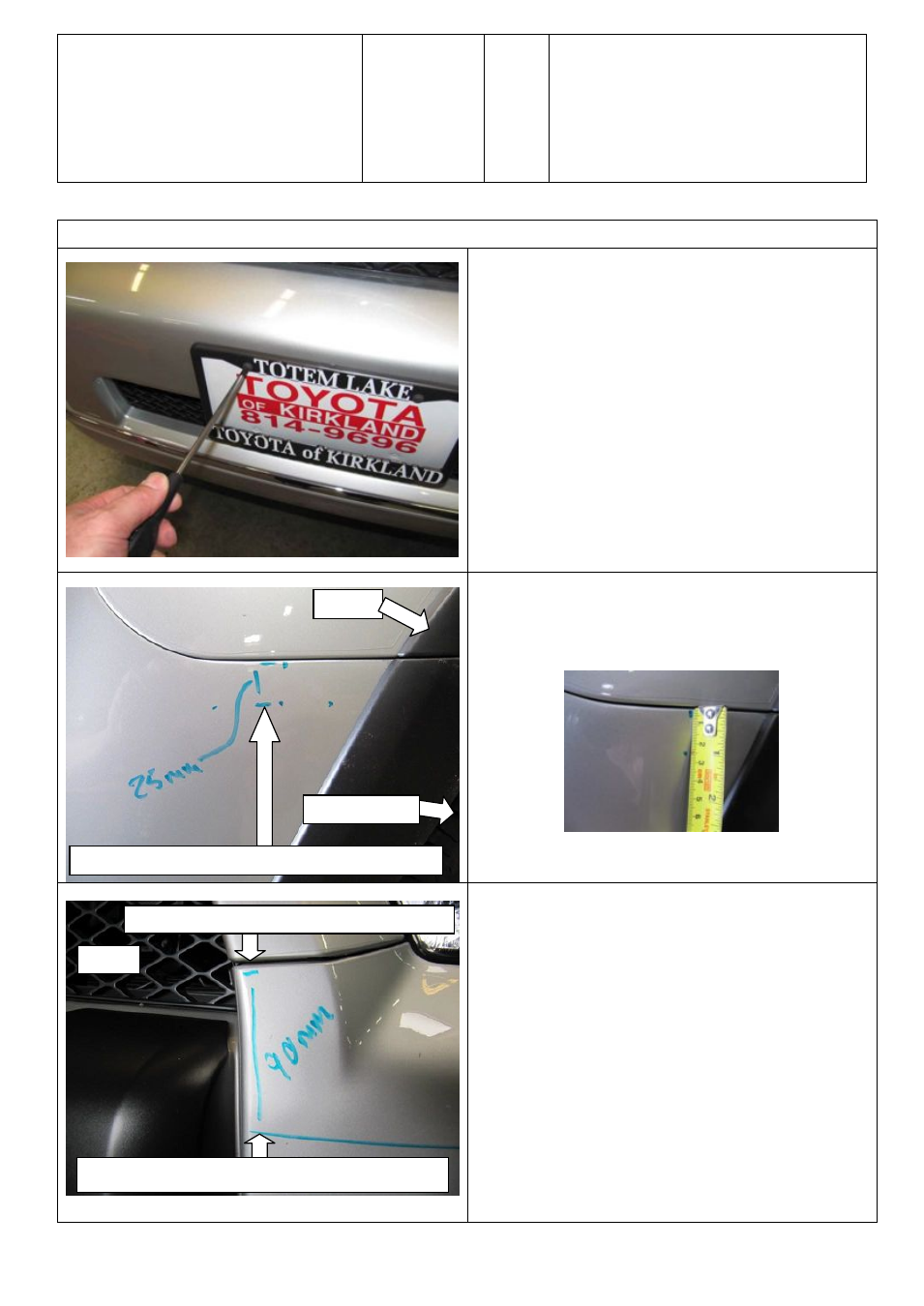

PREPARATION TO VEHICLE
1. Remove number plate
.
2. Using a non permanent marker, measure and
PDUNDSRLQWPP´GRZQIURPWKH
bumper and fender join both sides of vehicle
3. Mark a position for the cutting line at 90mm (3
ò´GRZQIURPEXPSHUWRJULOOHVXUURXQGMRLQ
inboard of headlamp as shown, repeat on
other side of vehicle
Mark cutting line at 25mm down from join
Mark cutting line at 90mm down from join
Join of bumper to grille surround
Wheel arch
Flare
Grill
e
