BULL BAR FITMENT TO VEHICLE

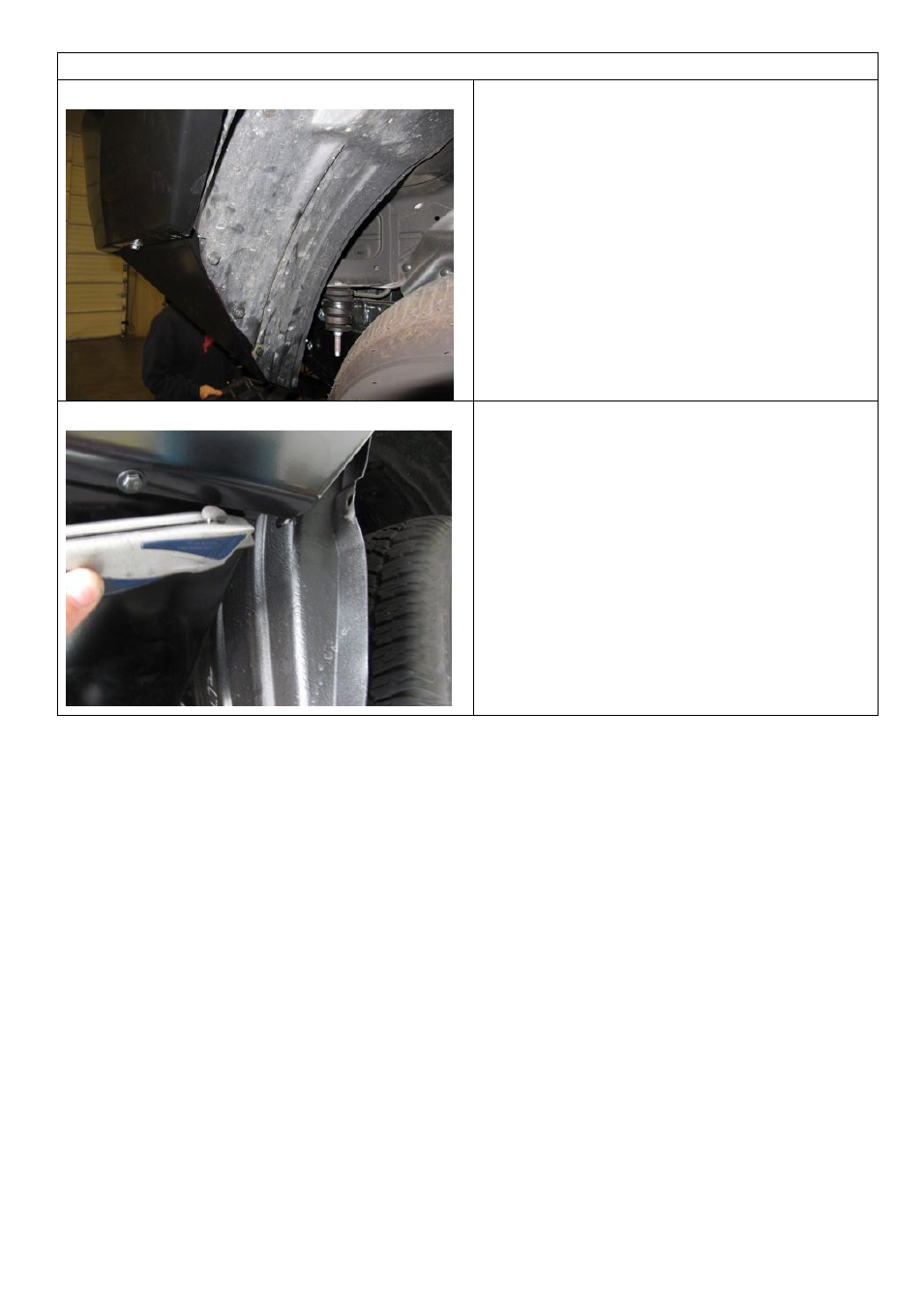

91. Push the outer edge of the liner forward past
the wing return edge so that it snaps in place
92. Drill Dia 7 holes in fender liner co-incident
with the holes in the return flange and
captive nuts in the wing under panels
93. Fasten with M6 bolt and washer sets
94. Carefully trim off the bottom of the guard
liner flush with the wing under panel
ONCE BAR IS FITTED:
i Ensure all bolts are tensioned correctly
i All wiring is clear of sharp edges or moving surfaces and secured
properly
i Piping is secured well away from sharp or moving components
i Check operation of winch if fitted
i Check all wiring and connections to turn signal lamps, sensors,
headlamp washers etc. are functioning correctly
