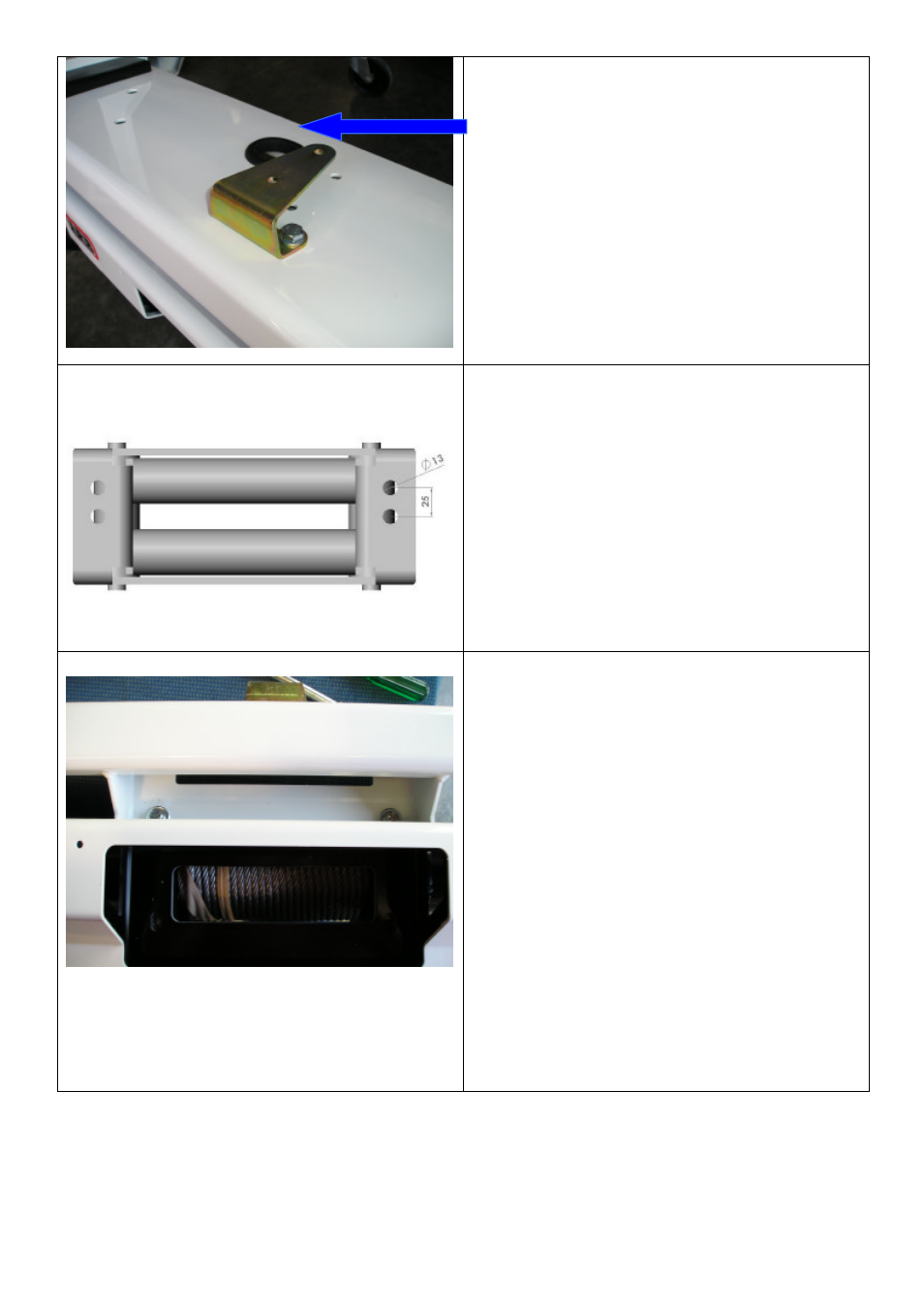

22. Bolt control box bracket to top of bar
using 8mm hardware.
23. Fit rubber grommet to RHS of bar.
24. Drill two new 13mm holes in the roller
fairlead provided in the kit, as shown on
the adjacent picture.
25. Place the winch on a table with the feet
facing up and using an assistant;
carefully lift the bull bar on top of the
winch.
26. Attach the winch to the bull bar using
two 1 ½” x 3/8” bolts from the winch
fitting kit, 3/8” spring washer and 3/8”
flat washers in the top holes.
