Photo is of rhs of vehicle – ARB 3423030 User Manual
Page 3
01-09-06
Page 3 of 15
3783174
Bracket Control Box to
Bull Bar
3751564
6151021
4581044
6151132
1
2
2
2
Bracket control box mount
Bolt M8 x 20mm
Washer Flat M8
Nut Flange M8

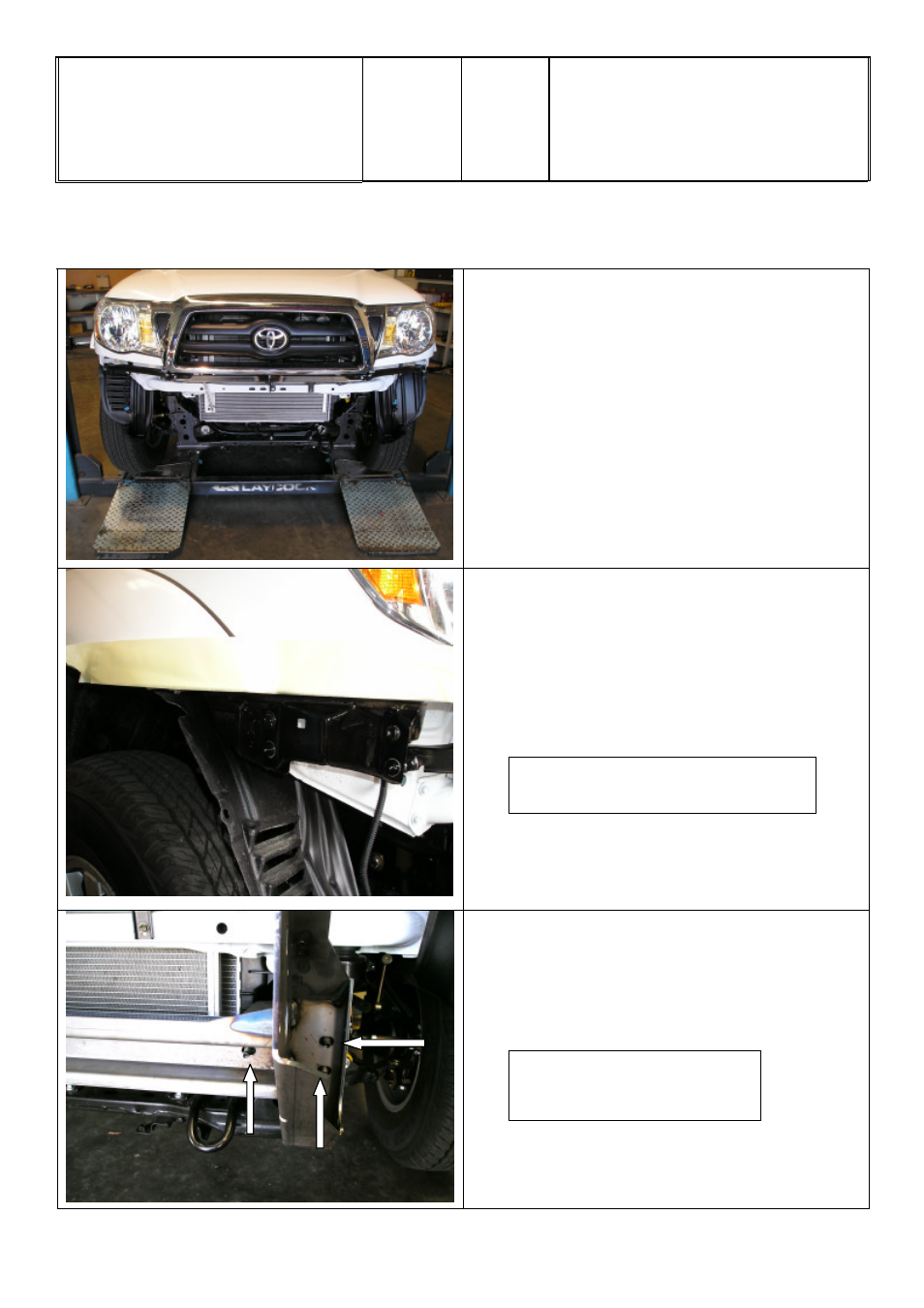

1. Remove front bumper cover from
vehicle.
2. Remove side bumper supports from
both guards.
3. It is recommended that you paint satin
black under guard line.
4. Fit bracket mounting assembly to front
of vehicle using the 6 x 10mm studs to
locate on.
Photo is of RHS of vehicle.
ARROWS INDICATE STUDS
ON LHS OF VEHICLE
