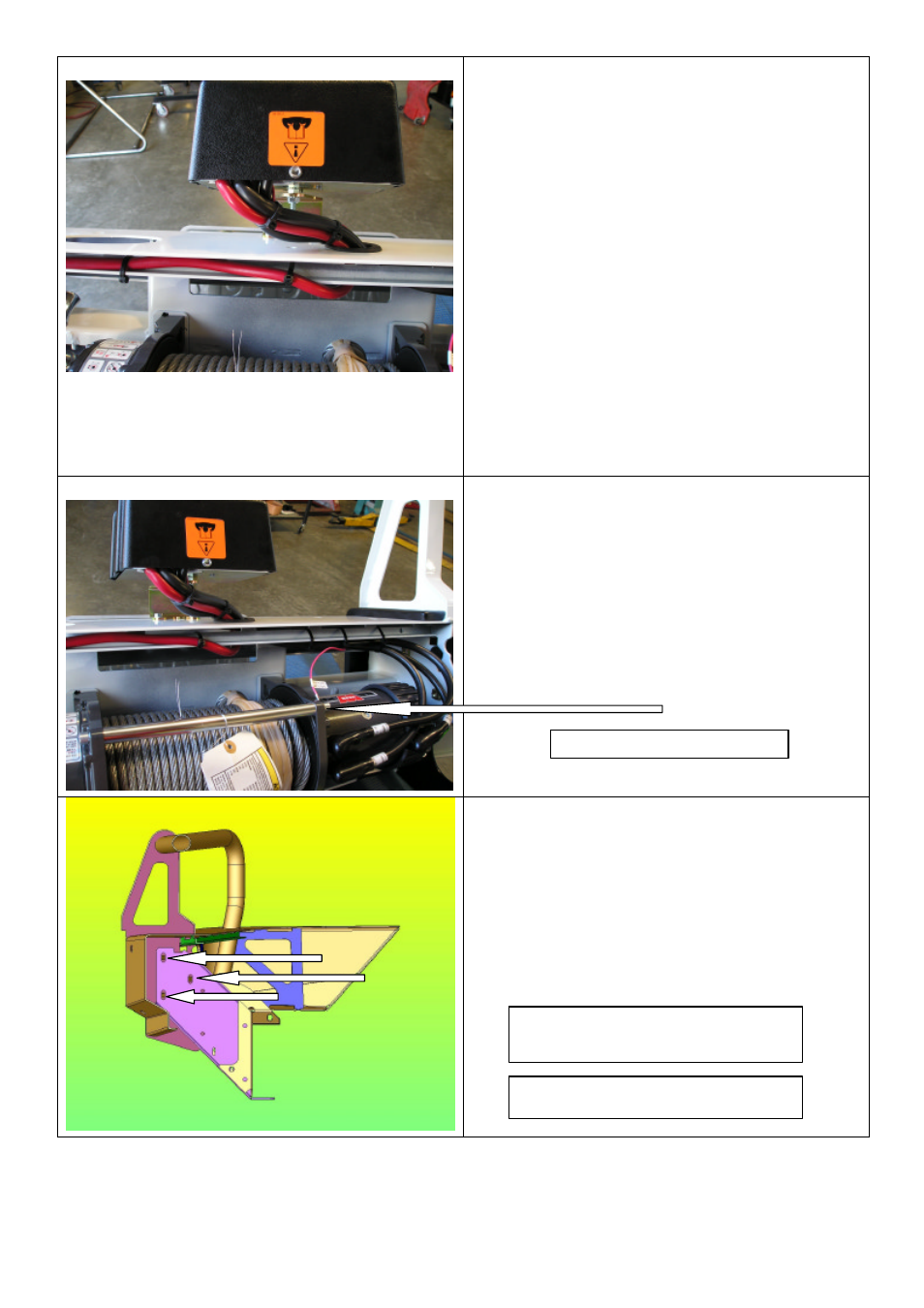

31. Fit control box to control box bracket and
pass cables through rubber grommet.
32. Fit all 3 cables to their correct terminals
and tighten. Refer to Warn installation
instruction when wiring up winch. Fit
plastic boots over terminals. Cable tie
cables to brace as per photo to clear of
all moving parts. Fit ground wire under
winch tie rod. ( See Photo )
33. With the help of a friend, lift bull bar on
to chassis mount bracket and align holes
with 10mm caged nuts already fitted. ( 3
each side )
34. Secure using M10 x 30mm bolt,M10
spring washer and M10 flat washer.
GROUND WIRE
ARROWS INDICATE WHICH HOLES
TO USE IN SECTION VIEW DRAWING
SECTION VIEW IS LHS OF VEHICLE.
