ARB 3423030 User Manual
Page 12
01-09-06
Page 12 of 15
3783174

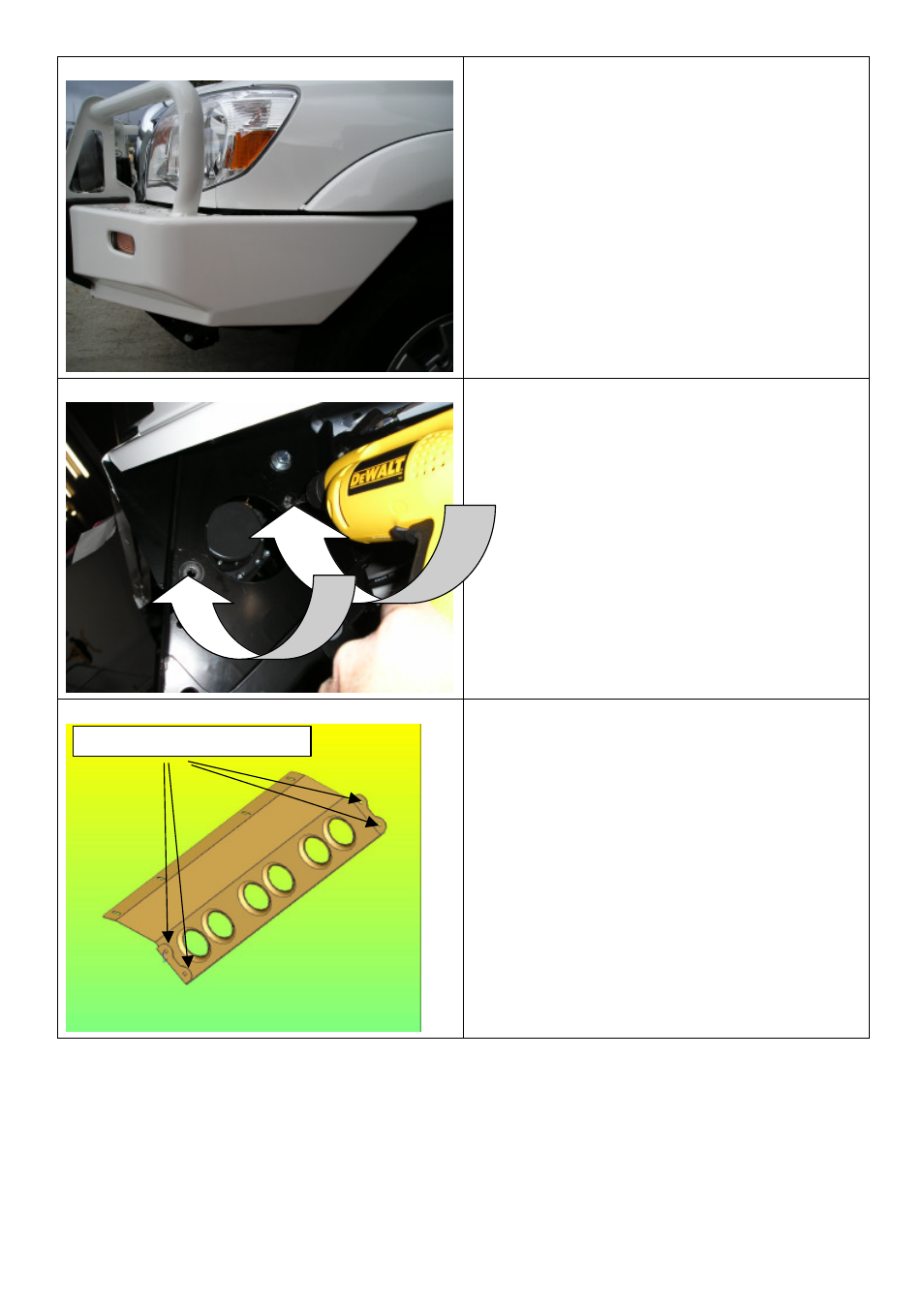

35. Align bull bar so there is a 15mm to
20mm gap around periphery under front
vehicle panels, then tighten all bolts
securely.
36. Finally, using the existing 2 holes as a
template. Drill through using a M10 drill
bit and secure using the balance of the
10mm hardware.
(These bolts are to lock the bull bar to the
chassis mounting bracket )
37. Fit M6 caged nuts to the inside of the
flanges on the splash pan.
6MM CAGED NUTS
