01-09-06 Page 13 of 15 3783174

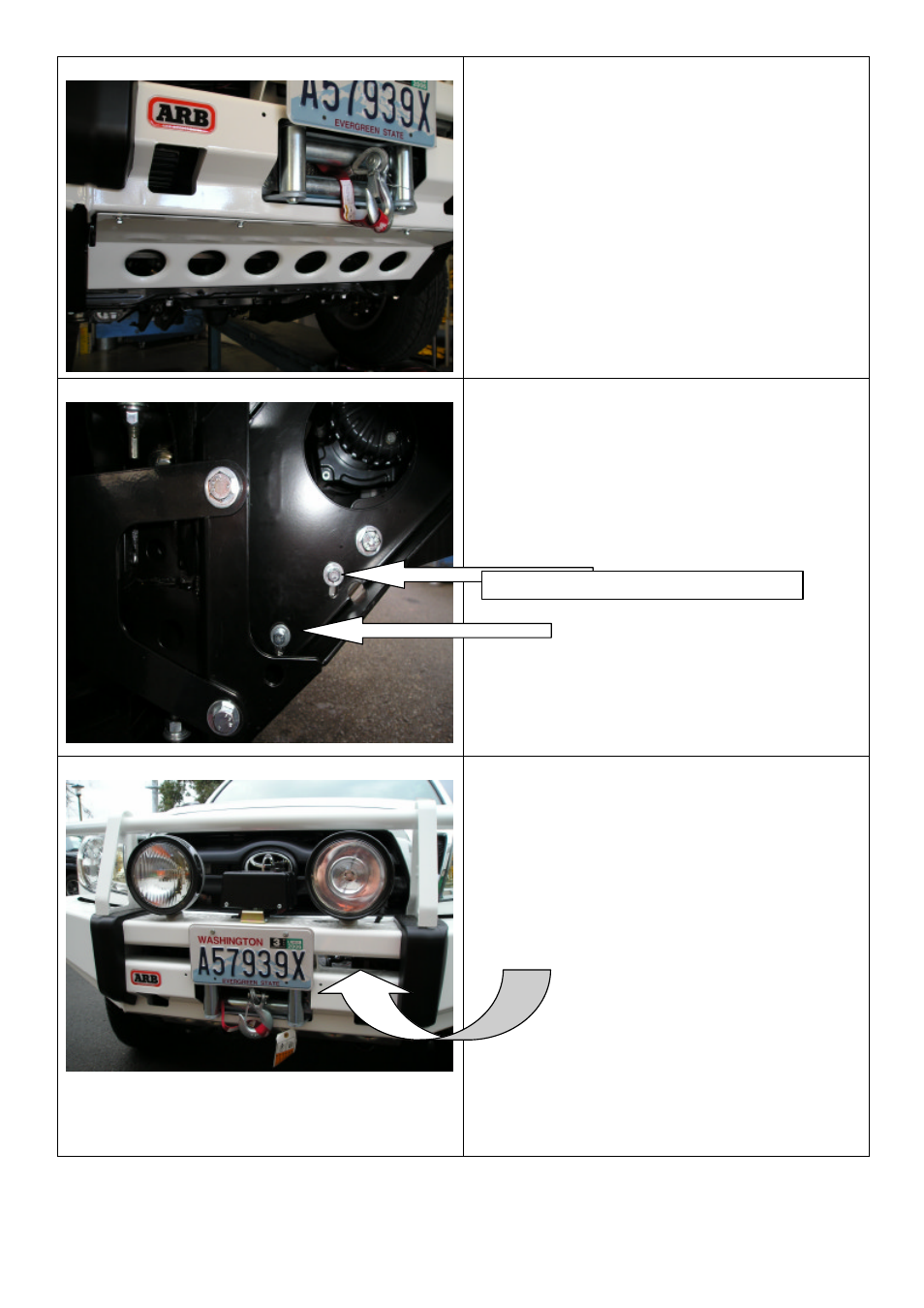

38. Fit splash pan to lower flange of bull bar
using M6 x 20mm bolts,6mm spring
washers and 6mm large flat washers.
Finger tighten only.
39 . Fit splash pan to bull bar sides using
M6 x 20mm bolts,6mm spring washers and
6mm large flat washers. Finger tighten only.
40. When all bolts are fitted tighten
securely
41. Fit number plate to number plate
bracket using M6 hardware.
42. Driving lights can be fitted at this stage
and can be tighten using a ratchet and
socket which fits through the gap as per
arrow
ARROWS INDICATE M6 BOLT POSITION
