ARB 3423030 User Manual
Page 4
01-09-06
Page 4 of 15
3783174

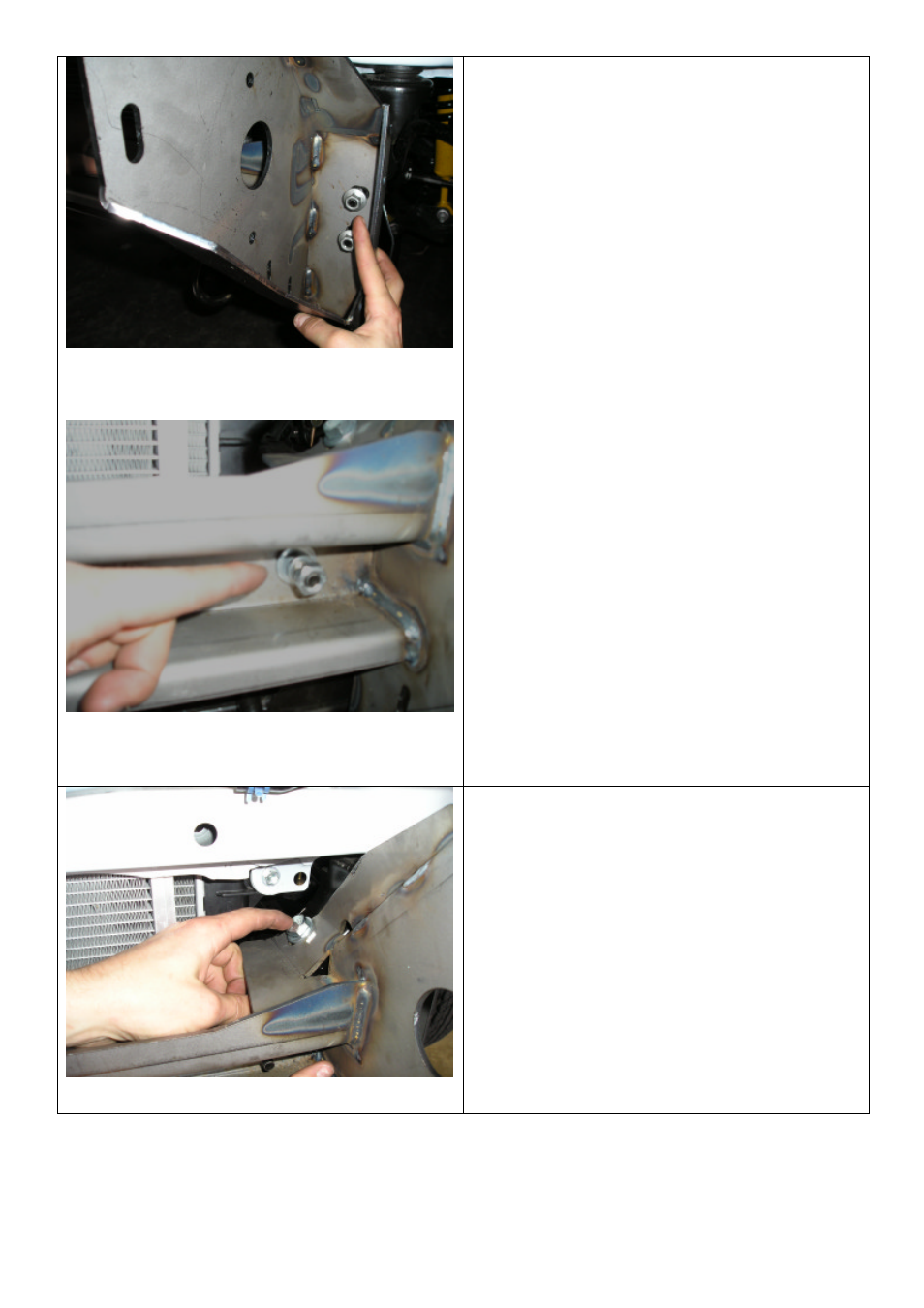

5. Fit original 10mm nuts to the outside
fixing points . See Photo:
6. Fit 10mm x 1.25mm nuts ( fine thread)
spring washers and flat washers ( from
bull bar bolt kit ) to both the centre
studs. See Photo:
7. Fit 12 x 35mm x 1.25 (fine thread)
bolt,12mm flat washer through top
rearward bracket passing through body
mount.
See Photo:
