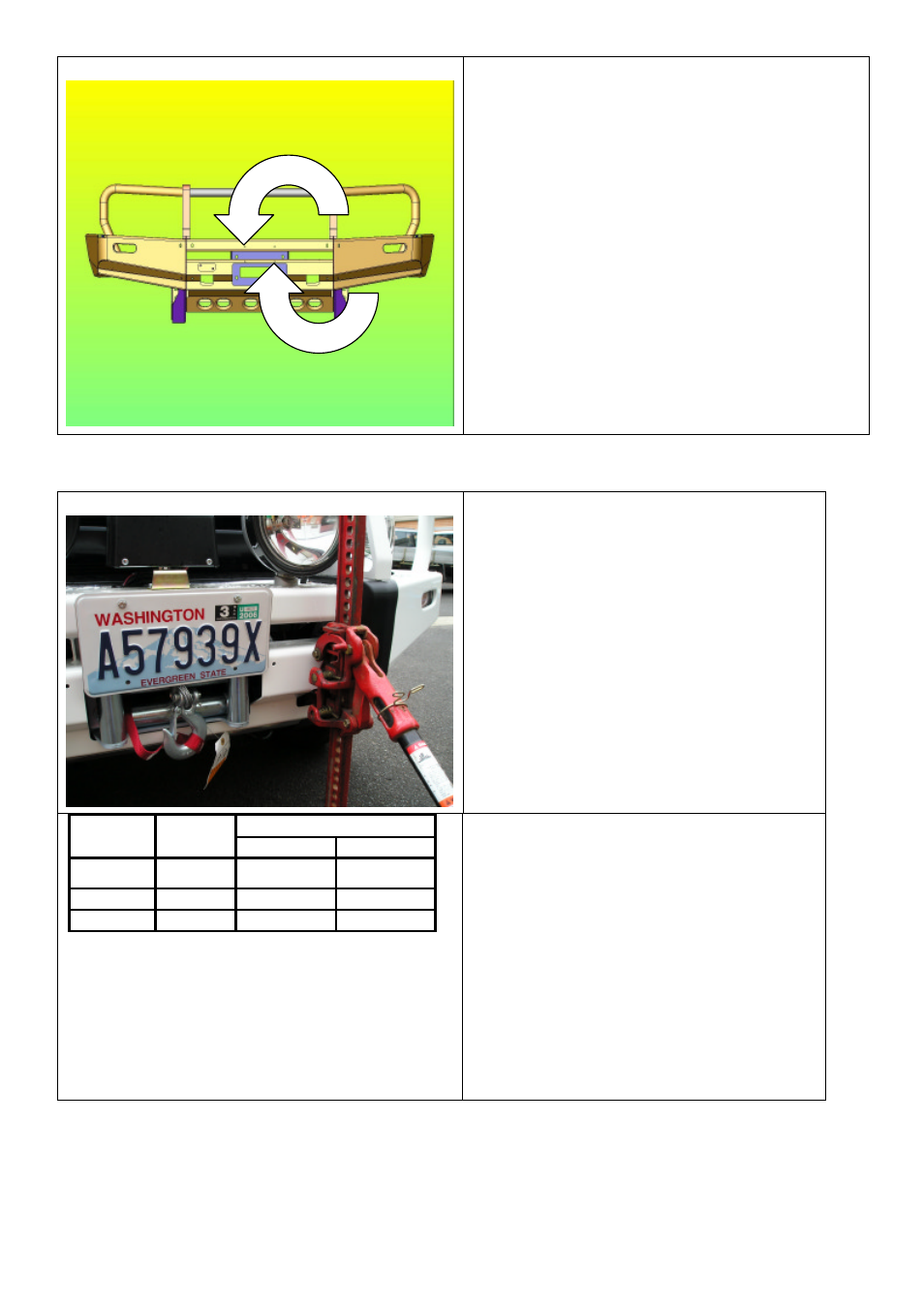

43. There is two positions for the number
plate to be fitted to the bull bar.
44. Top arrow is position to bolt number
plate for a winch bar.
45. Lower arrow is position to bolt number
plate for a non winch bar.
46. There is a provision on both sides
of bar for a HiLift to be used.
VEHICLE COMBINATION LAMP FUNCTION INDICATOR
HARNESS
RIGHT LEFT
INDICATOR GREEN GREEN /
YELLOW
GREEN / BLACK
EARTH BLACK WHITE/BLACK WHITE/BLACK
PARK LAMP RED GREEN GREEN
47. Finally fit indicator/parker light
loom extension to light and wire to
vehicle main light loom using scotch
locks as per table.
