01-09-06 Page 8 of 15 3783174

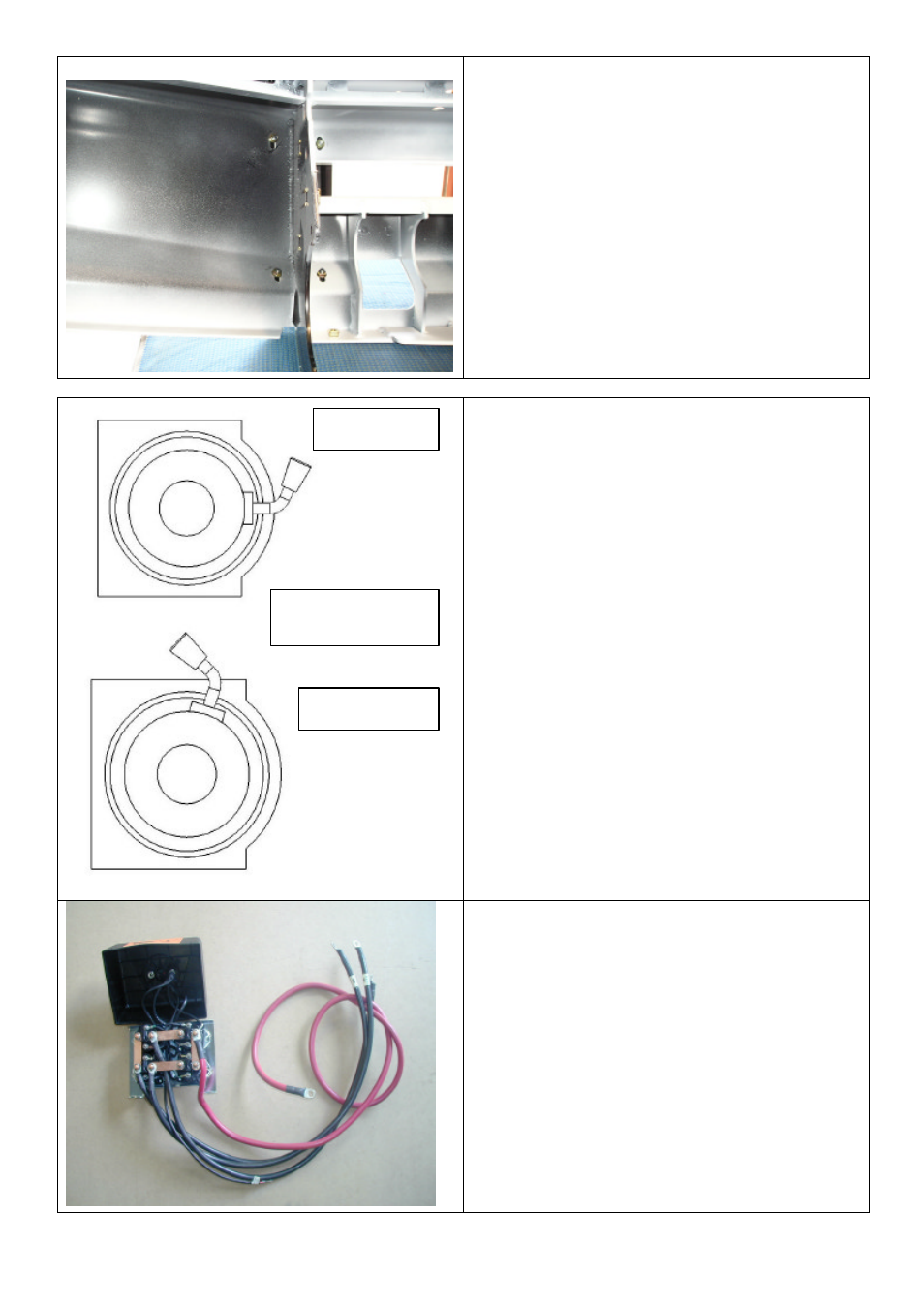

18. Fit buffers to bar and secure from inside
of bull bar using 6mm flange nuts. Six to
each side of vehicle.
DO NOT OVER TIGHTEN
TO FIT A WINCH BAR
19 . To fit an 8/9/9.5/000lb winch, rotate
gearbox 72° counterclockwise.
Stand winch upright and undo the capped
head screws and by lifting the gearbox only
a couple of millimetres, rotate the gearbox.
Once in position, refit all screws and
tighten firmly.
WARNING: Do not lift gearbox more
than a couple of millimeters.
20. Remove the cover from the control box.
21. Replace the three main power cables that
go from winch to control box. Make sure that
you identify the colour codes on the new
cables before closing control box cover.
This must be done for whatever winch is to
be fitted to the bull bar.
ORIGINAL
ROTATED
VIEWED FROM
LHS OF VEHICLE
