EZSwitchSetup Administrator’s Guide 37
53-1002157-01
Managing devices
3
The table can be sorted by device type, port number, or vendor. You can refine sorting by using
the Ctrl key while selecting column headers. For example, if hold down the Ctrl key and select
Device Type and Port# shows port numbers associated with device types (
Figure 34 ).

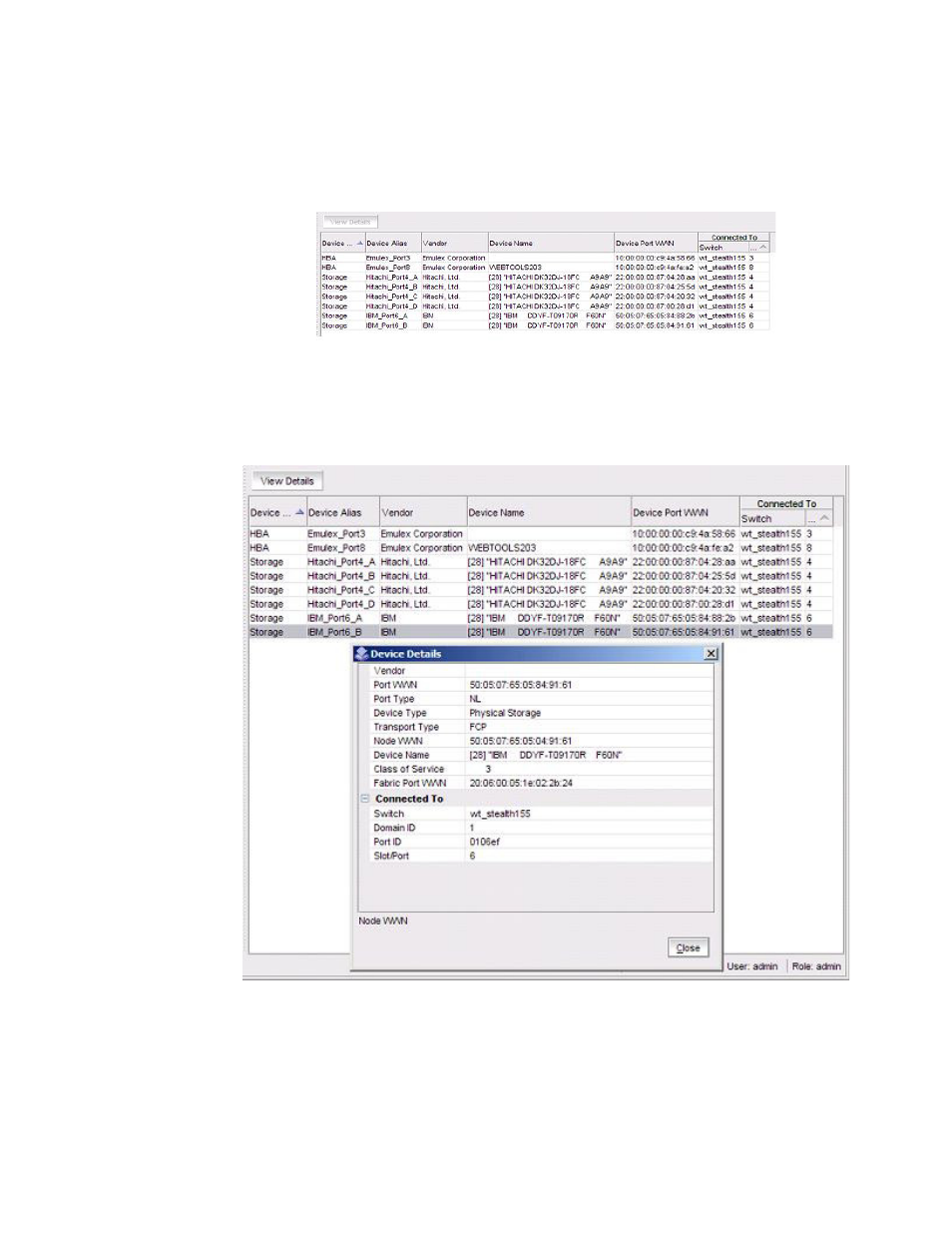

FIGURE 34 Device table sorting example
2. Select a row in the table to display additional information about the device.
3. Click View Details located at the top of the page. Figure 35 shows a Device Details example.
FIGURE 35 Detailed Device information
